Technical Specifications; Installation - Omcan SG101 Instruction Manual

1

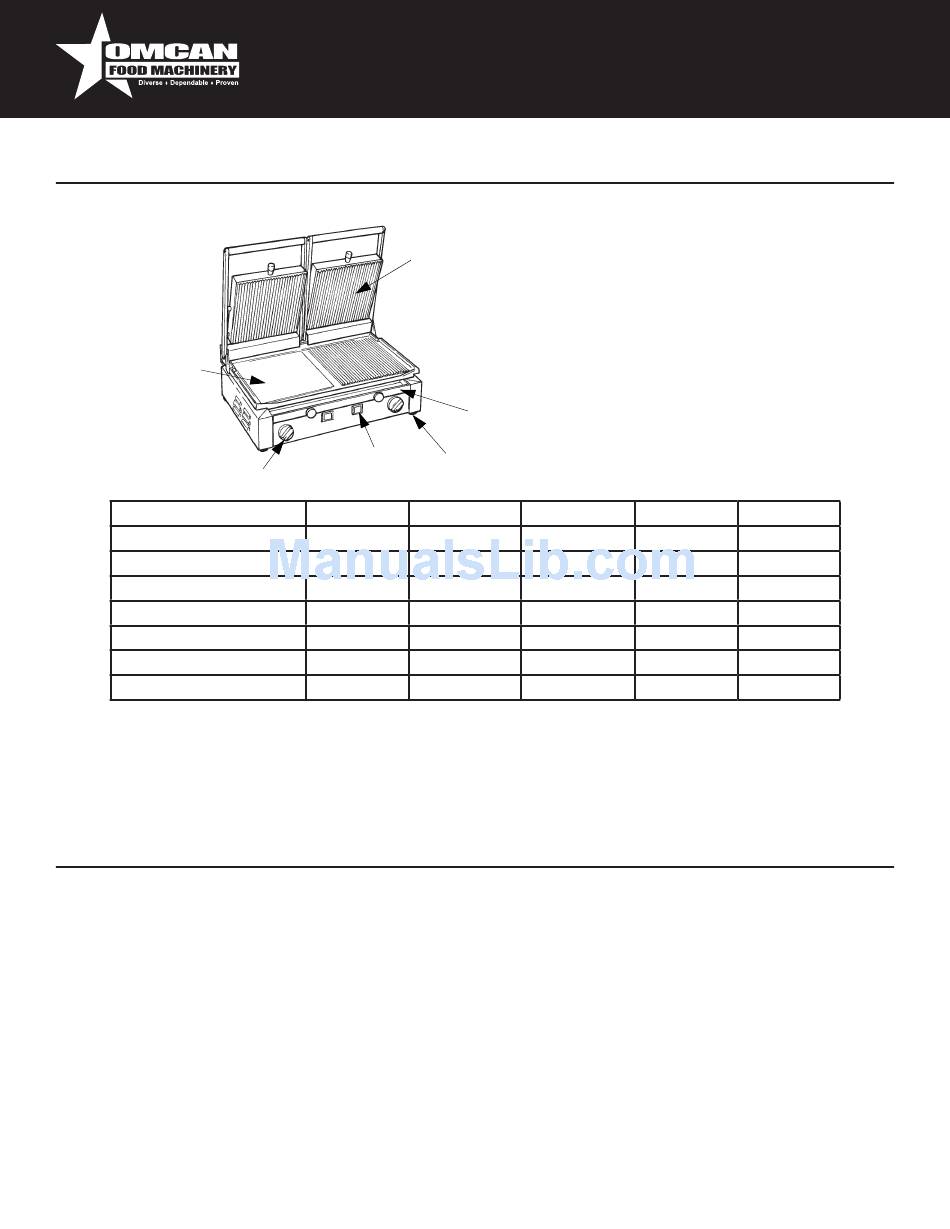

Fig. 1: Main
components
Item Number
Length
Width
Height
Cooking Area
Supply
Weight Net/Gross
Thermostat Control
WARNING: The electrical characteristics for which the appliance is designed are indicated on the
reference plate applied on the side of the machine; check to make sure it corresponds with the
electrical supply before connecting.
ASSEMBLY
The package of the grillers includes (see Fig. 2:):
a. Cardboard box and internal protections;
b. The machine;
c. This manual;
d. Scraper or brush (f) in accordance with the model;
e. EC conformity declaration.

Technical Specifications

6
3
2
11375 11376
10.25" 10.25"
17.12" 13"
19.75" 17"
10" x 9" 10" x 9"
110V/60/1 110V/60/1
40 / 43 lbs. 35 / 38 lbs.
570°F 570°F
MAIN COMPONENTS
1. Lower Cooking Grill
2. Thermostat
3. Pilot Lamp
4. Feet
5. Collection Tray
5
6. Upper Cooking Grill
4
11377
15"
17.12"
19.75"
10" x 14"
110V/60/1
53 / 55 lbs.
570°F
5
11378 11380
17.12" 20.25"
20.25" 12.75"
19.75" 19.75"
10" x 19" 10" x 19"
220V/60/1 220V/60/1
70 / 75 lbs. 70 / 75 lbs.
570°F 570°F

Installation
