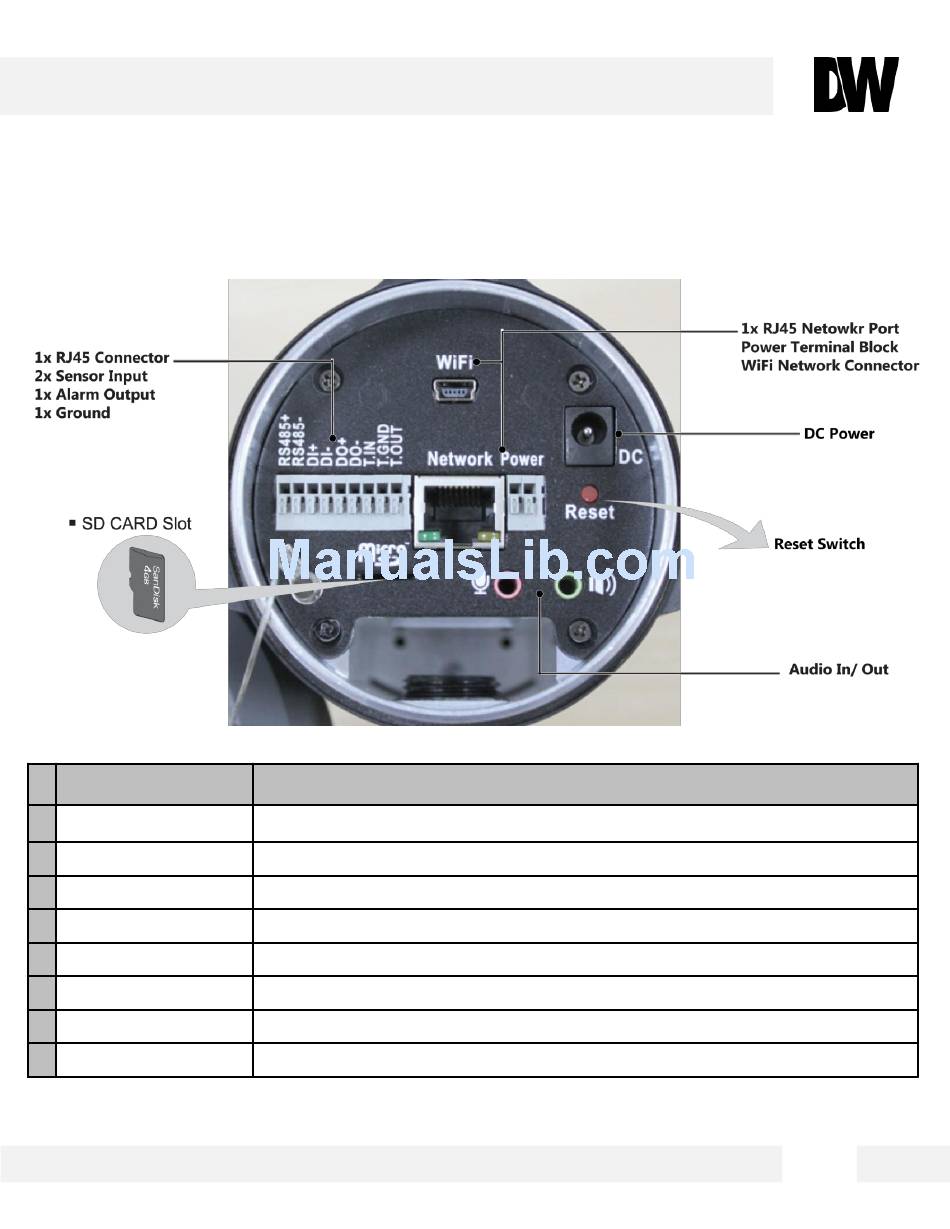

PARTS & DESCRIPTIONS*
Camera Part
1 RS485 +/-
2 Sensor Inputs +/-
3 Alarm Output +/-
4 SD Card Slot
5 Network Port
6 Audio In/ Out
7 Power Ports
8 Reset Switch
Description
RS485 connections for remote camera control
Connect up to 2 sensor inputs to the camera
Connect 1 Alarm output control from the camera
Micro SD card slot for local storage (not included)
RJ45 Cable Connection Port
Built-in Microphone and Audio Amplifier output connector
DC Power port and AC + DC Cable power connectors available
Reset the camera to factory default values
6
