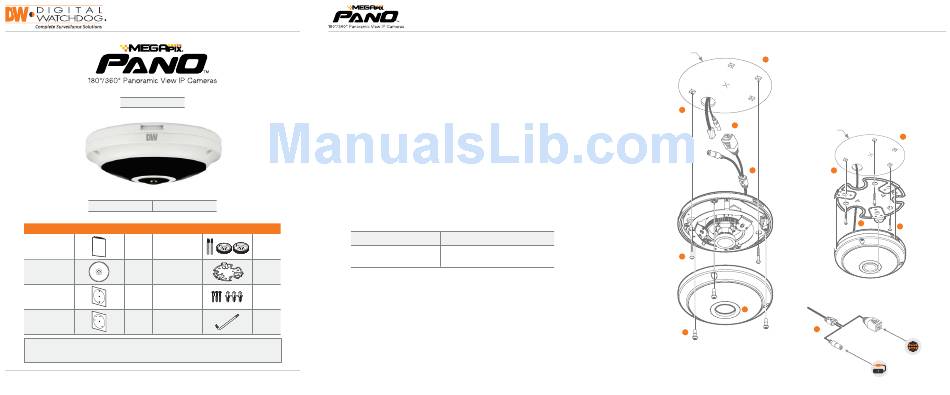

DW PANO DWC-PF5M1TIR Quick Start Manual

DWC-PF5M1TIR
Username: admin Password: admin
WHAT'S IN THE BOX
Mount Bolt & Nut
QSG Manual 1 Set
– 2pcs
Manual CD 1 Set Mount Plate
Template Sheet
Screw & Plastic
for installing by 1 Set
Anchor – 3pcs
Bolt & Nut
Template Sheet
1 Set Torx Wrench
for installing by Plate
Attention: This document is intended to serve as a quick reference page for initial set-up.
It is recommended that the user read the entire instruction manual for complete and proper camera usage.
Tel: 866-446-3595 / 813-888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday
Quick Start Guide
Step 1 – PREPARING TO MOUNT THE CAMERA
1.
The mounting surface must bear five times the weight of your camera.
2.
Do not let the cables get caught in improper places or the electric line cover to be damaged.
This may cause a breakdown or fire.
3.
For the installation process, remove the dome cover and rubber gasket from the camera module
by loosening the screw on the side of the dome. Use the wrench provided with the camera.
4.
Using the mounting template sheet or the camera itself, mark and drill the necessary holes in
the wall or ceiling.
Step 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
5.
Pass the wires through the mount bracket and make all necessary connections.
a.
NETWORK CONNECTIONS – If you are using a PoE Switch, connect the camera using an Ethernet
cable for both data and power.
b.
NETWORK CONNECTIONS – If you are using a non-PoE switch, connect the camera to the switch
using an Ethernet cable for data transmission and use a power adapter to power the camera.
Power Requirements
1 Set
12V DC
PoE [IEEE802.3at, Class 3]
1 Set
Step 3 – INSTALLING THE CAMERA
1 Set
6.
Once all cables are connected, secure the camera to the mounting surface using the included screws.
1 Set 7.
Re-attach the camera's gasket ring and dome to the camera module by aligning the screw holes.
8.
The camera includes a sensor at the camera's module. For the sensor to function properly, the camera's
dome includes a special hole for the sensor.
9.
When assembling the camera together, please make sure the sensor hole in the camera's dome is
positioned right on top of the sensor on the camera's module.
digital-watchdog.com
Power Consumption
12VDC: 6W (LED On)
PoE: 7W
Soft Surface Installation
Template
Sheet
1
For soft installation surfaces, use the included
metal mount plate. Fix the mount plate on the
mounting surface using the included screws.
Then, press the bottom case onto the mount
plate. The three bezels on the case will align
and snap lock onto the plate.
4
5
Template
Sheet
2 4
6
7
5
3
Quick Start Guide
1
2
6
NETWORK
CONNECTION
POWER
