ViewZ vz8rtc Instruction Manual

8/8.4-inch value tft-lcd monitor

Advertisement

Quick Links

8/8.4-INCH VALUE
TFT-LCD MONITOR
INSTRUCTION MANUAL
Please read this manual thoroughly before use, and keep it handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the vz8rtc and is the answer not in the manual?

Questions and answers

Summary of Contents for ViewZ vz8rtc

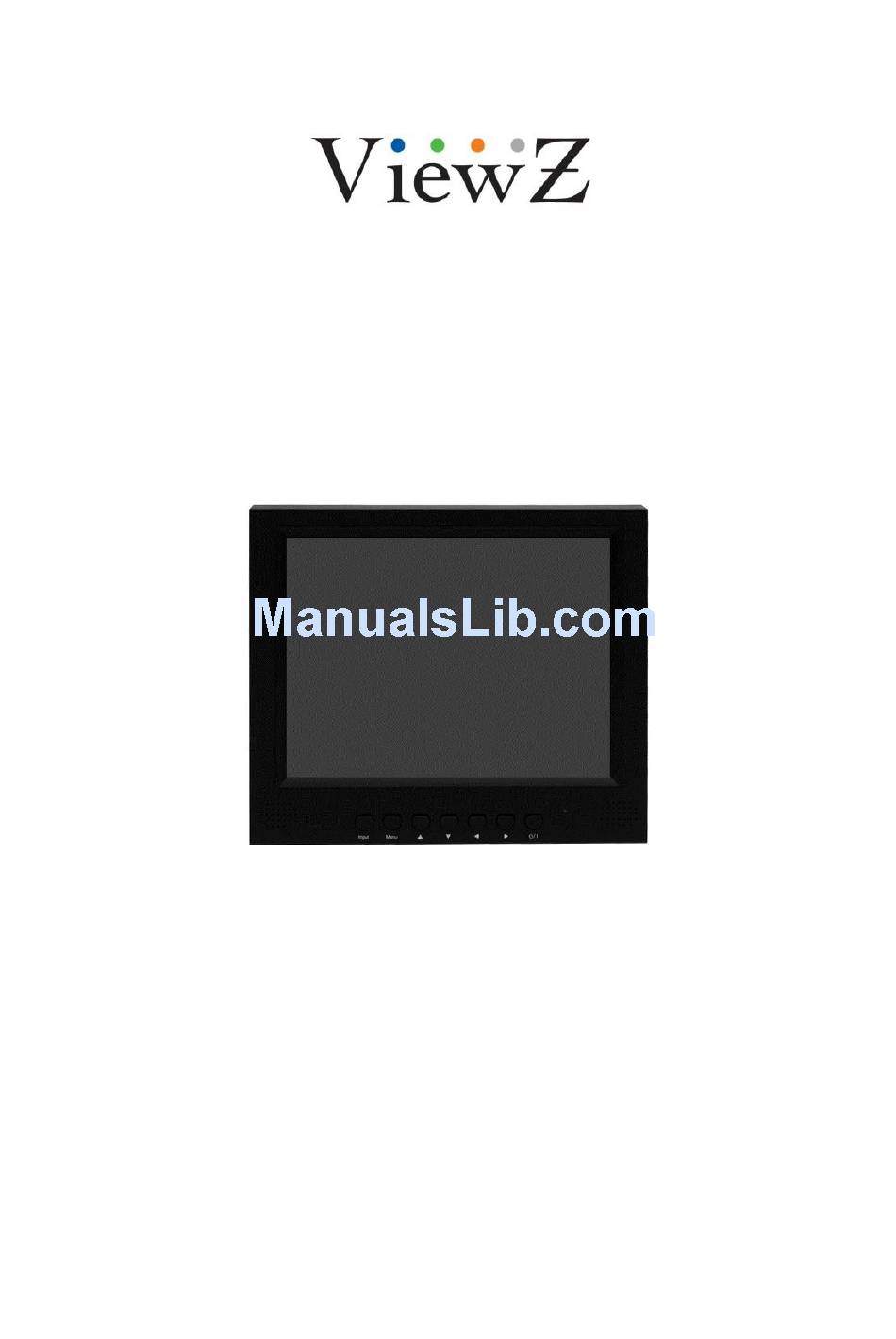

  • Page 1 8/8.4-INCH VALUE TFT-LCD MONITOR INSTRUCTION MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
  • Page 3 SAFETY INSTRUCTION ………………………………………………………………….. 2 ~ 3 CAUTIONS ………………………………………………………………......4 ~ 5 FCC RF INTERFERENCE STATEMENT ……………………………......CONNECTING WITH EXTERNAL EQUIPMENT ………………………………………. CONTROLS AND FUNCTIONS ………………………………………………………….. 8 ~ 25 MOUNTING GUIDE ……………………………………………………………………….. 26 ~ 27 D-SUB CONNECTOR PIN ASSIGNMENTS ……………………………………………. POWER MANAGEMENT …………………………………………………………………. SPECIFICATIONS ………………………………………………………………………….
  • Page 4: Important Safety Instruction

    Important Safety Instruction 1. Read these instructions. 2. Keep these Instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 5 - The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed no the apparatus. - Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation. “WARNING - To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.” “The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.”...
  • Page 6 CAUTION The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible. ATTENTIONN Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à...
  • Page 7 "Rack Mount Instructions - The following or similar rack-mount instructions are included with the installation instructions: A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.
  • Page 8: Doc Compliance Notice

    NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 9: Trigger Input

    A. BACK 1. TRIGGER INPUT Sensor Signal Input 2. AUDIO IN 3.5Φ STEREO IN 3. S-VIDEO IN Y/C separated signal input 4. AV1 IN Composite signal Input for AV1 5. AV1 OUT Video looping output for AV1 6. AV2 IN Composite signal Input for AV2 7.
  • Page 10: Power On/Off

    B. FRONT 1. INPUT Select input source. 2. MENU Activates and exits the On Screen Display. This button can also be used to move previous menu or status. OSD MENU(MAIN) : Input Source, Screen, Audio, OSD, Color, Utility, Exit. 3/4. ▲ / ▼ This button allows user to enter the sub-menu of the activated function ▼...
  • Page 11: Osd Menu Description

    OSD Menu Description A: CUSTOM MENU (For AV1, AV2 & S-Video Input) 1) Press the MENU button and then press the up(▲) or down(▼) button to select the Custom. 2) Press the up(▲) or down(▼) button to select the sub menu. 3) Press the left(◀) or right(▶) button to adjust the picture setting.
  • Page 12 B. Picture / Sound Menu (For AV1, AV2 & S-Video) 1. Picture Mode 1) Press the MENU button and then press the up(▲) or down(▼) button to select the Picture / Sound. 2) Press the right(▶) or INPUT button. 3) Press the up(▲) or down(▼) button to select the Picture Mode. 4) Press the right(▶) or INPUT button.
  • Page 13 3. Mute 1) Press the up(▲) or down(▼) button to select the Mute. 2) Press the right(▶) or INPUT button. 3) Press the up(▲) or down(▼) button to select the On or Off. 4) Press the MENU button to save. 4.
  • Page 14 5. Size 1) Press the up(▲) or down(▼) button to select the Size 2) Press the right(▶) or INPUT button. 3) Press the up(▲) or down(▼) button to select the Size option. 4) Press the MENU button to save. 6. NR 1) Press the up(▲) or down(▼) button to select the NR.
  • Page 15 7. 3D Comb 1) Press the up(▲) or down(▼) button to select the 3D Comb. 2) Press the right(▶) or INPUT button. 3) Press the up(▲) or down(▼) button to select the On or Off. 4) Press the MENU button to save. 8.
  • Page 16 B. Picture / Sound Menu (For PC Input) 1. Picture Mode 1) Press the MENU button and then press the up(▲) or down(▼) button to select the Picture/Sound. 2) Press the right(▶) or INPUT button. 3) Press the up(▲) or down(▼) button to select the Picture Mode. 4) Press the right(▶) or INPUT button.
  • Page 17 3) Press the left(▶) or INPUT button again. 4) Press the up(▲) or down(▼) button to select the Color Tone option. 5) Press the MENU button to save. 2-2. Color Tone (Custom) 1) Press the up(▲) or down(▼) button to select the Custom in the Color Tone. 2) Press the Menu button to save.
  • Page 18 3) Press the up(▲) or down(▼) button to select the Red(R), Green(G) or Blue(B). 4) Press the left(◀) or right(▶) button to adjust color density. 5) Press the MENU button to save. Input 4. PC control (Only PC 1) Press the up(▲) or down(▼) button to select the PC. 2) Press the right(▶) or INPUT button.
  • Page 19: Setup Menu

    C. SETUP MENU 1) Press the MENU button and then press the up(▲) or down(▼) button to select the Setup. 1. Reset 1) Press the right(▶) or INPUT button 2) Press the right(▶) or INPUT button again. 3) Press INPUT button to execute the reset. Reset: All settings go to the factory initialization.
  • Page 20 2. Language 1) Press the up(▲) or down(▼) button to select the Language. 2) Press the right(▶) or INPUT button. 3) Press the up(▲) or down(▼) button to select language. 4) Press the MENU button to save. 3. OSD Tone 1) Press the up(▲) or down(▼) button to select the OSD Tone.
  • Page 21 4. Blue Screen 1) Press the up(▲) or down(▼) button to select the Blue Screen. 2) Press the right(▶) or INPUT button. 3) Press the up(▲) or down(▼) button to select the On or Off. 4) Press the MENU button to save. 5.
  • Page 22 6. Trigger 1) Press the up(▲) or down(▼) button to select the Trigger. 2) Press the right(▶) or INPUT button. 6-1. Trigger Enable 1) Press the up(▲) or down(▼) button to select the Trigger Enable. 2) Press the right(▶) or INPUT button. 3) Press the up(▲) or down(▼) button to select the On or Off.
  • Page 23 6-2. Trigger Input 1) Press the up(▲) or down(▼) button to select the Trigger Input . 2) Press the right(▶) or INPUT button. 3) Press the up(▲) or down(▼) button to select the Trigger Input option. 4) Press the Menu button to save. 6-3.
  • Page 24 6-4. Trigger Time 1) Press the up(▲) or down(▼) button to select the Trigger Time. 2) Press left(◀) or right(▶) button to adjust Trigger Time setting. 3) Press the MENU button to save. 6-5 Trigger Option 1) Press the up(▲) or down(▼) button to select the Trigger Option. 2) Press the right(▶) or INPUT button.
  • Page 25 7. Auto switching 1) Press the up(▲) or down(▼) button to select the Auto switching. 2) Press the right(▶) or INPUT button. 7-1. Auto switching On/Off 1) Press the right(▶) or INPUT button. 3) Press the up(▲) or down(▼) button to select the On or Off . 4) Press the Menu button to save.
  • Page 26 7-2. Auto switching Inputs enabled 1) Press the up(▲)or down(▼) button to select the Inputs enabled. 2) Press the right(▶) or INPUT button. 3) Press the up(▲) or down(▼) button to select the Input. 4) Press the right(▶) or INPUT button. 5) Press the up(▲) or down(▼) button to select the On or Off and then press the Menu button to save.
  • Page 27 7-3. Auto switching Time 1) Press the up(▲) or down(▼) button to select the Time. 2) Press the left(◀) or right(▶) button to adjust the Time and then press the MENU button to save. INSTRUCTION MANUAL ……………………………………………………………………. 25...
  • Page 28 A. Wall mount (Option) 1) Using the 75 mm VESA holes. 2) Using the VESA standard wall mount design and the 75mm hole pattern on the back side to install the LCD monitor to the wall. TRIGGER TRIGGER TRIGGER TRIGGER TRIGGER TRIGGER INPUT...
  • Page 29 B. Rack mount (Option) 1) Install the monitor in the Pre-Rack using the 75 mm VESA holes. 2) Install the Pre-Rack in the Open Rack using side mounting holes. ※ The Pre-Rack is available rotation of 360° on the Open Rack. INSTRUCTION MANUAL …………………………………………………………………….
  • Page 30 ▶ PIN ASSIGNMENTS Pin 1 RED VIDEO GREEN VIDEO SIGNAL CABLE DETECT BLUE VIDEO GROUND GROUND SDA(for DDC) GROUND H-SYNC.(or H+V SYNC.) RED GROUND V-SYNC. GREEN GROUND SCL(for DDC) BLUE GROUND ▶ ACCESSORY 1. Power cord 2. Power adaptor 3. User’s manual 4.
  • Page 31: Power Consumption

    This monitor features a power management system to “power down” upon receipt of the VESA DPMS(The display power management signaling) from a VESA DPMS video card. The VESA DPMS-compliant video card performs this signaling system through not sending horizontal, vertical, or sync signal. This monitor enters an appropriate mode through identifying each of the three modes of the signaling system.
  • Page 32 8RTC 8RTF 8’’ Diagonal AM-TFT(Active-Matrix) 8.4’’ Diagonal AM-TFT(Active-Matrix) Pixel pitch(mm) : 0.2025(H) x 0.2025(V) Pixel pitch(mm) : 0.213(H) x 0.213(V) LCD-Type BRIGHTNESS: 250cd/㎡(Typical) BRIGHTNESS: 600cd/㎡(Typical) CONTRAST RATIO: 500:1(Typical) CONTRAST RATIO: 600:1(Typical) RESPONSE TIME: 25msec(Typical) RESOLUTION 800X600 @60Hz (H x V) FREQUENCY HORIZONTAL: 31~48KHz, VERTICAL: 56~75Hz VIDEO(2ch input 1.0Vp-p, 75Ω...
  • Page 33: Weee Symbols

    WEEE Symbols Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
  • Page 34 MEMO...
  • Page 36 P/N: L39ME0138 Rev.4...
