Page 3: Table Of Contents
Brake belt contact surface ���������������������������������� 11 Chain 1/2“ x 1/8“ ������������������������������������������������� 12 Freewheel sprocket ��������������������������������������������� 13 Spare parts list ��������������������������������������������� 14 Important Read the manual carefully before using the cycle and save it for future use. 2013 MONARK EXERCISE AB, Vansbro, Sweden... -
Page 4: Monark Exercise Ab
Monark Exercise AB Monark has 100 years’ experience of bicycle production. The Monark tradition has yielded know-how, experience, and a real feel for the product and quality. Since the early 1900s, Monark’s cycles have been living proof of precision, reliability, strength and service. Those are the reasons why we are now the world leader in cycle ergometers and the market leader in Scandinavia in transport cycles. -
Page 5: Product Information

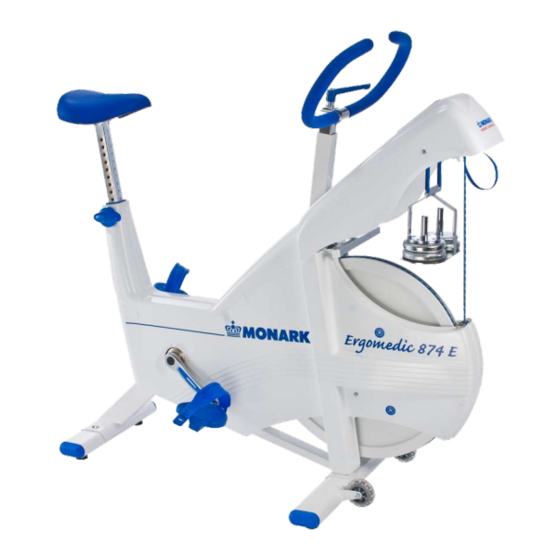

Congratulations on your new Ergometer! • Stable frame, solid steel tube • Powder painted Monark Ergometer model 874 E is a safe, easy-to- • Wheels for easy transport use bike for fitness testing and work tests. It has a •... -
Page 6: Operating Instruction
To adjust the handlebar, loosen the quick release lever (2). See Fig: Adjustments. NOTE! The handlebar stem should be inserted into the frame tube at least 3 inches (about 8 cm). This measure is marked with “MAX” on the stem (3). Monark 874 E... -
Page 7: Meter Instructions
1 kg weight you want to show the total amount of calories your basket. body has used during your training, not only the calories "burnt" on the flywheel. Monark 874 E... -
Page 8: Adjusting The Brake Cord/Belt Tension
If Fig: Electrodes on the back of the chest belt (1) the basket is too high, wrong workload may obtains. Fig: Brake device Fig: Brake cord 1) Stop 2) Cord bracket 3) Tension center 4) Weight basket Monark 874 E... -
Page 9: Troubleshooting Guide
Check that the carriage block is taken off and that none of the covers is scratching. There is a click noise and a squeak noise • Loosen the chain. when pedalling problems with computer • Send an email to the software developer HUR labs support: software software@hur.fi Monark 874 E... -
Page 10: Service
EC Directive 1999/44/EC. In short, tightened on the crank axle, tighten if necessary. the directive states that your Monark dealer will be When the Ergometer is new it is important to tighten liable for any defects, which existed at the time of the pedals after 5 hours of pedalling (4 times per delivery. -
Page 11: Batteries
See ”Brake belt contact surface”. The flywheel bearing is long-term greased and requires no supplementary lubrication. If a problem arises, please contact your Monark dealer. Brake belt contact surface Crank bearing Deposits of dirt on the brake belt and on the contact... -
Page 12: Chain 1/2" X 1/8
Otherwise the chain Fig: Chain replacement 4) Lock spring and sprockets make a lot of noise and wear out rapidly. 5) Movement direction 6) Chain lock Then assemble the removed parts as above but in reverse order. Monark 874 E... -
Page 13: Freewheel Sprocket
The sprocket should be lubricated with a few drops of oil once a year. Tilt the cycle to make it easier for the oil to reach the bearing. See Fig: Lubrication. Fig: Lubrication Fig: Hub assembly Monark 874 E... -
Page 14: Spare Parts List
9306-12 Plastic plug 4994-5 Saddle 5673-9 Screw M5 x 12 mm 9300-114 -Saddle bracket 5681 Screw M5 8966-176 Support casing for BB-bracket 9374-70 Frame cover, right 9374-60 Bracket for frame 5671-19 Screw M5x2 mm 9300-280 Handlebar complete Monark 874 E... - Page 15 Weight, 0.5 kg 19088-6 -Bearing 608-2z 9102-26 Weight, 1kg 5862 -Washer 9384-47 Brake cord, complete 14323-9 -Screw M6 x 16 mm 9301-5 Frame 9324-70 -Lock spring 9339-98 Chest belt 9374-21 -Stop 14379 -Screw M6 x 16 mm Monark 874 E...
- Page 16 Version 1311 Art. No: 7950-306 KROONS VÄG 1, SE-780 50 VANSBRO, SWEDEN | WWW.MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81...
