Summary of Contents for Monark 827 E

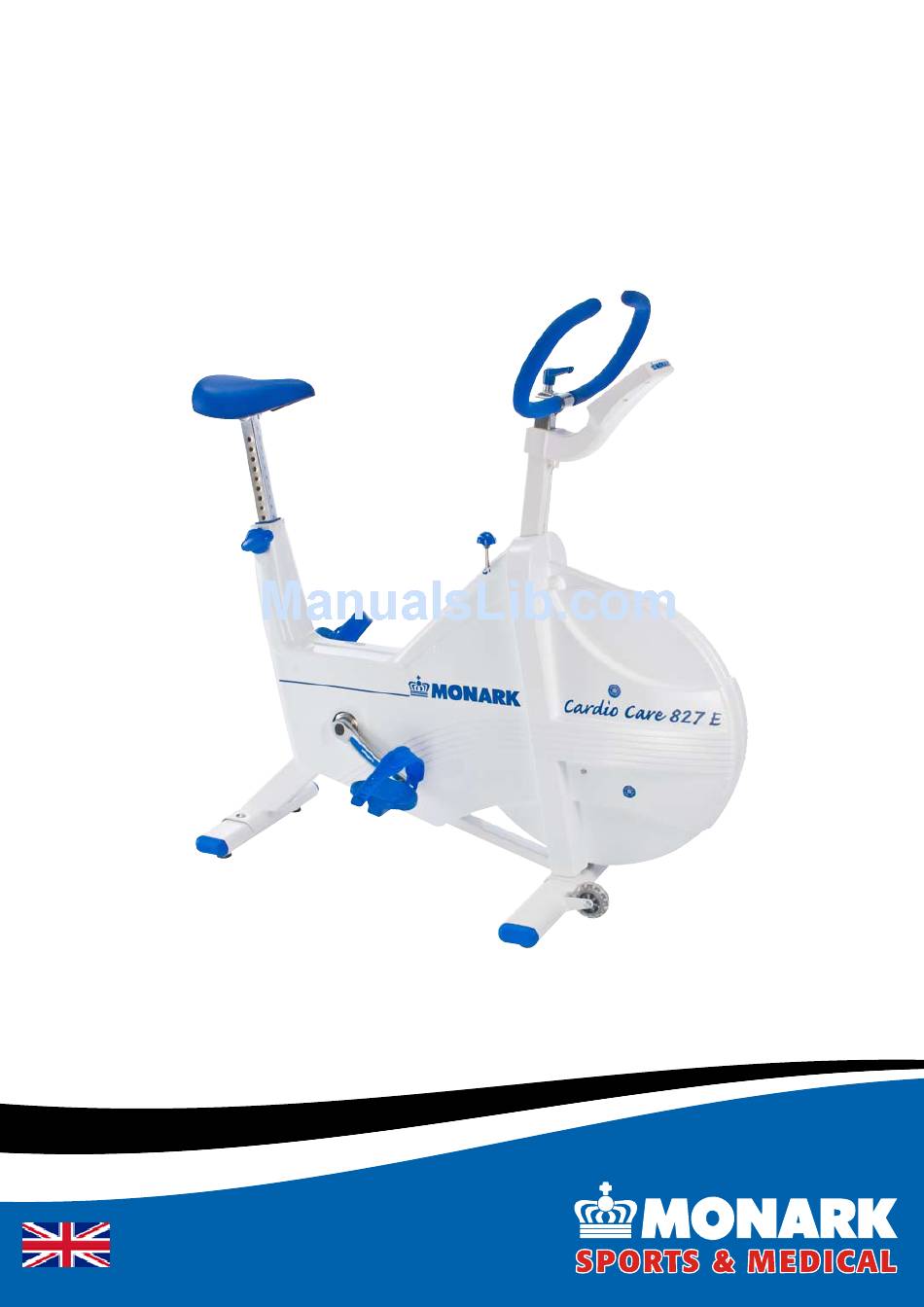

- Page 1 Manual 827 E...
-
Page 3: Table Of Contents
Brake belt contact surface ���������������������������������� 11 Chain 1/2“ x 1/8“ ������������������������������������������������� 12 Freewheel sprocket ��������������������������������������������� 13 Spare parts list ��������������������������������������������� 14 Important Read the manual carefully before using the cycle and save it for future use. 2013 MONARK EXERCISE AB, Vansbro, Sweden... -
Page 4: Monark Exercise Ab
Monark Exercise AB Monark has 100 years’ experience of bicycle production. The Monark tradition has yielded know-how, experience, and a real feel for the product and quality. Since the early 1900s, Monark’s cycles have been living proof of precision, reliability, strength and service. Those are the reasons why we are now the world leader in cycle ergometers and the market leader in Scandinavia in transport cycles. -
Page 5: Product Information
Congratulations on your new exercise bike! • Adjustable saddle and handlebar • Stable frame, solid steel tube The Monark Exercise cycle Model 827 E is a training • Powder painted cycle with an adjustable brake resistance. • Wheels for easy transport... -
Page 6: Operating Instruction
“MAX” on the stem(3). Fig: Adjustments 1) Quick release bolt 2) Quick release lever 3) Inserted min. 3” min. 8 cm (4”) Fig: Workload adjustment 1) Electronic meter 2) Work load knob 3) Indicator window Monark 827 E... -
Page 7: Meter Instructions
/ h and km or for displaying in mph and miles. Do not expose the meter to direct sunlight or extremely high temperature. Do not use any dissolvents when cleaning. Use only dry cloth. Monark 827 E... -
Page 8: Heart Rate
HR (maximum 60 cm). NOTE! Electromagnetic waves may disturb heart rate function. Cellular phones are not allowed to be used near the bike during test. Fig: Electrodes on the back of the chest belt (1) Monark 827 E... -
Page 9: Trouble Shooting Guide
The base bearing is loose. Contact your dealer for service. Scratching sound is heard when pedalling. Check that the carriage block is taken off and that none of the covers is scratching. There is a click noise and a squeak noise Loosen the chain. when pedalling. Monark 827 E... -
Page 10: Service
EC Directive 1999/44/EC. In short, be damaged. Also check that pedal arms are firmly the directive states for that your Monark Dealer will tightened on the crank axle, tighten if necessary. be liable for any defects, which existed at the time of When the Ergometer is new it is important to tighten delivery. -
Page 11: Batteries
The crank bearing is long term greased and requires Brake belt contact surface no supplementary lubrication. If a problem arises, please contact your Monark dealer. Deposits of dirt on the brake belt and on the contact surface may cause the unit to operate unevenly and will Flywheel bearing also wear down the brake belt. -
Page 12: Chain 1/2" X 1/8
Otherwise the chain and sprockets makes a lot of noise and wears out rapidly. Fig: Chain replacement 4) Lock spring 5) Movement direction Then assemble the removed parts as above but in 6) Chain lock reverse order. Monark 827 E... -
Page 13: Freewheel Sprocket
The sprocket should be lubricated with a few drops of oil once a year. Tilt the cycle to make it easier for the oil to reach the bearing. See Fig: Lubrication. Fig: Lubrication Fig: Hub assembly Fig: Special remover (Art. no: 9100-14) Monark 827 E... -
Page 14: Spare Parts List
9300-430 Steel crank set, complete 9300-81 Frame cover, left 9300-220 Pedal (pair) 9300-80 Frame cover, right 9300-207 Pedal strap, (pair) 5673-9 Mounting screw LKT-TT 5x12mm 8966-175 BB cartridge bearing 9306-12 Dust cover 9300-138 Saddle post 9301-5 Frame Monark 827 E... - Page 15 91001-6 -Bearing 6001-2z 5770 9300-18 -Axle 9306-36 Brake belt, complete 9300-17 -Bush, 23 mm 9300-126 Tension lever, complete 9300-125 Tension screw, complete 9339-98 Chestbelt (accessory) 9326-162 Crank sensor with cable 9106-550 Decal set 9326-263 Cable 550 mm Monark 827 E...
- Page 16 Version 1303 Art. No. 7950-294 KROONS VÄG 1, SE-780 50 VANSBRO, SWEDEN | WWW.MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81...
