- Page 1 Manual 808/809...
-
Page 3: Table Of Contents
Workload device ������������������������������������������������������ 6 Mechanical meters ��������������������������������������������������� 6 Cycle adjustments ���������������������������������������������������� 7 Replacement of hub connection forspeedometer ���� 8 Replacement of the sprocket model 808 ����������������� 8 Brake wheel ������������������������������������������������������������ 8 Troubleshooting guide �������������������������������������� 9 Service �������������������������������������������������������������� 10 Warning ������������������������������������������������������������������ 10 Warranty ����������������������������������������������������������������... -
Page 4: Monark Exercise Ab
Since the early 1900s, Monark’s cycles have been living proof of precision, re- liability, strength and service. That are the reasons why we are now the world leader in cycle ergometers and the market leader in Scandinavia in transport cycles. -
Page 5: Product Information

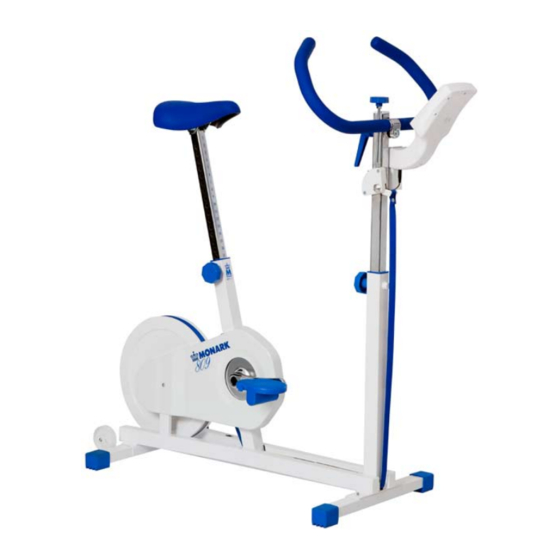

808 without freewheel, 809 with freewheel Congratulations on your new exercise bike. • Heavy, well-balanced flywheel • Height adjustable saddle Exercise bike Monark Sparr 808/809 is designed for • Adjustable handlebar example motion stimulus, the load of the circulatory • Road and speedometer system and the prevention of contracture. -
Page 6: Operating Instruction
Monark Sparr Rehab 808 and 809 are both fitness and rehabilitation bikes that are equipped with ad- justable workload. Model 808 is equipped with a sprocket, model 809 is equipped with a sprocket on the crank. The bikes are also equipped with a meter that shows the intended cycling speed in km per hour and the distance trav- elled in kilometres. -
Page 7: Cycle Adjustments
See fig: Adjustments. Fig: Adjustments 1) Saddle height adjustment 2) Handlebar height adjustment 3) Handlebar angle adjustment Monark 808/809... -
Page 8: Replacement Of Hub Connection Forspeedometer
Replacement of hub connection for Replacement of the sprocket model 808 speedometer Lift off the wheel Dismantle the axle nut, chain tensioner and spac- Dismantle the chain guard er on the sprocket side Loosen the brake belt Thread off the sprocket clockwise (tool, Art. No:... -
Page 9: Troubleshooting Guide
There is a loose in the base bearing, contact your dealer for service. Scratching sound is heard when pedalling. Check that the carriage block is taken off and that none of the covers is scratching. There is a click noise and a squeak noise Untighten the chain. when pedalling. Monark 808/809... -
Page 10: Service
(4 times EC Directive 1999/44/EC. In short, the directive pro- per year). vides for that your Monark Dealer will be liable for • Check now and then that both pedals are firmly any defects, which existed at the time of delivery. -
Page 11: Batteries
Crank bearing The crank bearing is long term greased and require normally no supplementary lubrication. If problem arises, please contact your Monark dealer. Brake belt contact surface Flywheel bearing Deposits of dirt on the brake belt and on the contact... -
Page 12: Chain 1/2" X 1/8
Adjust chain adjusters to allow chain play according to above. Tighten hub nuts firmly. Put on frame cov- ers again. Monark 808/809... -
Page 13: Freewheel Sprocket
The sprocket should be lubricated with a few drops of oil once a year. Tilt the cycle somewhat to make it easier for the oil to reach the ball bearing. See fig: Lubrication. Fig: Lubrication Fig: Hub assembly Fig: Special remover (Art. No: 9100-14) Monark 808/809... -
Page 14: Spare Parts
-Handlebar plug, blue 8523-115 Screw M6S 8.8 M8x1x20 9100-106 -Lever 8523-2 Dust cover 9308-66 -Screw MVBF 8x80 9300-215 Pedal 9/16”, pair 6668-5 -Washer 28x8,5x3 9300-207 Pedal strap, pair 9308-32 Tension lever, compl. 9308-1 Frame 9308-10 Endcap 9308-11 Endcap Monark 808/809... - Page 15 28 29 Pos. Qty. Art. No. Description Pos. Qty. Art. No. Description 9308-30 Flywheel compl. 808, no flywheel 9309-38 Spacer, 809 9309-30 Flywheel compl. 809, w. flywheel 1210 Sprocket 14t, 808 5799 Nut 9.5x26g, 808 2420-49 Sprocket nut, 808 9309-39...
- Page 16 Version 1010 Art. No: 7950-292 KROONS VÄG 1, SE-780 50 VANSBRO, SWEDEN | WWW.MONARKEXERCISE.SE | TEL: +46(0)281 59 49 40 | FAX: +46(0)281 719 81...
