The Viewfinder - Nikon D5200 User Manual

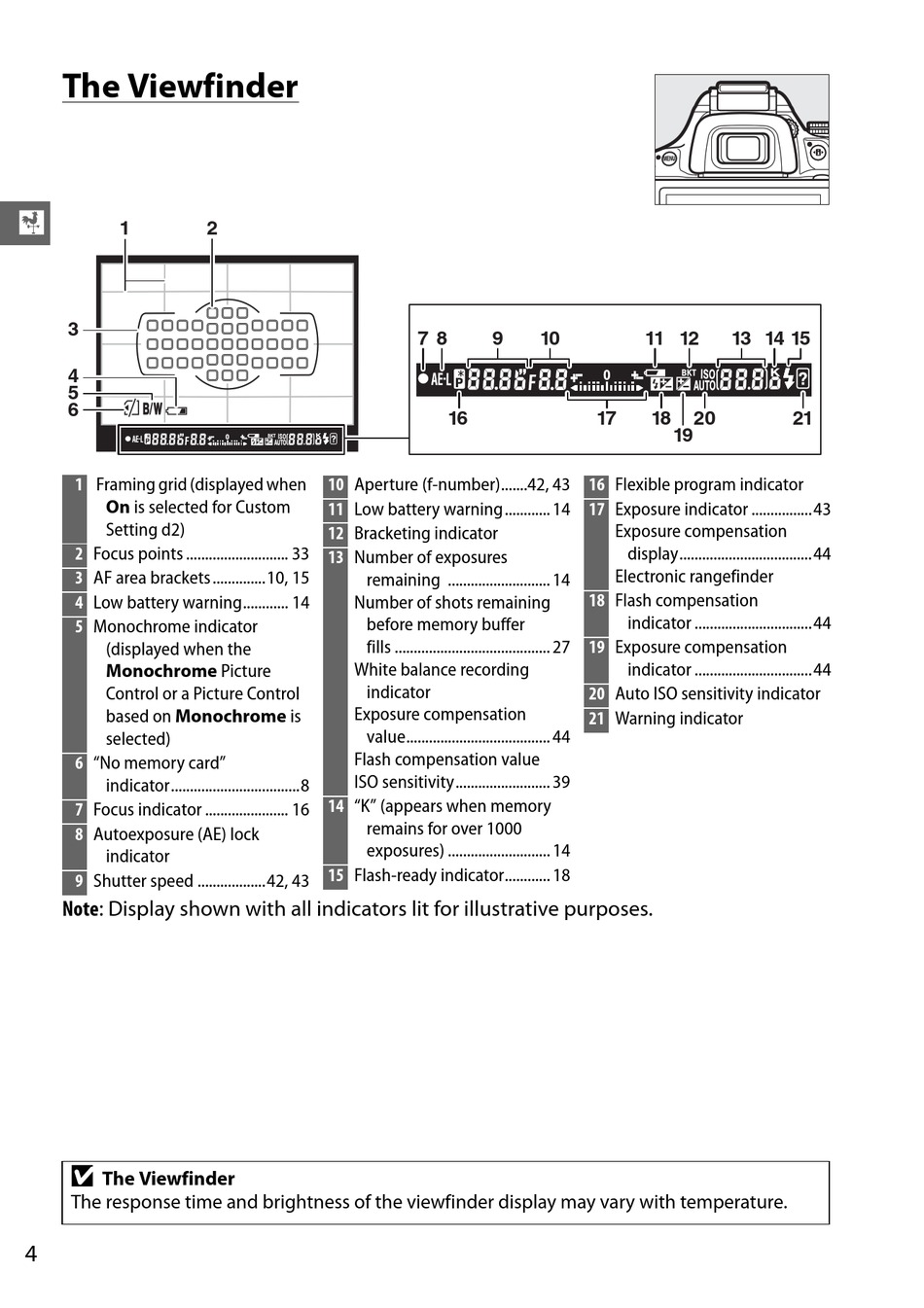

The Viewfinder

X
1
3
4
5
6
1 Framing grid (displayed when
On is selected for Custom
Setting d2)
2 Focus points ........................... 33
3 AF area brackets..............10, 15
4 Low battery warning............ 14
5 Monochrome indicator
(displayed when the
Monochrome Picture
Control or a Picture Control
based on Monochrome is
selected)
"No memory card"
6
indicator..................................8
7 Focus indicator ...................... 16
Autoexposure (AE) lock
8
indicator
9 Shutter speed ..................42, 43
Note: Display shown with all indicators lit for illustrative purposes.
D
The Viewfinder
The response time and brightness of the viewfinder display may vary with temperature.
4
2
10 Aperture (f-number).......42, 43
11 Low battery warning............ 14
12 Bracketing indicator
13 Number of exposures
remaining ........................... 14
Number of shots remaining
before memory buffer
fills ......................................... 27
White balance recording
indicator
Exposure compensation
value...................................... 44
Flash compensation value
ISO sensitivity......................... 39
14 "K" (appears when memory
remains for over 1000
exposures) ........................... 14
15 Flash-ready indicator............ 18
7 8 9 10
16
16
17
18
19
20
21
11 12 13 14
17 18 20
19
Flexible program indicator
Exposure indicator ................43
Exposure compensation
display...................................44
Electronic rangefinder
Flash compensation
indicator ...............................44
Exposure compensation
indicator ...............................44
Auto ISO sensitivity indicator
Warning indicator
15
21
