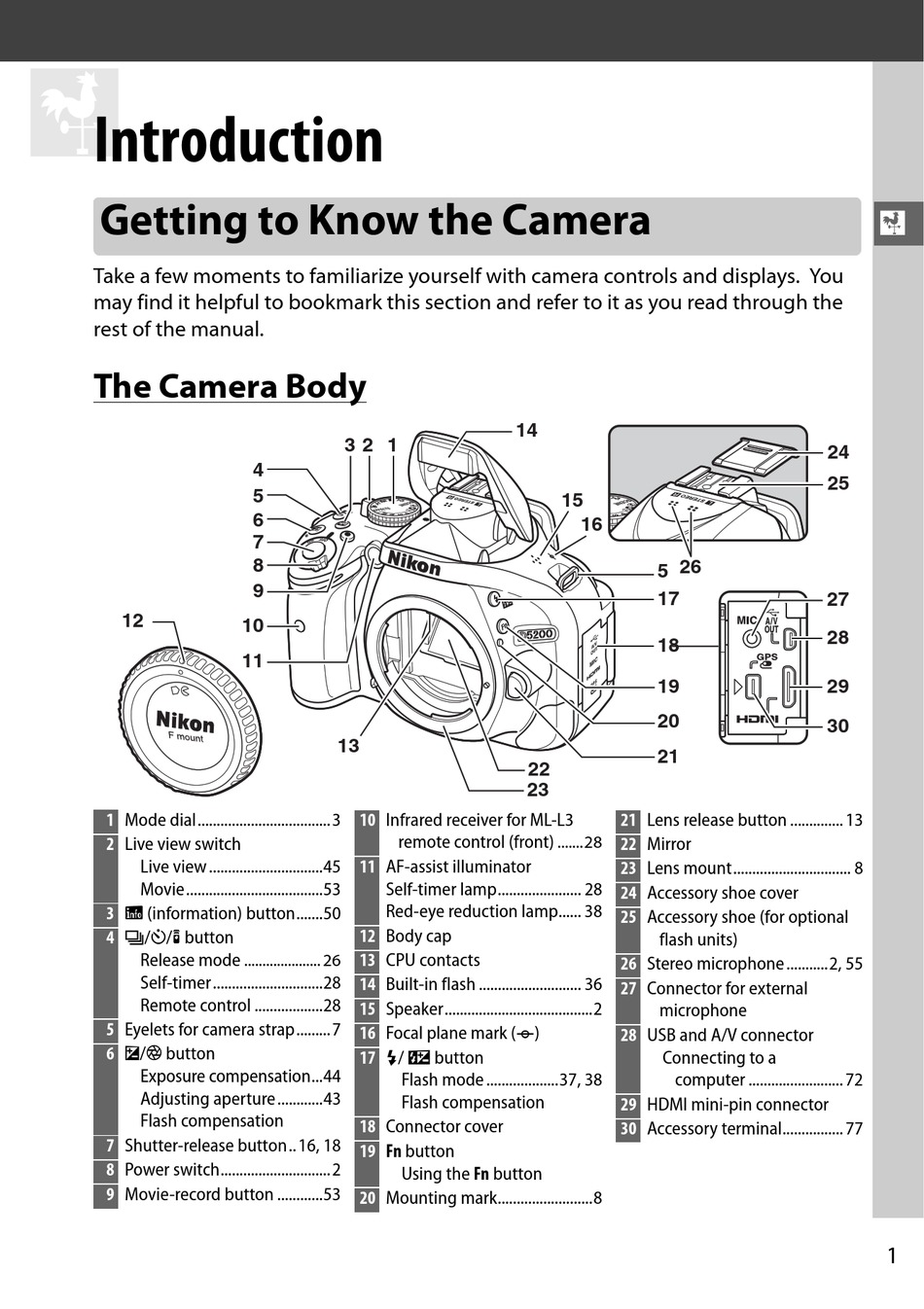

Introduction

Getting to Know the Camera

Take a few moments to familiarize yourself with camera controls and displays. You
may find it helpful to bookmark this section and refer to it as you read through the
rest of the manual.

The Camera Body

12
Mode dial...................................3
1
2 Live view switch
Live view ..............................45
Movie....................................53
R (information) button.......50
3
I/E/# button
4
Release mode
Self-timer.............................28
Remote control ..................28
5 Eyelets for camera strap.........7
E/N button
6
Exposure compensation...44
Adjusting aperture ............43
Flash compensation
7 Shutter-release button.. 16, 18
8 Power switch.............................2
9 Movie-record button ............53
3 2 1
4
5
6
7
8
9
10
11
13
Infrared receiver for ML-L3
10
remote control (front)
11 AF-assist illuminator
Self-timer lamp...................... 28
Red-eye reduction lamp...... 38
12 Body cap
..................... 26 13 CPU contacts
14 Built-in flash ........................... 36
15 Speaker.......................................2
16 Focal plane mark (E)
M/ Y button
17
Flash mode ...................37, 38
Flash compensation
18 Connector cover
19 Fn button
Using the Fn button
20 Mounting mark.........................8
14
15
16
26
5
17
18
19
20
21
22
23
Lens release button .............. 13
21
.......28
22 Mirror
23 Lens mount............................... 8
24 Accessory shoe cover
Accessory shoe (for optional
25
flash units)
26 Stereo microphone ...........2, 55
27 Connector for external
microphone
28 USB and A/V connector
Connecting to a
computer ......................... 72
29 HDMI mini-pin connector
30 Accessory terminal................ 77
