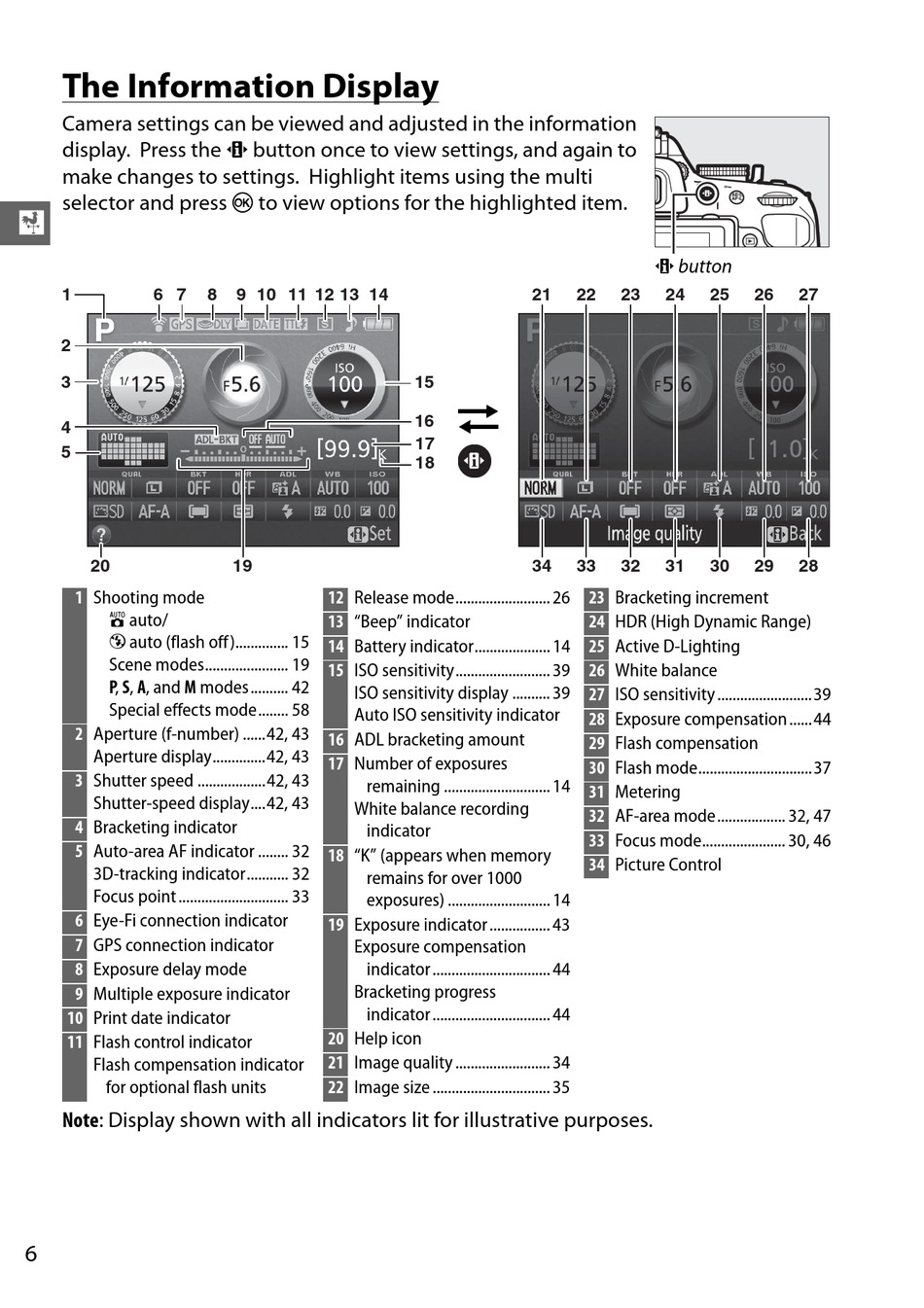

The Information Display

Camera settings can be viewed and adjusted in the information
display. Press the P button once to view settings, and again to
make changes to settings. Highlight items using the multi
selector and press J to view options for the highlighted item.
X
1 6 7
2
3
4
5
20
1 Shooting mode
i auto/
j auto (flash off).............. 15
Scene modes...................... 19
P, S, A, and M modes.......... 42
Special effects mode........ 58
Aperture (f-number) ......42, 43
2
Aperture display..............42, 43
3 Shutter speed ..................42, 43
Shutter-speed display....42, 43
4 Bracketing indicator
5 Auto-area AF indicator ........ 32
3D-tracking indicator........... 32
Focus point ............................. 33
6 Eye-Fi connection indicator
7 GPS connection indicator
8 Exposure delay mode
9 Multiple exposure indicator
10 Print date indicator
11 Flash control indicator
Flash compensation indicator
for optional flash units
Note: Display shown with all indicators lit for illustrative purposes.
6
8 9 10 11 12 13 14
19
12 Release mode......................... 26
13 "Beep" indicator
14 Battery indicator.................... 14
15 ISO sensitivity......................... 39
ISO sensitivity display .......... 39
Auto ISO sensitivity indicator
16 ADL bracketing amount
17 Number of exposures
remaining ............................ 14
White balance recording
indicator
"K" (appears when memory
18
remains for over 1000
exposures) ........................... 14
19 Exposure indicator ................ 43
Exposure compensation
indicator ............................... 44
Bracketing progress
indicator ............................... 44
20 Help icon
21 Image quality ......................... 34
22 Image size ............................... 35
21 22
15
16
17
18
34 33
23
24
25
26
27
28
29
30
31
32
33
34
P button
23 24 25 26
32 31 30 29
Bracketing increment
HDR (High Dynamic Range)
Active D-Lighting
White balance
ISO sensitivity .........................39
Exposure compensation ......44
Flash compensation
Flash mode..............................37
Metering
AF-area mode.................. 32, 47
Focus mode...................... 30, 46
Picture Control
27
28
