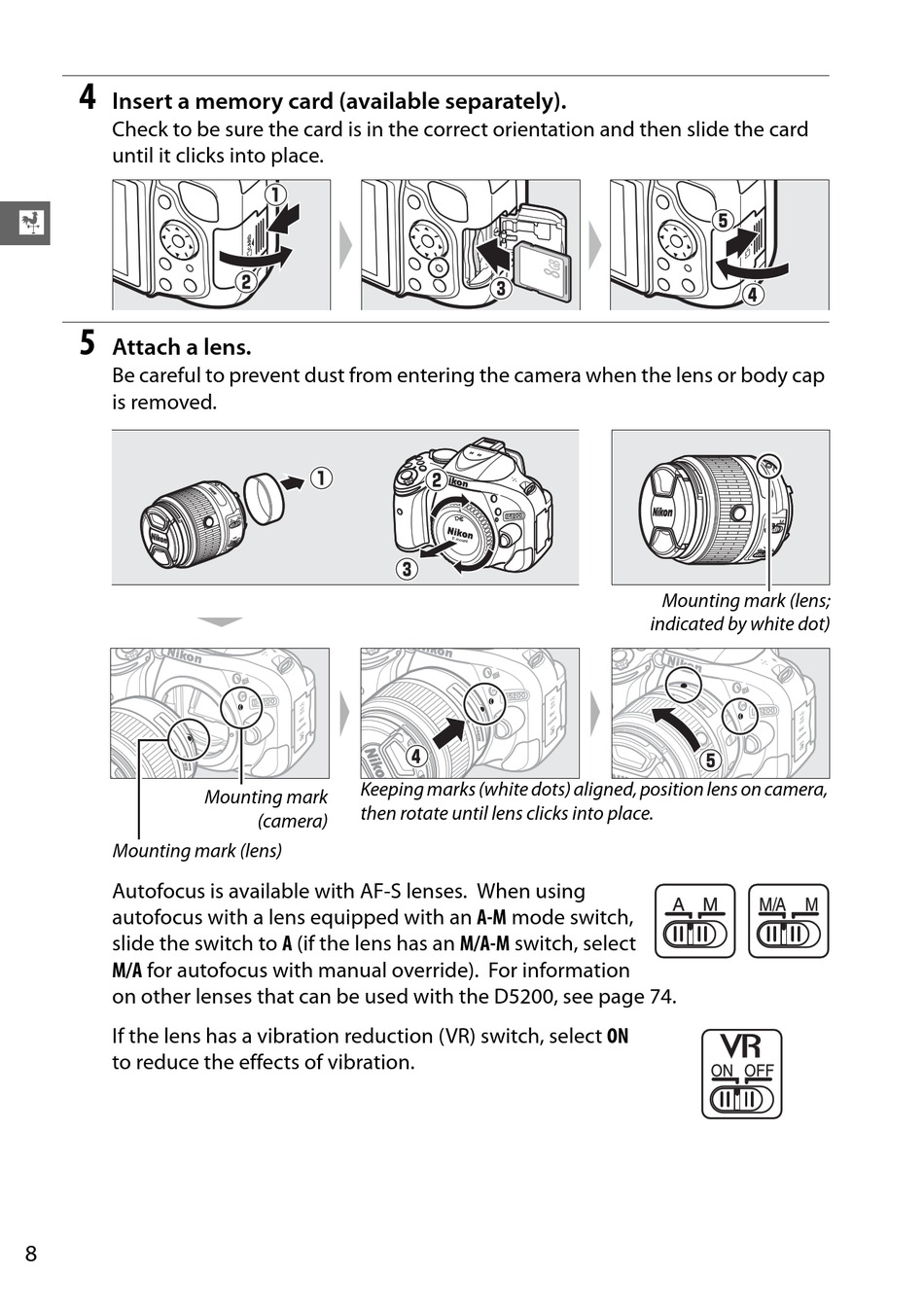

Nikon D5200 User Manual page 18

4
Insert a memory card (available separately).
Check to be sure the card is in the correct orientation and then slide the card
until it clicks into place.
X
5
Attach a lens.
Be careful to prevent dust from entering the camera when the lens or body cap
is removed.
Mounting mark (lens)
Autofocus is available with AF-S lenses. When using
autofocus with a lens equipped with an A-M mode switch,
slide the switch to A (if the lens has an M/A-M switch, select
M/A for autofocus with manual override). For information
on other lenses that can be used with the D5200, see page 74.
If the lens has a vibration reduction (VR) switch, select ON
to reduce the effects of vibration.
8
Keeping marks (white dots) aligned, position lens on camera,
Mounting mark
then rotate until lens clicks into place.
(camera)
Mounting mark (lens;
indicated by white dot)
