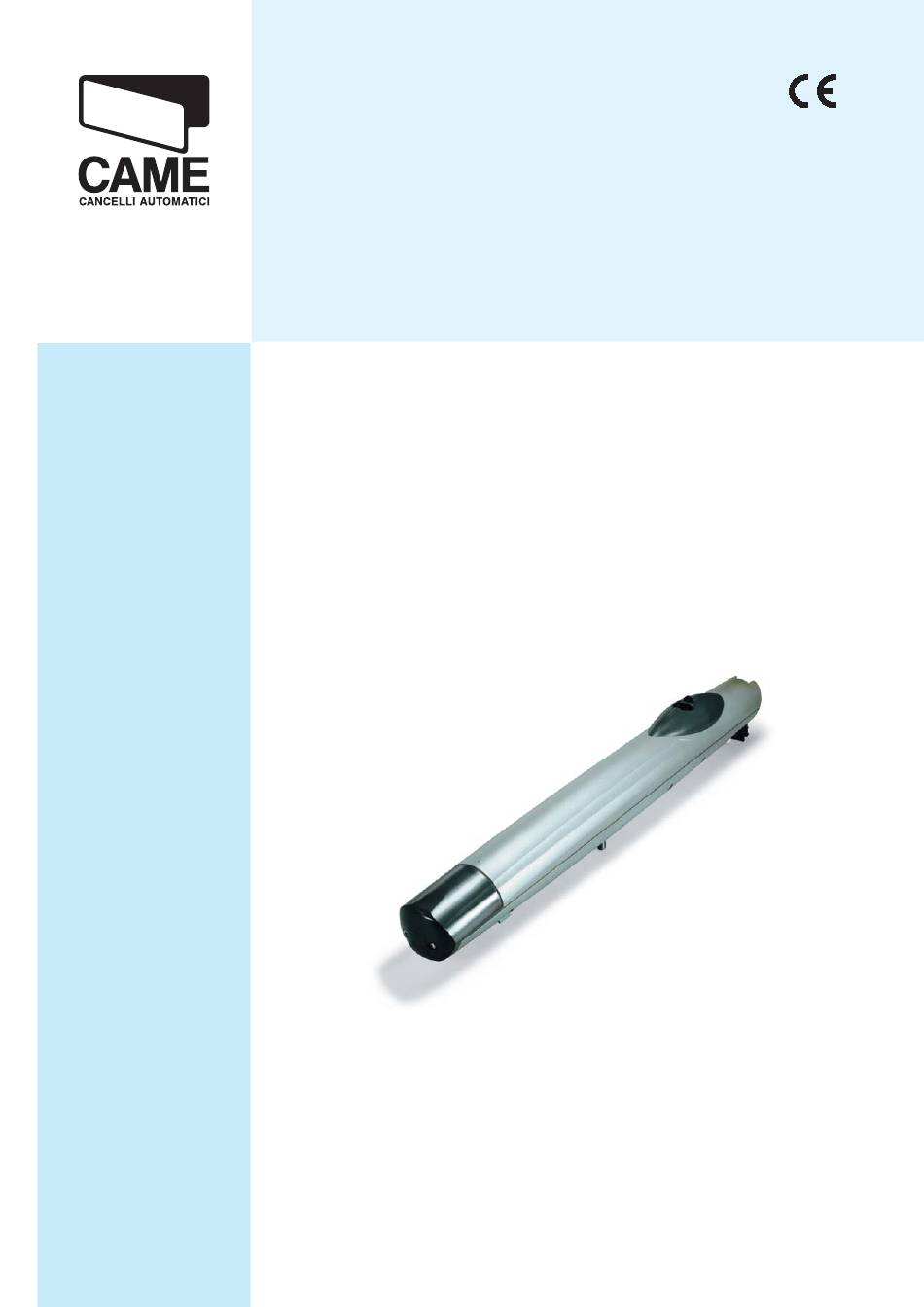

- Page 1 AUTOMATION FOR SWING GATES AMICO SERIES INSTALLATION MANUAL A1824...
-
Page 2: Legend Of Symbols
200 kg 3 Reference Standards The company CAME cancelli automatici s.p.a. is ISO 9001:2000 quality certified; it has also obtained the ISO 14001 environ- mental safeguarding certification. Came engineers and manufactures all of its products in Italy. This product complies with the following standards: EN 12978, UNI EN 954-1, CEI EN 60335-1, UNI EN 12453. -
Page 3: Description Of Parts
4.3 Description of parts A1824 1) Operator 2) Pilaster bracket 3) Gate bracket 4) Screw, bushing and nut for the pilaster bracket 5) Bolt and nut for the gate bracket 6) Distanziale per perno attacco 4.4 Dimensions (mm) 5 Installation Installation must be carried out by expert qualified personnel and in full compliance with current regulations. -
Page 4: Standard Installation
5.2 Tools and materials Make sure you have all the tools and materials you will need for the installation at hand to work in total safety and compliance with the current standards and regulations. The following figure illustrates the minimum equipment needed by the installer. -
Page 5: Installing The Operator
5.5 Installing the operator The following illustrations are only examples, given that the space available for anchoring the operator and accessories may vary from gate to gate. It is up to the installer, thus, to choose the most suitable solution. Lay the corrugated tubing needed for the connections deriving from the junction box. - Page 6 Assemble and weld the two parts of the pillar bracket. Secure the bracket to the point you have chosen with proper plugs and screws or – if the pillar is made of metal – weld it on. Weld the gate bracket to the gate leaf making sure the quotas shown in the table are met. Note: on non-metal gate leaves assemble and weld the two parts of the bracket and secure them with proper screws.
- Page 7 Insert the bushing into the head attachment pin. Bushing Open the gate leaf and insert the pin into the gate bracket. Attachment pin Washer Nut M12 Release the gearmotor (see paragraph on manual release), completely open the gate leaf, loosen the nuts of the opening mechanical stop and position it up against the attachment pin, then secure it.
-
Page 8: Connecting To The Control Panel
5.6 Manual release of the gearmotor Slide open the small door that protects the release, insert the tri-lobed key and turn it. 5.7 Connecting to the control panel For the electrical connection procedures, use the junction box and branching boxes. Connecting the 24V d.c. - Page 9 5.8 Outward opening installation Opening (mm) (mm) (mm) 90° Weld the extra bracket to that of the pillar, secure the extra bracket to the pillar making sure the A and B quotas are met as shown in the table. Open the gate to a 90° arc, weld or secure using proper screws the gate bracket making sure the E quota is met.
-
Page 10: Safety Instructions
7 Safety instructions Important safety instructions This product must only be employed for its originally intended use. Any other use is wrong and potentially dangerous. The manufacturer cannot be held liable for any damages resulting from wrongful, erroneous or negligent uses. Avoid working close to the hinges or other moving mechanical parts. -
Page 11: Periodic Maintenance
8 Maintenance 8.1 Periodic maintenance Periodic maintenance to be carried out by the end-user is as follows: wipe clean the glass surface of the photocells; check that the safety devices work properly; remove any obstructions. We suggest checking the state of lubrication and tightness of the anchoring screws on the operator. To check the efficiency of the safety devices, move an object in front of the photocells when gate is closing. -
Page 12: Extraordinary Maintenance
Periodic maintenance log for end-user (every 6 moths) Date Notes Signature 8.3 Extra-ordinary maintenance The following table serves to note down any extraordinary maintenance, repairs or improvements performed by spe- cialised firms. N.B.: Any extraordinary maintenance must be performed by specialised technicians. Extra-ordinary maintenance log Installer’s stamp Operator name... -
Page 13: Phasing Out And Disposal
We ask you to keep protecting the environment, as CAME deems it to be one of the fundamental points of its market operations strategies, by simply following these brief guidelines when disposing. - Page 14 CAME UNITED KINGDOM LTD UNIT 3, ORCHARD BUSINESS PARK TOWN STREET, SANDIACRE NOTTINGHAM - NG10 5BP - U.K. Tel - 0044 115 9210430 Fax - 0044 115 9210431...
- Page 15 Important Information Gate automation equipment must be installed in accordance with all current legislation; namely Machinery Directive 98/37/EC and BS EN12453. BRUNDLE...
