PML 32
Operating instructions
1-36
en

Advertisement

Table of Contents
loading

Related Manuals for Hilti PML 32

Summary of Contents for Hilti PML 32

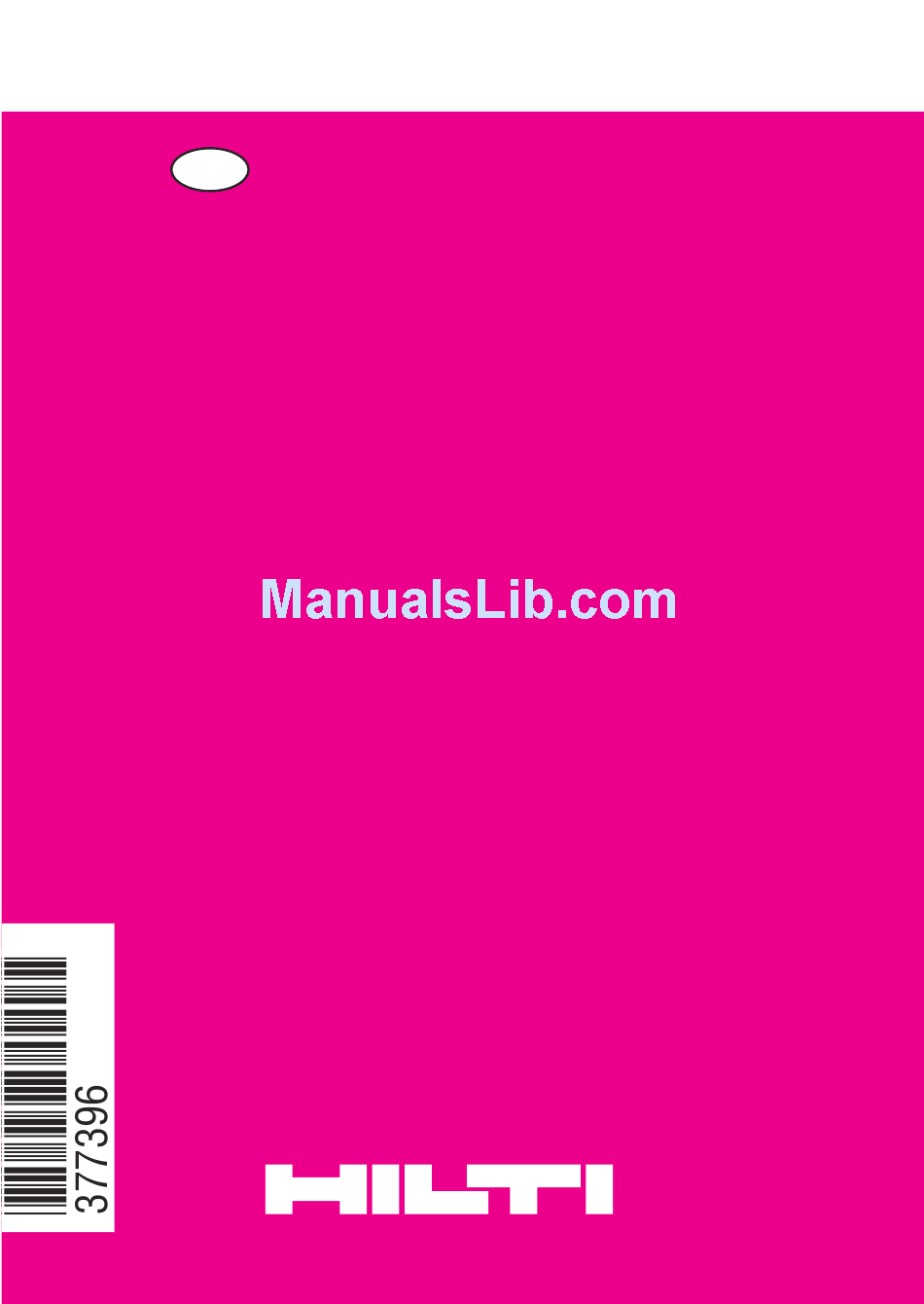

  • Page 1 PML 32 Operating instructions 1-36...
  • Page 5 It is essential that the operating instructions are read before the tool is operated for the first time. Always keep these operating instructions together with the tool. Ensure that the operating instructions are with the tool when it is given to other persons. Component parts 1.

  • Page 6: Table Of Contents

    Contents / 1. General information Contents 1. General information .................2 2. Description..................4 3. Accessories..................6 4. Technical data ..................7 5. Safety precautions ................9 6. Before use..................16 7. Operation ..................15 8. Checks ...................20 9. Care and maintenance..............26 10. Troubleshooting ................28 11. Disposal ..................29 12.

  • Page 7: General Information

    Keep these pages open while studying the operating instructions. In these operating instructions, the PML 32 line laser is referred to as «the tool». Location of identification data on the tool The type designation and serial number can be found on the type plate on the tool.

  • Page 8: Description

    - Horizontal laser beam - Vertical laser beam - Horizontal and vertical laser beams - Inclined plane (pendulum deactivated) 2.1 Items supplied with the line laser (cardboard box version) PML 32 line laser Soft case 4 batteries Operating instructions Laser sighting glasses *...
  • Page 9 2. Description 2.2 Items supplied with the line laser (Hilti toolbox version) PML 32 line laser Soft case 4 batteries Operating instructions Laser sighting glasses * Wall bracket Pipe adaptor Frame clamp 2 target plates * These are not protective glasses and thus do not protect the eyes from laser radiation.

  • Page 10: Accessories

    Telescopic pole PVA 10 Frame clamp PA 250 Hilti toolbox Sighting glasses* PA 970 * These are not protective glasses and thus do not protect the eyes from laser radiation. As they restrict color vision, they must not be worn while driving a...

  • Page 11: Technical Data

    4. Technical data 4. Technical data Operating conditions Projection onto an even, vertical surface Tool aligned at 90° to the surface Self-leveling within the ± 5° range Range Line accuracy from end to end ≤ ± 1.5mm for a line with a lenght of 10 m @ 25°C Laser class Class 2, visible, 635 ±...
  • Page 12 4. Technical data Operating status indicators LED + laser beams Power supply 4 x alkaline batteries, size AA Battery life at 25°C [+77°F] Alkaline: > 40 h (1 line) Operating temperature range -10°C up to +40°C (±2) °C / +14°F up to 104 (±4)°F Storage temperature -20°C up to +63°C / -4°F up to 145°F Protection class...

  • Page 13: Safety Precautions

    – The tool and its ancillary equipment may present hazards when used incorrectly by untrained personnel or when used not as directed. – To avoid the risk of injury, use only original Hilti accessories and additional equipment. – Modification of the tool is not permissible.
  • Page 14 – Keep laser tools out of reach of children. – Have the tool repaired only at a Hilti service centre. Failure to follow the correct procedures when opening the tool may cause emission of laser radiation in excess of class 2.
  • Page 15 5. Safety precautions 5.3.1 Electromagnetic compatibility Although the tool complies with the strict requirements of the relevant directives, Hilti cannot entirely rule out the following possibilities: – The tool may cause interference to other equipment (e.g. aircraft navigation equipment). – The tool may be subject to interference caused by powerful radiation, which may lead to incorrect operation.

  • Page 16: Before Use

    5.4 General safety precautions – Check the tool for possible damage before use. If it is found to be damaged, have it repaired at a Hilti service centre. – The accuracy of the tool must be checked after it has been dropped or subjected to other mechanical stresses.
  • Page 17 5. Safety precautions – Although the tool is protected to prevent entry of dampness, it should be wiped dry each time before being put away in its transport container. 5.4.1 Electrical hazards – The batteries must be insulated or removed from the tool before it is shipped.

  • Page 18: Operation

    6. Operation 6. Operation 6.1 Inserting new batteries -NOTE- Do not use damaged batteries. Do not mix old and new batteries. Do not mix batteries of different makes or types. 1. Bring the two parts of the tool into the closed position.
  • Page 19 7. Operation 7. Operation -NOTE- The pendulum is locked when the tool is in the closed position (laser beam blinks). 7.1 Operation 7.1.1 Bringing the tool into the operating position 1. Open the tool to the 90° or 180° position. 2.
  • Page 20 7. Operation To switch on only the vertical beam: 1. Press the selector button twice. To switch on the horizontal and vertical beams: 1. Press the selector button three times. 7.1.3 Working in an inclined plane 1. Press the pendulum lockbutton (the pendulum is then locked).
  • Page 21 7. Operation 7.1.5 Deactivating the automatic switch-off function 1. Press and hold the selector button (approx. 4 seconds) until the laser beam blinks three times in confirmation. -NOTE- The tool will then operate until switched off by pressing the selector button or until the batteries are exhausted.
  • Page 22 7. Operation 3. Adjust the height of the tool until the beam is at the correct position. 4. Mount the cable trays along the laser line. 7.2.3 Example 3: Installing pipes vertically on a wall 1. Set up the tool on a level surface in front of the wall.
  • Page 23 7. Operation 7.3 Operating status indicators 7.3.1 LED The LED doesn't light. – The tool is switched off. – The batteries are exhausted. – The batteries are inserted incorrectly. The LED lights constantly. – The laser beam is switched on. The tool is in operation.

  • Page 24: Checks

    8. Checks 8. Checks 8.1 Checking the horizontal line 8.1.1 Height accuracy (fig. 1. Place the tool on a level surface (floor). 2. Switch on the horizontal and vertical beams. 3. Set up the first target plate 20 cm in front of the tool.
  • Page 25 8. Checks 7. The tool requires to be adjusted at a Hilti repair center if the deviation in height (see fig. exceeds 3 mm.
  • Page 26 4. Move the tool to position 2 (see fig. ). It should be the same distance from the target plates as before. 5. The tool requires to be adjusted at a Hilti repair center if the deviation exceeds 4.5 mm (see fig.
  • Page 27 8. Checks...
  • Page 28 . 6. The tool requires to be adjusted at a Hilti repair center if the deviation exceeds 3 mm (see fig.
  • Page 29 8. Checks...

  • Page 30: Care And Maintenance

    9. Care and maintenance 9. Care and maintenance 9.1 Cleaning and drying – Blow dust off the lenses. – Do not touch the glass with your fingers. – Use only a clean, soft cloth for cleaning. If necessary, moisten the cloth slightly with pure alcohol or a little water.
  • Page 31 9. Care and maintenance 9.3 Transportation Use the Hilti shipping carton or packaging of equivalent quality for transporting or shipping your equipment. -NOTE- Always remove the batteries before shipping.

  • Page 32: Troubleshooting

    Close the battery not closed. compartment. Tool or selector button is Bring the tool to a defective. Hilti repair center. Individual laser beams The laser source or laser Bring the tool to a don't function. control is defective. Hilti repair center.

  • Page 33: Disposal

    Most of the materials from which Hilti tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled.
  • Page 34 11. Disposal Separate the individual parts as follows: Part / assembly Main material Recycling Housing, toolbox Plastic, steel Plastics recycling, scrap metal Switch Plastic Plastics recycling Screws, small parts Steel, aluminum, magnets Scrap metal Electronics Various Electronics scrap Batteries Alkaline manganese Soft case Woven synthetic material Plastics recycling...

  • Page 35: Warranty

    12. Warranty 12. Warranty Hilti warrants that the tool supplied is free of defects in material and workmanship. This warranty is valid as long as the tool is operated and handled correctly, cleaned and serviced properly and in accordance with the Hilti...
  • Page 36 12. Warranty Send the tool and/or related parts immediately upon discovery of a defect to the local Hilti marketing organization for repair or replacement. This constitutes Hilti's entire obligation with regard to warranty and supersedes all prior or contemporaneous comments and oral or written agreements concerning...

  • Page 37: Fcc Statement

    13. FCC statement (applicable in USA) 13. FCC statement (applicable in USA) -CAUTION- This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 38 13. FCC statement (applicable in USA) Changes or modifications not expressly approved by Hilti could limit the user's right to operate the equipment. Labels...

  • Page 39: Ec Declaration Of Conformity

    14. EC declaration of conformity 14. EC declaration of conformity Description: Line laser Type designation: PML 32 Serial number: 000 00 001 – 500 00 000 Year of design: 2003 In conformance with requirements. We declare, on our sole responsibility, that this product...
  • Page 42 Hilti Corporation FL-9494 Schaan Tel.: +423 / 234 21 11 Fax: +423 / 234 29 65 www.hilti.com Hilti = reg. trademark of Hilti Corp., Schaan W2765 0703 2-Pos. 3 Printed in Liechtenstein © 2003 Right of technical and programme changes reserved...
