Conel Bivias v2 User Manual

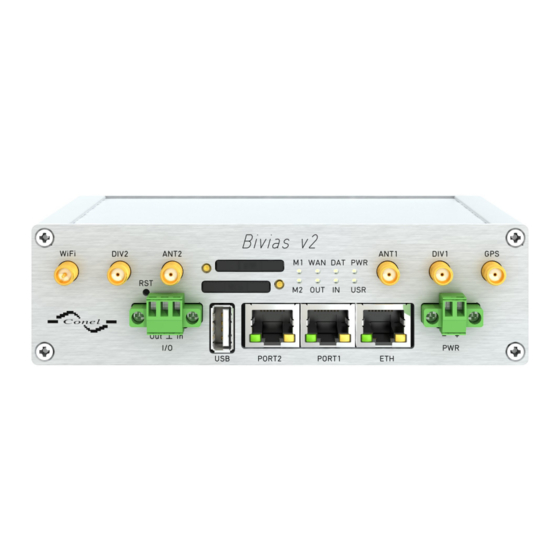

Two modular concept router
Hide thumbs Also See for Bivias v2:
Table of Contents

Advertisement

Quick Links

Download this manual

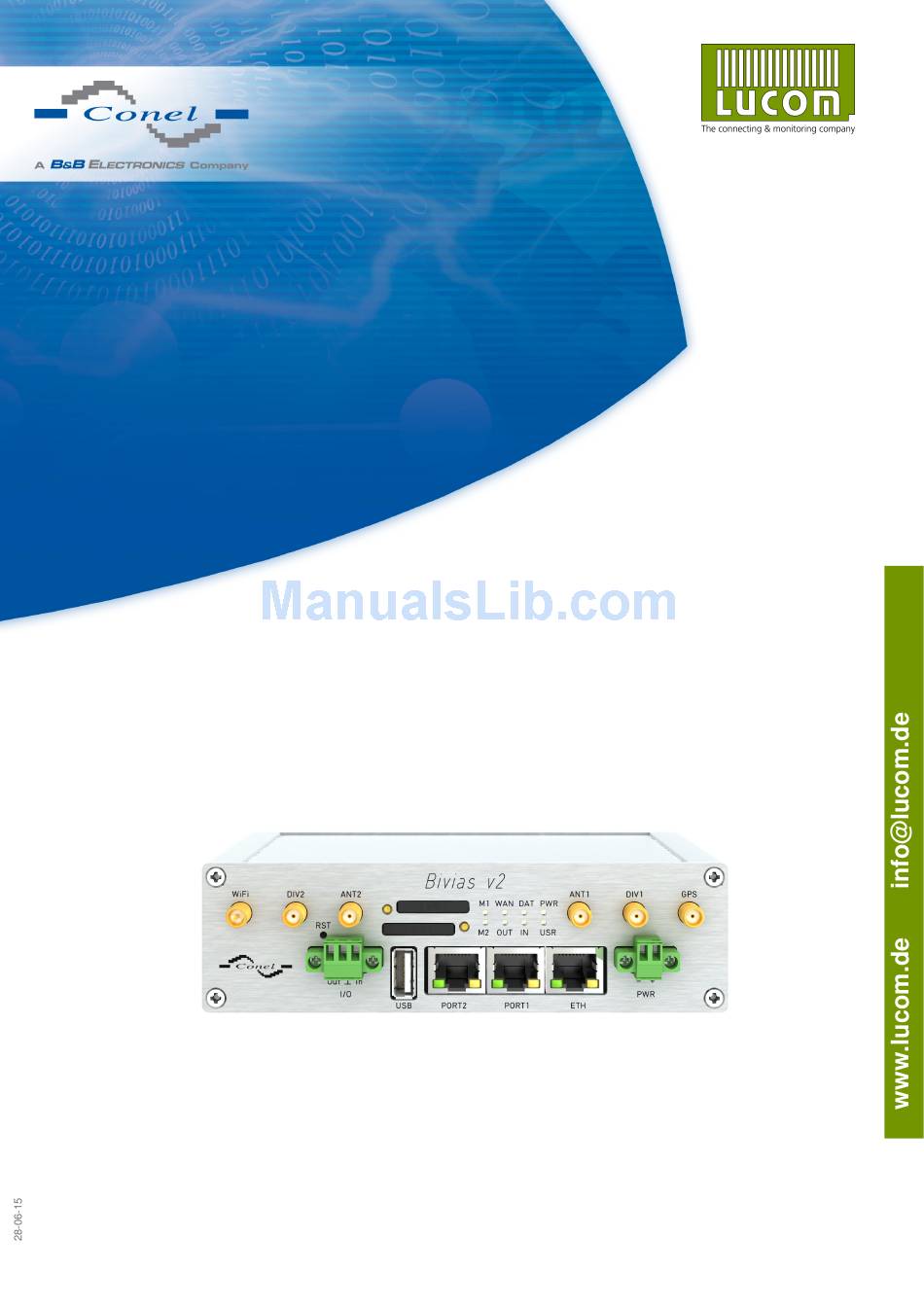

Two modular concept router
Bivias v2
USER'S MANUAL
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bivias v2 and is the answer not in the manual?

Questions and answers

Related Manuals for Conel Bivias v2

Summary of Contents for Conel Bivias v2

  • Page 1 Two modular concept router Bivias v2 USER’S MANUAL LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 2 Source codes under GPL license are available free of charge by sending an email to: info@conel.cz. Conel s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Manual issued in CZ, May 21, 2014 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 3: Table Of Contents

    CONTENTS Contents 1 Safety instruction 2 Product disposal instructions 3 Router description 4 Contents of package 5 Router design 5.1 Router versions ........5.2 Delivery identification .
  • Page 4 CONTENTS 7.3 Technical parameters of HSPA+ module ..... . 7.4 Technical parameters of CDMA module ..... . 7.5 Technical parameters of GPS .

  • Page 5: List Of Figures

    Removing from the DIN rail ......Front panel Bivias v2 SL .......

  • Page 6: List Of Tables

    LIST OF TABLES List of Tables Router versions ........Delivery identification .

  • Page 7: Safety Instruction

    1. SAFETY INSTRUCTION 1. Safety instruction Please, observe the following instructions: The router must be used in compliance with all applicable international and national laws and in compliance with any special restrictions regulating the utilization of the router in prescribed applications and environments. To prevent possible injury to health and damage to appliances and to ensure that all the relevant provisions have been complied with, use only the original accessories.

  • Page 8: Product Disposal Instructions

    2. PRODUCT DISPOSAL INSTRUCTIONS 2. Product disposal instructions The WEEE (Waste Electrical and Electronic Equipment: 2002/96/EC) directive has been introduced to ensure that electrical/electronic products are recycled using the best available recovery techniques to minimize the impact on the environment. This product contains high quality materials and components which can be recycled.

  • Page 9: Router Description

    (ATM) and other self-service terminals and machines. As a standard, Bivias v2 router is equipped with one Ethernet 10/100, one USB Host port, one binary Input/output (I/O) port and two SIM cards. The wide range of interface options of this router further expands an expansion ports designated as PORT1 and PORT2 which are mounted on the customer’s request.

  • Page 10: Contents Of Package

    4. CONTENTS OF PACKAGE 4. Contents of package Basic delivered set of router includes: router, power supply, crossover UTP cable, up to three external antennas, clip for the DIN rail, installation CD containing instructions, paper start guide. Figure 1: Contents of package The router can also be supplied as expansion accessories: Two expansion ports: ETHERNET,SWITCH or WIFI.

  • Page 11: Router Design

    5. ROUTER DESIGN 5. Router design 5.1 Router versions Bivias v2 router is supplied in the following versions: SIM1 SIM2 PORT1 PORT2 Bivias v2 LL SL Metal Bivias v2 LH SL Metal Bivias v2 LC SL Metal Bivias v2 HH SL...

  • Page 12: Example Of Bivias V2 Sl Label

    Bivias-v2 HSPA+/CDMA version in the metal box Table 2: Delivery identification Figure 3: Example of Bivias v2 SL label 5.3 Version of firmware module In the case of specifications with CDMA module applies that each operator may have a different CDMA network, so it is necessary to generate a special firmware for each operator.

  • Page 13: Ordering Codes

    Second expansion port is written after first expansion port in the ordering code. Example: Full version with Ethernet and WIFI port: Bivias v2 LL ETH WIFI SL set. Full version with Ethernet and WIFI port: Bivias v2 HC-01 ETH WIFI SL set.

  • Page 14: Basic Dimensions Of Metal Box

    5. ROUTER DESIGN 5.5 Basic dimensions of metal box Figure 4: Basic dimensions of metal box 5.6 Mechanical dimensions and mounting recommendations Mounting recommendations: possibility to be put on a work surface, DIN rail with clips CKD2 (ELPAC clip SL for metal version) are included. For the most of applications with a built-in router in a switch board it is possible to recognize two kinds of environments: no public and industry environment of low voltage with high interference,...

  • Page 15: Space Around Antennas

    5. ROUTER DESIGN before mounting a router on sheet-steel we recommend using an external antenna, Figure 5: Space around antennas For every cables we recommend to bind the bunch according to the following picture, we recommend for this use: – Length of the bunch (combination of power supply and data cables) can be max- imum 1,5 m.

  • Page 16: Space In Front Of Connectors

    5. ROUTER DESIGN Sufficient space must be left before individual connectors for handling of cables, Figure 7: Space in front of connectors For correct function of the router we recommend to use in the switch-board earth-bonding distribution frame for grounding of power supply of router, data cables and antenna. LUCOM GmbH * Ansbacher Str.

  • Page 17: Default Position Of Din Holder

    5. ROUTER DESIGN 5.7 Removing from the DIN rail Default position of CKD2 holder, which is used for mounting the router on a DIN rail, is shown in the following figure: Figure 8: Default position of DIN holder For removing from the DIN rail it is necessary to lightly push upward the router so that the top part of the CKD2 holder hitched to the DIN rail get out of this rail and then fold out the top part of the router away from the DIN rail.

  • Page 18: Front Panel Bivias V2 Sl

    Holder for the first SIM card. SIM2 — Holder for the second SIM card. Table 5: Front panel description Figure 10: Front panel Bivias v2 SL LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 19: Router Status Indication

    5. ROUTER DESIGN 5.8.1 Status indication About router status inform eight led indicators on the front panel and on every port are two LED indicators, which inform about port status. Caption Color State Description Green / Indicates the activity of the first module (green color). In Orange the case of "HC"...

  • Page 20: Power Connector Pwr

    5. ROUTER DESIGN 5.8.2 Power connector PWR Panel socket 2-pin. Pin number Signal mark Description VCC(+) Positive pole of DC supply voltage (+10 to +30 V DC) GND(-) Negative pole of DC supply voltage Table 7: Connection of power connector Figure 11: Power connector Power supply for router is required between +10 V to +30 V DC supply.

  • Page 21: External Antenna

    5.8.3 Antenna connector ANT1, ANT2, DIV1, DIV2, GPS and WiFi Both of main antennas and also both of diversity antennas are connected to Bivias v2 router using the SMA connector on the front panel. There is also available one SMA antenna connector using which GPS antenna can be connected (applies only to versions with LTE module).

  • Page 22: Ejected Sim Holder

    5. ROUTER DESIGN 5.8.4 SIM card reader The SIM card reader for 3 V and 1,8 V SIM cards is located on the front panel of the router. To initiate the router into operation it is necessary to insert an activated SIM card with un- blocked PIN in the reader.

  • Page 23: Ethernet Connector

    5. ROUTER DESIGN Figure 17: Ethernet connector ATTENTION! Port ETH is not POE (Power Over Ethernet) compatible! Ethernet cable plug into the RJ45 connector labeled as ETH (see figure below). Figure 18: Connection of ethernet cable Example of the ETH router connection: Figure 19: Example of router connection LUCOM GmbH * Ansbacher Str.

  • Page 24: Port1 Cable Connection

    5. ROUTER DESIGN 5.8.6 PORT1 The PORT1 is equipped on customer’s request with one of the offered expansion ports: ETHERNET SWITCH (together with PORT2) Description and examples of expansion ports connection can be found in user’s guide for corresponding expansion port. PORT1 cable plug into the RJ45 connector labeled as PORT1 (see figure below).

  • Page 25: Port2 Cable Connection

    5. ROUTER DESIGN PORT2 cable plug into the RJ45 connector labeled as PORT1 (see figure below). Figure 21: PORT2 cable connection 5.8.8 USB Port Panel socket USB-A. Signal mark Description Data flow direction +5 V Positive pole of 5 V DC supply voltage USB data - USB data signal –...

  • Page 26: Connection Plc To The Router

    5. ROUTER DESIGN Example of connecting devices with serial interface to the USB: Figure 23: Connection PLC to the router Example of connecting of USB flash disk to the USB: Figure 24: Connection flash memory to the router 5.8.9 I/O Port Panel socket 3pin.

  • Page 27: Connection Of I/O Cable

    5. ROUTER DESIGN Maximum load binary output is 30 V / 100 mA. The constant current supplied by the binary input is 3 mA. Connector I/O cable connect into the I/O connector on the router head and tighten locking screws (see figure below). Figure 26: Connection of I/O cable Circuit example of a binary input or output equipment with router: Figure 27: Connection of input and output to the router...

  • Page 28: Router Reset

    5. ROUTER DESIGN 5.8.10 Reset It is important to distinguish between reset and reboot the router. Action Router behavior Invoking events Reboot Turn off and then turn on router Disconnect and connect the power, Press the Reboot button in the web configuration Reset Restore default configuration and reboot...

  • Page 29: First Use

    6. FIRST USE 6. First use 6.1 Connecting the router before first use Before you give up the router, it is necessary to connect all components needed for the operation of your applications and the SIM card must be inserted (see figure below). The router can not operate without connected antenna, SIM card and power supply.

  • Page 30: Start

    6. FIRST USE 6.2 Start The router is set up connecting the power supply to the router. In the default setting the router starts to login automatically to the preset APN. Device on the Ethernet port DHCP server will assign addresses. The behavior of the router can be modified by means of the web or Telnet interface, which is described in the configuration manual.

  • Page 31: Technical Parameters

    7. TECHNICAL PARAMETERS 7. Technical parameters 7.1 Technical parameters of router Bivias v2 Complies with standards EN 301 511, v9.0.2, EN 301 908-1 & -2 & -13: v5.2.1, EN 301 489-1 v1.8.1, EN 301 489-7 v1.3.1, EN 301 489-24 v1.4.1,...

  • Page 32: Technical Parameters Of Hspa+ Module

    7. TECHNICAL PARAMETERS Continued from previous page LTE modul UMTS parameters PS bit rate 384 kbps (DL) / 384 kbps (UL) CS bit rate 64 kbps (DL) / 64 kbps (UL) W-CDMA FDD standard GPRS/EDGE parameters Bit rate 237 kbps (DL) / 59,2 kbps (UL) GPRS multislot class 10, CS 1 to 4 EDGE multislot class 12, CS 1 to 4, MCS 1 to 9...

  • Page 33: Technical Parameters Of Cdma Module

    7. TECHNICAL PARAMETERS 7.4 Technical parameters of CDMA module CDMA modul CDMA parameters Rev. A: Bit rate 3,1 Mbps (DL) / 1,8 Mbps (UL) Rev. B: Bit rate 14,7 Mbps (DL) / 5,4 Mbps (UL) Backward compatible with Rev.0 Transmit power +23,0 dBm +30,0 dBm Supported bands...

  • Page 34: Technical Parameters Of Processor

    7. TECHNICAL PARAMETERS 7.6 Technical parameters of processor 32b ARM mikroprocesor Memory 512 Mb DDR SDRAM 128 Mb FLASH 1 Mb MRAM Interface Serial interface RS232 Ethernet interface 10/100 Mbit/s USB 2.0 interface Table 17: Technical parameters of processor 7.7 Technical parameters I/O port 32b ARM mikroprocesor Input/Output Binary input...

  • Page 35: Recommended Literature

    8. RECOMMENDED LITERATURE 8. Recommended literature Conel: Start guide, Conel: Configuration manual, Conel: User’s manual – Expansion port ETH, Conel: User’s manual – Expansion port SWITCH, Conel: User’s manual – Expansion port WIFI, [12] Conel: Application guide – Expansion port mounting,...

  • Page 36: Possible Problems

    9. POSSIBLE PROBLEMS 9. Possible problems Some network cards are able to be set in situation, when it is not possible to connect the router. It is possible to solve this problem in the following steps: hand by selection communication rates 10 MB/s in property network cards, connect router over switch, start computer only after finalizing the start of the router.

  • Page 37: Faq

    10. FAQ 10. FAQ I can’t get from internet on equipment, which is connected to router and I have NAT en- abled. The device’s gateway has to be configured as the router. Router resets itself, connection on Ethernet fails. It is necessary to use an antenna, which will be situated far from power supply. I don’t get on web server at NAT.
  • Page 38 10. FAQ The operator doesn’t give out address DNS servers and without DNS server’s it is impossible to connect to server dyndns.org. In log system will be this message: – DynDNS daemon started – Error resolving hostname: no such file or directory –...

  • Page 39: Customers Support

    During cleaning of the router do not use aggressive chemicals, solvents and abrasive cleaners! Conel Company hereby declares that the router narrated in this user’s guide fits all basic de- mands of directive 1999/5/EC (R&TTE). Router fits values of coefficient SAR defined by association ICNIRP and values of "About pro- tection of health before non-ionized radiation".
