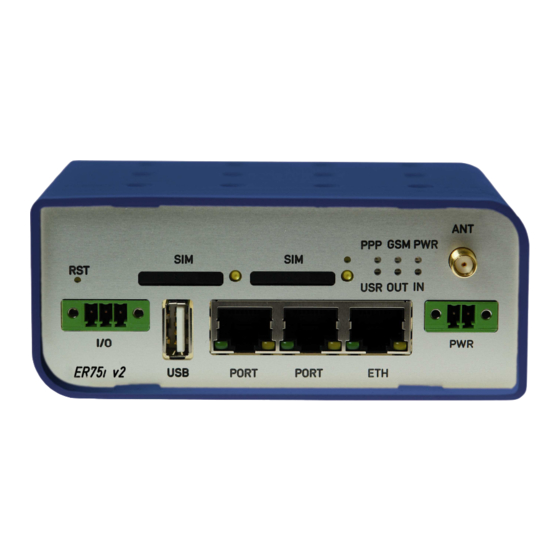

ER75i v2
EDGE router
ER75i v2 SL
and
USER'S GUIDE
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ER75i v2 and is the answer not in the manual?

Questions and answers

Related Manuals for Conel ER75i v2

Summary of Contents for Conel ER75i v2

  • Page 1 KOMPONENTEN & SYSTEME ER75i v2 EDGE router ER75i v2 SL USER’S GUIDE LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 2: Table Of Contents

    6.9. GPRS Configuration 6.10. Firewall Configuration 6.11. NAT Configuration 6.12. OpenVPN Tunnel Configuration 6.13. IPSec Tunnel Configuration 6.14. GRE Tunnels Configuration LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 3 Reference 10. FAQ 11. Customers support 12. Product disposal instructions 13. Guarantee Claim Guidelines 14. Guarantee certificate - 3 - 16.5.2011 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 4 ISO 9001 Conel s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Issue in CZ, 5/16/2011 - 4 - 16.5.2011 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 5: Safety Instruction

    It is recommended that you should create an appropriate copy or backup of all the important settings that are stored in the memory of the device. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 6: Description Of The Router

    • mobile office • fleet management • security system • telematic • telemetric • remote monitoring • vending and dispatcher machines LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 7: Delivery Identification

    Expansion port ETHERNET XC-ETH Internal power supply Expansion port M-BUSD XC-MBUSD External power supply Expansion port CNT XC-CNT Internal power supply LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 8: Antenna Connection

    DIN rail, the clips are included. 2.3. Antenna Connection The antenna is connected to the router using the SMA connector on the front panel. External antennas: LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 9: Sim Card Reader

    SMA – 50 Ohm User interface Ethernet (10/100 Mbit/s) USB 2.0 type A host PORT1 Optional RS232/RS485/ETHERNET/M-BUSD or inputs/outputs (I/O) PORT2 Optional RS232/RS485/M-BUSD LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 10: Description Of The Individual Components Of The Router

    The modem settings are saved in the FLASH memory. All modem configurations can be done through a web interface (HTTP), which is protected by security password. Actual firmware version: 2.1.1 (4.5.2011) LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 11: User Interfaces (Connectors)

    One MRT 3pin connector (I/O) – for connection of the binary input and output Front panel ER75i v2 SL. Front panel ER75i v2. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 12: Connection Of The Pwr Supply Connector

    Circuit example of a Binary or output equipment with router: +12 V Pin 1 - BIN Router Pin 2 - GND Pin 3 - OUT LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 13: Connection Of The Port1 Connector - Rs232

    KD2 is connected to serial port PC (example COM1) The router connection to equipment with full-value RS232 interface: Cable KD-2 Router PORT1 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 14: Connection Of The Port1 Connector - Rs485

    Circuit example of the equipment with a router with data cable length more than 10 m: With a RS485 data cable more than 10m it is necessary to use overvoltage protection on the router side! LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 15: Connection Of The Port1 Connector - Rs422

    Circuit example of the equipment with a router with data cable length more than 10 m: With a RS422 data cable more than 10m it is necessary to use overvoltage protection on the router side! LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 16: Connection Of The Port1 Connector - M-Busd

    Circuit example of the equipment with a router with data cable length more than 10 m: With a M-BUS data cable more than 10m it is necessary to use overvoltage protection on the router side! LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 17: Connection Of The Port1 Connector - Cnt

    Typical connection of the router measuring circuits: The router does not support to modify any signals of the CNT port, for example logical functions. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 18: Connection Of The Eth Connector

    USB data + USB data signal – positive pole Input/Output Negative pole of DC supply voltage The USB router connection: Router USB cable A-B PORT1 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 19: Technical Specification Of Optional Port1 And Port2

    J2 and J3 must be connected to pins 2 - 3. Internal power supply is made by connecting pins 1 - 2 with jumpers J2 and J3. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 20 The jumper circuitry for external supply Jumper J6 Jumpery J4 a J5 The jumper circuitry for RS485 The jumper circuitry for RS422 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 21 LED port indicator Indicates Receive data Green LED Yellow LED Indicates Transmit data Both LED lights Indicates short circuit on the MBUS LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 22 8µA. If current value is 20mA, CNT has higher consumption, also it has higher resistance to industrial noise. Jumper J4 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 23: Technical Specification Of Binary Input And Output

    Description by port (viz. Technical specification) Front Yellow SIM1 On......SIM card 1 is active Front Yellow SIM2 On......SIM card 2 is active LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 24: Putting Into Operation

    2.13. Mechanical external dimensions and mounting recommendations LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 25 • before mounting a modem on sheet-steel we recommend using an external antenna, LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 26 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 27 EXPANSION PORT MOUNTING • the circuit diagram of the modem is on the following pictures. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 28: Expansion Port Mounting

    (position 10). After mounting the expansion port the box is inserted motherboard into box and kneaded front head in the box. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 29 Description Number UMTS router motherboard Expansion port PORT1 Expansion port PORT2 Front head Spacers for expansion port PORT1 mounting to motherboard LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 30: Expansion Port Mounting For Er75I V2 Sl

    (position 10). After mounting the expansion port the box is screwed together by the help of four screws(position 11). Connector J3 Connector J8 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 31 Rear head Front head Bottom box part Top box part Spacers for expansion port PORT1 mounting to motherboard Screw for box completion LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 32: Changing The Sim Cards

    Second SIM card SIM2 changes, as well as SIM1. SIM card 2 SIM card 1 SIM card 2 SIM card 1 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 33: Ordering Code Routers

    Full version with ethernet and RS232 port: ER75i v2F set ETH RS232. • Full version with ethernet and RS232 port in Metallic cover: ER75i v2F SL set ETH RS232. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 34: Configuration Setting Over Web Browser

    RST on front panel. After press button RST it is restoration of the configuration and reset (green LED will be on). LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 35: Network Status

    It is possible to elicit PPP connection state from the network information. If the PPP connection is active, then it is in the system information shown as ppp0 connection. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 36: Dhcp Status

    The PPP Connection Log is in the bottom of this window where information about the make-up of the PPP connection is and pertinent problems on this formation. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 37: Ipsec Status

    Information on actual IPsec tunnel state can be called up in option IPsec in the menu. Detailed information on the description shown below can be found on the following link http://www.freeswan.org/doc.html. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 38: Dyndns Status

    "/etc/init.d/syslog" or add lines "killall syslogd" and "syslogd <options> &" into Startup Script. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 39: Lan Configuration

    IP address with address allotted by the help of DHCP, or collision of addresses may occur, thereby malfunctioning the network. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 40 CONFIGURATION Example of the network interface with dynamic DHCP server: 192.168.1.2 GSM/GPRS 192.168.1.1 192.168.1.3 192.168.1.4 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 41 CONFIGURATION Example of the network interface with dynamic and static DHCP server: 192.168.1.2 192.168.1.3 192.168.1.4 GSM/GPRS 192.168.1.1 192.168.1.10 01-23-45-67-89-ab 192.168.1.11 01-54-68-18-ba-7e LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 42 CONFIGURATION Example of the network interface with default gateway and DNS server: 192.168.1.2 192.168.1.3 192.168.1.4 GSM/GPRS 192.168.1.1 192.168.1.20 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 43: Vrrp Configuration

    LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 44 Virtual server ID 5 Host priority 255 APN 1 192.168.1.2 192.168.1.1 10.0.1.3 APN 2 Backup router 192.168.1.3 Virtual server ID 5 Host priority 100 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 45: Gprs Configuration

    SIM card, from which it will try to establish the PPP connection. If this parameter is set to none, the router launches in off-line mode and it is necessary to establish PPP connection via SMS message. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 46 Enable Dial-In Access function. Access can be secured by used the Username and Password. When the router is in offline mode, the router is permanently available via CSD connection. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 47 There will be allot Ip address of SIM card to PC. The changes in settings will apply after pressing the Apply button. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 48: Firewall Configuration

    ICMP. By parameter Target Port it is possible to specify a port number. The changes in settings will apply after pressing the Apply button. Caution! Firewall doesn’t filter via Ethernet. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 49 CONFIGURATION Example of the firewall configuration: TCP/1000 10.0.2.123 ICMP 171.92.5.45 142.2.26.54 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 50: Nat Configuration

    SNMP agent. Choice Masquerade outgoing packets option turns the system address translation NAT. The changes in settings will apply after pressing the Apply button. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 51 Connected equipment behind the router must have set Default Gateway on the router. Connected device replies, while PING on IP address of SIM card. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 52 CONFIGURATION Example of the configuration with more connected equipment: SWITCH 162.209.13.222 10.0.0.1:81 ppp0 10.0.0.1 192.168.1.2:80 10.0.0.1:82 10.0.0.1:83 192.168.1.3:80 192.168.1.4:80 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 53: Openvpn Tunnel Configuration

    Compression, compression has to be on both tunnel ends. By parameter NAT Rules it is possible to apply set NAT rules to OpenVPN tunnel. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 54 OpenVPN tunnel, for example DHCP options etc. The changes in settings will apply after pressing the Apply button. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 55 Remote Subnet Mask: 255.255.255.0 255.255.255.0 Local Interface IP Address: 19.16.1.0 19.16.2.0 Remote Interface IP Address: 19.16.2.0 19.18.1.0 Compression Authenticate mode: none none LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 56: Ipsec Tunnel Configuration

    IPsec tunnel, for example secure parameters etc. The changes in settings will apply after pressing the Apply button. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 57 CONFIGURATION LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 58: Gre Tunnels Configuration

    GRE tunnel. The column Create switches on tunnels, other columns contain values view set in the GRE Tunnel Configuration windows; configuration is possible by Edit button. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 59 Default Gateway 192.168.2.1 GRE tunnel Configuration: Remote External IP Address: 10.0.0.2 10.0.0.1 Remote Subnet: 192.168.2.0 192.168.1.0 Remote Subnet Mask: 255.255.255.0 255.255.255.0 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 60: L2Tp Configuration

    (Remote Subnet Mask), username for login to L2TP tunnel (Username) and password (Password). The changes in settings will apply after pressing the Apply button. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 61 Local IP Address: 192.168.3.1 Remote IP Address Remote Subnet 192.168.2.0 192.168.1.0 Remote Subnet Mask 255.255.255.0 255.255.255.0 Username username username Password password password LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 62: Dyndns Client Configuration

    IP address of the first DNS server, echo “nameserver yvy.yyy.yyy.yyy“ >> /etc/resolf.conf, where yvy.yyy.yyy.yyy is IP address of the second DNS server. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 63: Ntp Client Configuration

    CNT inputs status or by choosing Enable M-BUS extension and enter the Baudrate, Parity and Stop Bits it is possible to monitor the meter status connected to the expansion port LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 64 1. VIF – value information field .1.3.6.1.4.1.30140.2.2.<address>.9.0 1. measured value … … .1.3.6.1.4.1.30140.2.2.<address>.100.0 47. VIF – value information field .1.3.6.1.4.1.30140.2.2.<address>.101.0 47. measured value LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 65: Smtp Configuration

    Last item Own Email Address defines address of the sender. The changes in settings will apply after pressing the Apply button. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 66: Sms Configuration

    SMS message the router will be in this mode up to next restart. This behaviour is the same for all control SMS messages. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 67 Choices Enable AT-SMS protocol on external port and Enable AT-SMS protocol on TCP port mustn’t be chosen at the same time. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 68 After PPP disconnect, at introduction of the telephone number comes SMS in the form: ER75i v2 (Unit ID) has lost PPP connection. IP address xxx.xxx.xxx.xxx Configuration of sending this SMS is following: LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 69 CONFIGURATION Example of the router configuration for SMS sending via serial interface: LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 70 CONFIGURATION Example of the router configuration for controlling via SMS from every phone numbers: LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 71 List of all SMS messages AT+CMGR=<index> Read of the definite SMS (all SMS has our index) AT+CMGD=<index> SMS delete according to index LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 72 +CMGL: <index>, <status>,<sender number>, ,<date>,<time> SMS text. +CMGL: 1,“REC READ“,“+420721123456“, ,“08/01/12, 9:48:04+04“ Hello World! Received SMS is possible to delete by command AT+CMGD=<index>. AT+CMGD=1 Enter LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 73: Expansion Port Configuration

    Settings in application on PC: Settings in the router TCP connection on 10.0.0.2:2000 Mode: TCP server Server Address: - Default Gateway 192.168.1.1 TCP Port: 2000 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 74: Usb Port Configuration

    (Keepalive Time), waiting time on answer (Keepalive Interval) and number of tests (Keepalive Probes). The changes in settings will apply after pressing the Apply button LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 75 Settings in the router Mode: TCP server Mode: TCP client Server Address: - Server Address: 10.0.0.2 TCP Port: 2000 TCP Port: 2000 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 76: Startup Script

    The changes in settings will apply after pressing the Apply button. Change take effect after restarting router by the help of button Reboot in web administration or by SMS message. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 77: Up/Down Script

    IP address, from which the configuration file will be downloaded. In the case that Unit ID is empty, the contents of parameter Unite ID or MAC address is added to Base URL. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 78: Change Profile

    In basic settings of the router the password is set on default form root. For higher security of your network we recommend changing this password. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 79: Set Real Time Clock

    Phone number and text SMS (Message) and by pushing button Send. SMS message sending via HTTP request is in the form: GET /send_exec.cgi?phone=%2B420712345678&message=Test HTTP/1.1 Authorization: Basic cm9vdDpyb290 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 80: Backup Configuration

    Total update time lasts for 3 - 4 minutes. During updating of the firmware permanent power supply has to be maintained. We strongly recommend not using distant update because of blackout GPRS connection. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 81: Reboot

    RST on front panel. After press button RST it is restoration of the configuration and reset (green LED will be on). LAN Configuration 6.36.1. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 82: Vrrp Configuration

    CONFIGURATION VRRP Configuration 6.36.2. Firewall Configuration 6.36.3. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 83: Gprs Configuration

    CONFIGURATION GPRS Configuration 6.36.4. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 84: Nat Configuration

    CONFIGURATION NAT Configuration 6.36.5. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 85: Openvpn Tunnel Configuration

    CONFIGURATION OpenVPN Tunnel Configuration 6.36.6. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 86: Ipsec Tunnel Configuration

    CONFIGURATION IPsec Tunnel Configuration 6.36.7. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 87: Gre Tunnels Configuration

    CONFIGURATION GRE Tunnels Configuration 6.36.8. L2TP Tunnel Configuration 6.36.9. DynDNS Configuration 6.36.10. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 88: Ntp Configuration

    CONFIGURATION NTP Configuration 6.36.11. SNMP Configuration 6.36.12. SMTP Configuration 6.36.13. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 89: Sms Configuration

    CONFIGURATION SMS Configuration 6.36.14. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 90: Expansion Port Configuration

    CONFIGURATION Expansion Port Configuration 6.36.15. USB Port Configuration 6.36.16. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 91: Startup Script

    CONFIGURATION Startup script 6.36.17. Up/Down Script 6.36.18. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 92: Automatic Update

    CONFIGURATION Automatic update 6.36.19. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 93: Configuration Setting Over Telnet

    LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 94: Possible Problems

    IP address and by the help of the router address verify and address in ping. Firewall is possible to verify, for example by remote access on web interface. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 95: Customers Support

    Modem fits values of coefficient SAR defined by association ICNIRP and values of “About protection of health before non-ionized radiation“. Declaration about consistency was issued and is possible get it at producer. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 96: Product Disposal Instructions

    MUST NOT be mixed with other commercial waste for disposal. Check with the terms and conditions of your supplier for disposal information LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 97: Guarantee Claim Guidelines

    (including the exchange of the IMEI), the ownership of the original object of the guarantee claim is passed LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 98 (storm, mains over voltage, etc.). 7. Storage under conditions outside the temperature range. 8. Operation in a chemically aggressive environment. LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 99 LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...

  • Page 100: Guarantee Certificate

    14. Guarantee certificate Type of the device Serial number Guarantee period (in months) Seller Date of sale Stamp of the seller LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
  • Page 101 YES – NO YES – NO YES – NO New serial number of the device (IMEI) Comments Stamp of the repair shop LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de...
