Conel UR 5 User Manual

Conel UR 5 User Manual

Umts router
Hide thumbs Also See for UR 5:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

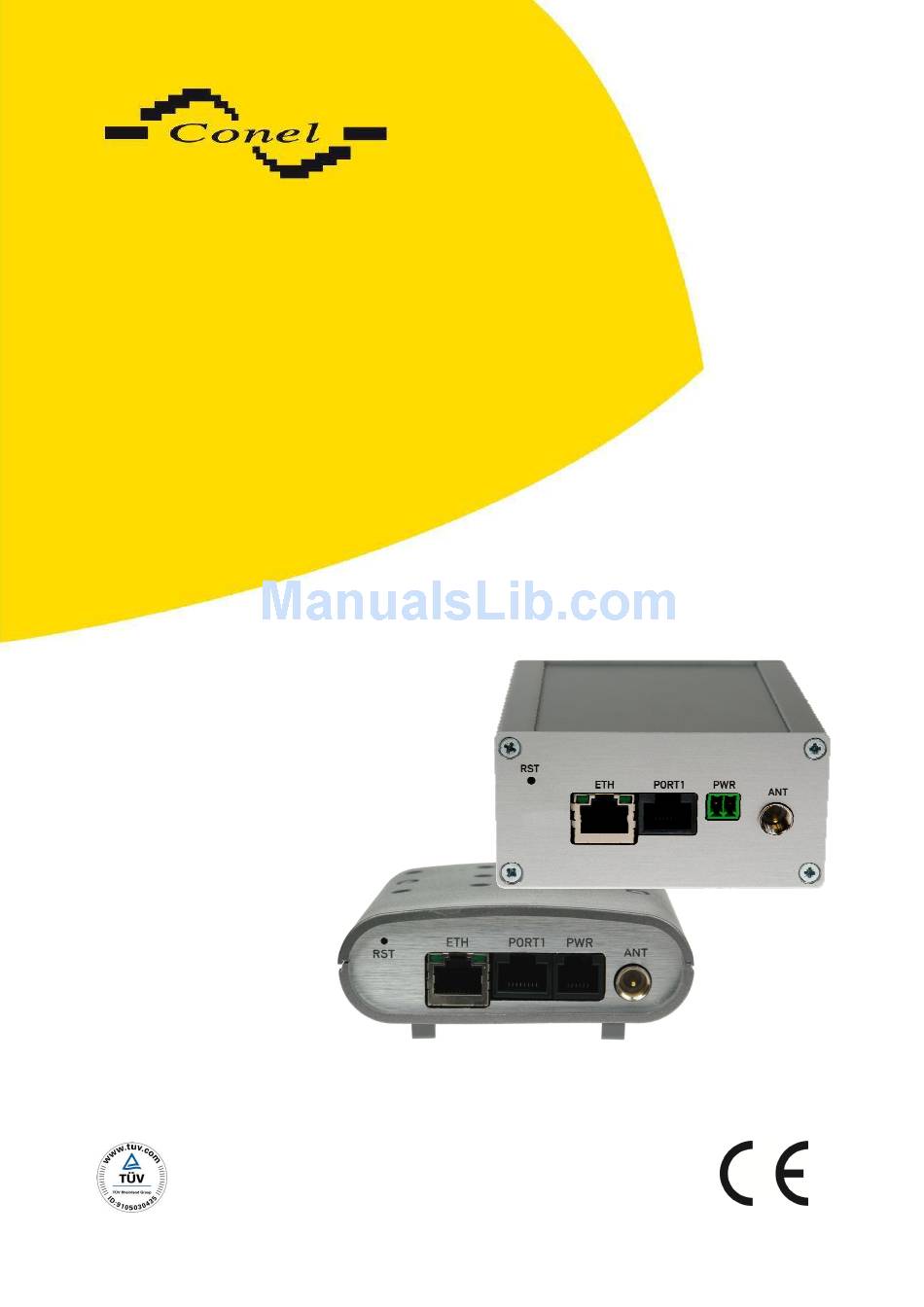

UMTS router
USER'S GUIDE
Declared system
ISO 9001:2009
UR 5
and
WWW.INFOPULSAS.LT
info@infopulsas.lt
UR 5 SL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UR 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Conel UR 5

Summary of Contents for Conel UR 5

  • Page 1 WWW.INFOPULSAS.LT info@infopulsas.lt UR 5 UR 5 SL UMTS router USER’S GUIDE Declared system ISO 9001:2009...

  • Page 2: Table Of Contents

    Expansion port mounting for UR 5 SL Changing the SIM cards 4.1. Changing the Second SIM card in the UR 5 router 4.2. Changing the second SIM card in the UR 5 SL router Configuration setting over web browser 5.1. Network Status 5.2.
  • Page 3 CONTENTS 5.16. DynDNS Client Configuration 5.17. NTP Client Configuration 5.18. SNMP Configuration 5.19. SMS Configuration 5.20. Expansion Port Configuration 5.21. USB Port Configuration 5.22. Startup Script 5.23. Automatic update configuration 5.24. Change profile 5.25. Change password 5.26. Set real time clock 5.27.
  • Page 4 Information, notice – information, which contains useful advice or special interest. GPL licence Source codes under GPL licence are available free of charge by sending an email to info@conel.cz. Conel s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Issue in CZ, 8/2/2010 - 4 - 2.8.2010...

  • Page 5: Safety Instruction

    SAFETY INSTRUCTION 1. Safety instruction Please, observe the following instructions: • The communication module must be used in compliance with all applicable international and national laws and in compliance with any special restrictions regulating the utilization of the communication module in prescribed applications and environments. •...

  • Page 6: Description Of The Router

    By customer request it is possible to equip the router with the PORT1 module and extend the function of the UMTS router about RS232, RS485/RS422, M-BUSD or CNT (I/O module). The UMTS router has two versions. The first version is basic UR 5 and the second version is UR 5 SL in the aluminum box.

  • Page 7: Hsdpa Technology (High Speed Download Packet Access)

    2.4. Delivery Identification Specimen Label: Trade name Type name Other UR 5 UR-5 Basic version UR 5 SL UR-5-SL Version in the aluminum box Example of expansion port PORT1: Trade name Type name Power supply Expansion port RS232 XC-232...

  • Page 8: Antenna Connection

    • adapter for use of a second SIM card. The router standard designed for: • mounting to a panel using through holes (only UR 5 version), • possibility to be put on a work surface, • for mounting onto a DIN rail, the plastic clips are included.

  • Page 9: Sim Card Reader

    EXPANSION PORT MOUNTING 2.6. SIM Card Reader The SIM card reader for 3 V and 1.8 V SIM cards is located on the front panel of the router, there is possibility inside the router in case of adapter for the second SIM card. To initiate the router into operation it is necessary to insert an activated SIM card with unblocked PIN in the reader.

  • Page 10: Technical Parameters

    EXPANSION PORT MOUNTING 2.8. Technical parameters HSDPA/UMTS/EDGE/GPRS module Complies with standards EN 301 511, v9.0.2, EN 301 908-1&2, v2.2.1, ETSI EN 301 489-1 V1.6.1, EN 60950-1:06 ed.2 HSDPA parameters 3GPP rel. 5 standard bitrate 3.6 Mbps/384 kbps UE CAT. 1 to 6, 11, 12 Data compress 3GPP TS25.212 UMTS parameters W-CDMA FDD standard...

  • Page 11: Description Of The Individual Components Of The Router

    EXPANSION PORT MOUNTING 2.9. Description of the individual components of the router 2.9.1. UMTS module The UMTS module is used for HSDPA/UMTS/EDGE/GPRS UMTS network wireless communication. It is integrated in the printed circuit board. The slide-out SIM card reader is accessible from the front panel.

  • Page 12: User Interfaces (Connectors)

    FME or SMA connector (ANT) – for connection of the antenna, • one USB-A Host connector (USB) – for connection of the devices to the router, USB supports equipments with PL-2303 and FTDI USB/RS232 converter. Front panel UR 5 Rear panel UR 5...
  • Page 13 EXPANSION PORT MOUNTING Front panel UR 5 SL Rear panel UR 5 SL...

  • Page 14: Connection Of The Pwr Supply Connector

    EXPANSION PORT MOUNTING 2.10.1. Connection of the PWR Supply Connector Panel socket RJ12. Signal Description number mark Positive pole of DC supply voltage (10 to 30 V) Signal not connected Signal not connected Positive pole of DC supply voltage (10 to 30 V) Negative pole of DC supply voltage Negative pole of DC supply voltage Circuit example:...

  • Page 15: Connection Of The Port1 Connector - Rs232

    EXPANSION PORT MOUNTING 2.10.2. Connection of the Port1 Connector – RS232 Panel socket RJ45 (RS232 – DCE – Data Communication Equipment). Signal Description Data flow direction number mark Request To Send Input Clear To Send Output Data Terminal Ready Input Data Set Ready –...

  • Page 16: Connection Of The Port1 Connector - Rs485

    EXPANSION PORT MOUNTING 2.10.3. Connection of the Port1 Connector – RS485 Panel socket RJ45. Signal Description Data flow direction number mark Signal and supply ground Signal and supply ground TxRx- RS485 B (-) Input/Output TxRx+ RS485 A (+) Input/Output TxRx- RS485 B (-) Input/Output TxRx+...

  • Page 17: Connection Of The Port1 Connector - Rs422

    EXPANSION PORT MOUNTING 2.10.4. Connection of the Port1 Connector – RS422 Signal Description Data flow direction number mark SGND Signal and power supply ground SGND Signal and power supply ground RxD- Receive Data (-) Output RxD+ Receive Data (+) Output TxD- Transmit Data (-) Input...

  • Page 18: Connection Of The Port1 Connector - M-Busd

    EXPANSION PORT MOUNTING 2.10.5. Connection of the Port1 Connector – M-BUSD Panel socket RJ45. Signal Description Data flow direction number mark Signal and supply ground Signal and supply ground TxRx- M-BUS B (-) Input/Output TxRx+ M-BUS A (+) Input/Output TxRx- M-BUS B (-) Input/Output TxRx+...

  • Page 19: Connection Of The Port1 Connector - Cnt

    EXPANSION PORT MOUNTING 2.10.6. Connection of the Port1 Connector – CNT Panel socket RJ45. Signal mark Description Data flow direction number BIN1/CNT1 Binary input/counter input Input BIN2/CNT2 Binary input/counter input Input BIN3 Binary input Input BIN4 Binary input Input Signal ground OUT1 Binary output (open collector) Output...

  • Page 20: Connection Of The Eth Connector

    EXPANSION PORT MOUNTING 2.10.7. Connection of the ETH Connector Panel socket RJ45. Signal mark Description Data flow direction number TXD+ Transmit Data – positive pole Input/Output TXD- Transmit Data – negative pole Input/Output RXD+ Receive Data – positive pole Input/Output RXD- Receive Data –...

  • Page 21: Technical Specification Of Optional Port1

    EXPANSION PORT MOUNTING 2.11. Technical specification of optional PORT1 • Expansion port RS232 Expansion port RS232 Power supply Internal ..Environment Operating temperature -20 .. +55 ° C Storage temperature -20 .. +85 ° C Standards Emission EN 55022/B Immunity ETS 300 342 Safety EN 60950...
  • Page 22 EXPANSION PORT MOUNTING Jumper J3 Jumper J3 Jumper J2 Jumper J2 The jumper circuitry for internal supply The jumper circuitry for external supply Jumper J6 Jumpery J4 a J5 The jumper circuitry for RS485 The jumper circuitry for RS422 • Expansion port M-BUSD Expansion port M-BUSD Power supply...

  • Page 23: Modem Status Indication

    Off ....... the network cable is not connected 2.13. Putting into operation Before putting the UR 5 or UR 5 SL router into operation it is necessary to connect all components needed for the operation of your applications and the SIM card must be inserted (the modem is off).

  • Page 24: Mechanical External Dimensions And Mounting Recommendations

    EXPANSION PORT MOUNTING 2.14. Mechanical external dimensions and mounting recommendations...

  • Page 25: Expansion Port Mounting For Ur

    EXPANSION PORT MOUNTING For the majority of applications with a built-in modem in a switch board it is possible to recognize two sorts of environments: • no public and industry environment of low voltage with high interference, • public environment of low voltage without high interference. For both of these environments it is possible to mount modems to a switch board, the following there is no need to have examination immunity or issues in connection with EMC according to EN 60439-1 ed.2:00 + A1:04.
  • Page 26 EXPANSION PORT MOUNTING • sufficient space must be left before individual connectors for handling of cables, • for correct function of the modem we recommend to use in the switch-board earth- bonding distribution frame for grounding of power supply of modem, data cables and antenna, •...
  • Page 27 EXPANSION PORT MOUNTING...

  • Page 28: Expansion Port Mounting

    3. Expansion port mounting 3.1. Expansion port mounting for UR 5 Attention! Expansion port PORT1 includes when the router UR 5 is switched off. After unscrewing two screws (position 8) on the box bottom part (position 3) and removing box top part (position 2) the expansion port PORT1 (position 6) connects to connector J3 (see below) of the router B-UR-5 motherboard (position 1) from the TOP side.
  • Page 29 EXPANSION PORT MOUNTING Parts list and description Part Description Number UMTS router UR 5 motherboard UR 5 box top part UR 5 box bottom part UR 5 rear head UR 5 front head Expansion port Spacers for expansion port PORT1 mounting to motherboard...

  • Page 30: Expansion Port Mounting For Ur 5 Sl

    EXPANSION PORT MOUNTING 3.2. Expansion port mounting for UR 5 SL Attention! Expansion port PORT1 include when the router UR 5 SL is switched off. After unscrewing four screws (position 10) on the rear panel (position 5) and removing it is possible to take out the B-UR-5 motherboard (position 1). The expansion port PORT1 (position 2) is connected to connector J3 (see below) of the router B-UR-5 motherboard (position 1) from TOP side.
  • Page 31 EXPANSION PORT MOUNTING Parts list and description Part Description Number UMTS router motherboard Expansion port PORT1 Left box part Right box part Rear head Front head Bottom box part Top box part Spacers for expansion port PORT1 mounting to motherboard Screw for box completion...

  • Page 32: Changing The Sim Cards

    The second SIM card holder is can not be bought itself. If need to add the second SIM card holder the router have to be send to Conel s.r.o. company. After unscrewing the two screws (position 6) on the box bottom part (position 3) and removing the box top part (position 2) the second SIM card (position 7) is on the router B-UR- 5 motherboard (position 1) from the TOP side (see below).
  • Page 33 CHANGE OF THE SIM CARDS Mounting the second SIM socket...

  • Page 34: Changing The Second Sim Card In The Ur 5 Sl Router

    Screw for box completion Adapter for the second SIM card 4.2. Changing the second SIM card in the UR 5 SL router The second SIM card holder is can not be bought itself. If need to add the second SIM card holder the router have to be send to Conel s.r.o. company.
  • Page 35 CHANGE OF THE SIM CARDS Mounting the second SIM socket Parts list and description Part Description Number UMTS router UR 5 motherboard Adapter for the second SIM card Left box part Right box part Rear head Front head Bottom box part...

  • Page 36: Configuration Setting Over Web Browser

    CONFIGURATION 5. Configuration setting over web browser Attention! If the SIM card is not inserted in the router, then it is impossible to operate. The inserted SIM card must have activated GPRS. Insert the SIM card when the router is switched-off.
  • Page 37 CONFIGURATION By each of the interfaces is then shown the following information: • HWaddr – hardware (unique) address of networks interface • inet – own IP address • P-t-P – IP address second ends connection • Bcast – broadcast address •...

  • Page 38: Dhcp Status

    CONFIGURATION 5.2. DHCP Status Information about IP addresses, which was leased to the router by the DHCP server, is possible to find in menu in sum DHCP: • lease 192.168.1.2 (generally IP address) – assigned IP address • starts – information about time of assignation of IP address •...

  • Page 39: Dyndns Status

    CONFIGURATION For the router with HC15 Cinterion module item UMTS/GPRS in the menu contains up-to-date information about signal quality of the selected cell only. 5.5. DynDNS status DynDNS up - dating entry result on server www.dyndns.org can be called up in option DynDNS item in the menu.

  • Page 40: Lan Configurationx

    CONFIGURATION Program syslogd can be started with two options that modifies its behaviour. Option "- S" followed by decimal number set maximal number of lines in one log file. Option "-R" followed by hostname or IP address enable logging to remote syslog daemon. For starting syslogd with these options you could modify script "/etc/init.d/syslog"...
  • Page 41 CONFIGURATION...
  • Page 42 CONFIGURATION Example of the network interface with dynamic DHCP server: 192.168.1.2 GSM/GPRS 192.168.1.1 192.168.1.3 192.168.1.4...
  • Page 43 CONFIGURATION Example of the network interface with dynamic and static DHCP server: 192.168.1.2 192.168.1.3 192.168.1.4 GSM/GPRS 192.168.1.1 192.168.1.10 01-23-45-67-89-ab 192.168.1.11 01-54-68-18-ba-7e...
  • Page 44 CONFIGURATION Example of the network interface with default gateway and DNS server: 192.168.1.2 192.168.1.3 192.168.1.4 GSM/GPRS 192.168.1.1 192.168.1.20...

  • Page 45: Vrrp Configuration

    CONFIGURATION 5.8. VRRP Configuration To enter the VRRP configuration select the VRRP menu item. VRRP protocol (Virtual Router Redundancy Protocol) is a technique, by which it is possible to forward routing from main router to backup router in the case of the main router failure. If the Enable VRRP is checked, then it is possible to set the following parameters.

  • Page 46: Umts/Gprs Configuration

    CONFIGURATION Example of the VRRP protocol: Main router Virtual server ID 5 Host priority 255 APN 1 192.168.1.2 192.168.1.1 10.0.1.3 APN 2 Backup router 192.168.1.3 Virtual server ID 5 Host priority 100 5.9. UMTS/GPRS Configuration To enter the GPRS connection configuration select the GPRS menu item. If the Create GPRS connection option is selected, the modem automatically tries to establish GPRS connection after switching-on.
  • Page 47 CONFIGURATION there will be the same PIN for both APN`s. Otherwise the SIM card can be blocked by false SIM PIN. The choice Get DNS address from operator is given for easier configuration on client side. If this field is filled in, then the router tries to get an IP address of primary and secondary DNS server from the operator automatically.
  • Page 48 CONFIGURATION In the last part of the window it is possible to define access over CSD connection by Enable Dial-In Access function. Access can be secured by used the Username and Password. When the router is in offline mode, the router is permanently available via CSD connection.

  • Page 49: Firewall Configuration

    CONFIGURATION 5.10. Firewall Configuration By the help of a firewall it is possible to set IP addresses from which are possible to remotely access the router. The choice Allow remote access only from specified hosts is given for easier configuration of hosts. In this firewall configuration it is possible to set up to four remote accesses by the help of Source, Source IP Address, Protocol and Target Port.

  • Page 50: Nat Configuration

    CONFIGURATION 5.11. NAT Configuration To enter the Network Address Translation configuration, select the NAT menu item. By checking Send all incoming packets to default server item setting the Default Server item it is possible to put the router into the mode in which all incoming data from GPRS will be routed to the computer with the defined IP address.
  • Page 51 CONFIGURATION In these configurations it is important to have marked choice of Send all remaining incoming packets it default server, IP address in this case is the address of the device behind the router. Connected equipment behind the router must have set Default Gateway on the router.
  • Page 52 CONFIGURATION In this configuration equipment wired behind the router defines the address Server IP Address. The router replies, while PING on address of SIM card. Access on web interface of the equipment behind the router is possible by the help of Port Forwarding, when behind IP address of SIM is indicating public port of equipment on which we want to come up.

  • Page 53: Openvpn Tunnel Configuration

    CONFIGURATION 5.12. OpenVPN Tunnel Configuration OpenVPN tunnel configuration can be called up by option OpenVPN item in the menu. OpenVPN tunnel allows protected connection of two networks LAN to the one which looks like one homogenous. In the OpenVPN Tunnels Configuration window are two rows, each row for one configured OpenVPN tunnel.
  • Page 54 CONFIGURATION...
  • Page 55 CONFIGURATION Example of the OpenVPN tunnel configuration: 192.168.1.2 192.168.2.2 ppp0 10.0.0.2 192.168.2.0 tun 0 19.16.2.0 ppp0 10.0.0.1 192.168.1.0 tun0 19.16.1.0 192.168.1.3 OpenVPN tunnel 192.168.2.3 192.168.1.4 192.168.2.4 Default Gateway 192.168.1.1 Default Gateway 192.168.2.1 OpenVPN tunnel configuration: Protocol UDP Port 1194 1194 Remote IP Address: 10.0.0.2 10.0.0.1...

  • Page 56: Ipsec Tunnel Configuration

    CONFIGURATION 5.13. IPSec Tunnel Configuration IPsec tunnel configuration can be called up by option IPsec item in the menu. IPsec tunnel allows protected connection of two networks LAN to the one which looks like one homogenous. In the IPsec Tunnels Configuration window are four rows, each row for one configured IPSec tunnel.
  • Page 57 CONFIGURATION...

  • Page 58: Gre Tunnels Configuration

    CONFIGURATION Example of the IPSec Tunnel configuration: 192.168.1.2 192.168.2.2 ppp0 10.0.0.2 192.168.2.0 ppp0 10.0.0.1 192.168.1.0 192.168.1.3 IPSec tunel 192.168.2.3 192.168.1.4 192.168.2.4 Default Gateway 192.168.1.1 Default Gateway 192.168.2.1 IPsec tunnel configuration: Remote IP Address: 10.0.0.2 10.0.0.1 Remote Subnet: 192.168.2.0 192.168.1.0 Remote Subnet Mask: 255.255.255.0 255.255.255.0 Local Subnet:...
  • Page 59 CONFIGURATION The tunnels are active after selecting Create x GRE tunnel. In the singles window it is possible to define the IP address of the remote side of the tunnel (Remote External IP Address), internal IP address of the local side of the tunnel (Local Internal IP Address), internal IP address of the remote side of the tunnel (Remote Internal IP Address), address of the network behind the remote side of the tunnel (Remote Subnet) and the mask of the network behind the remote side of the tunnel (Remote Subnet Mask).

  • Page 60: L2Tp Configuration

    CONFIGURATION 5.15. L2TP Configuration To enter the L2TP tunnels configuration, select the L2TP menu item. L2TP tunnel allows protected connection by password of two networks LAN to the one which it looks like one homogenous. The tunnels are active after selecting Create L2TP tunnel. In the window it is possible to define L2TP tunnel mode (Mode) on the router side, in case of client IP address of server (Server IP Address), start IP address in range, which is offered by server to clients (Client Start IP Address), end IP address in range, which is...

  • Page 61: Dyndns Client Configuration

    (Hostname), user name (Username) and password (Password). The changes in settings will apply after pressing the Apply button. Example of the DynDNS client configuration with domain conel.dyndns.org, username conel and password conel: If DNS servers are not assigned by the operator, then it is possible to configure it by inserting of script into start up window: echo “nameserver xxx.xxx.xxx.xxx“...

  • Page 62: Ntp Client Configuration

    CONFIGURATION 5.17. NTP Client Configuration NTP client Configuration can be called up by option NTP item in the menu. In the window can be defined the address prime (Primary NTP server Address) and secondary NTP server (Secondary NTP server Address), by the help of which the router, after first interface to the GPRS from make power supply, will adjust the inner clock.
  • Page 63 CONFIGURATION Every monitor value is uniquely identified by the help of number identifier OID - Object Identifier. OID is finished by „.9“. For the expansion port CNT the following range of OID is used: Description .1.3.6.1.4.1.30140.2.1.1.0 Analogy input AN1 (range 0-4095) .1.3.6.1.4.1.30140.2.1.2.0 Analogy input AN2 (range 0-4095) .1.3.6.1.4.1.30140.2.1.3.0...

  • Page 64: Sms Configuration

    It is important to set the IP address of the SNMP agent (router) in field Remote SNMP agent. After enter the IP address is in a MIB tree part is possible show object identifier. The path to objects is: iso->org->dod->internet->private->enterprises->conel->protocols. 5.19. SMS Configuration...
  • Page 65 CONFIGURATION It is possible to send controls SMS in the form: Description go online sim 1 Switch to SIM1 card go online sim 2 Switch to SIM2 card go online Switch router in online mode go offline PPP connection termination set out=0 Set output on 0 on the Expansion port CNT set out=1...
  • Page 66 Level – level signal After PPP connect, at introduction of the telephone number comes SMS in the form: UR 5 (Unit ID) has established PPP connection. IP address xxx.xxx.xxx.xxx After PPP disconnect, at introduction of the telephone number comes SMS in the form: UR 5 (Unit ID) has lost PPP connection.
  • Page 67 CONFIGURATION Example of the router configuration for SMS sending via serial interface: Example of the router onfiguration for controlling via SMS from every phone numbers:...
  • Page 68 CONFIGURATION Example of the router onfiguration for controlling via SMS from two phone numbers: The SMS is possible to do for example in HyperTerminal program. After establishing connection with the router via serial interface or Ethernet, it is possible to do with SMS by the help of the next AT commands (more about AT commands see reference [1]): AT commands Description...
  • Page 69 CONFIGURATION It is possible to find the new SMS by the help of command AT+CMGL=ALL. This command reproaches all SMS messages. AT+CMGL=ALL Enter +CMGL: <index>, <status>,<sender number>, ,<date>,<time> SMS text. +CMGL: 1,“REC UNREAD“,“+420721123456“, ,“08/02/02, 10:33:26+04“ Hello World! where <index> is ordinal number of the SMS, <status>...

  • Page 70: Expansion Port Configuration

    CONFIGURATION 5.20. Expansion Port Configuration The expansion port configuration can be called up by airbrush option External Port in menu. Inside the window can be defined Baudrate, number of Data bits, Parity, number of Stop bits, Protocol and Mode. Split timeout is for messages. In mode TCP server it is necessary to enter the TCP port, on which the router will listen to incoming requests about TCP connection.

  • Page 71: Usb Port Configuration

    CONFIGURATION ppp0 10.0.0.2 RS232 ppp0 10.0.0.1 RS232 Settings in the router Settings in the router Mode: TCP server Mode: TCP client Server Address: - Server Address: 10.0.0.2 TCP Port: 2000 TCP Port: 2000 5.21. USB Port Configuration The USB port configuration can be called up by airbrush option USB Port in menu. Inside the window can be defined Baudrate, number of Data bits, Parity, number of Stop bits, Protocol and Mode.

  • Page 72: Startup Script

    CONFIGURATION Example of USB port configuration: Equipment ppp0 10.0.0.2 ppp0 10.0.0.1 192.168.1.1 192.168.1.100 Settings in application on PC: Settings in the router TCP connection on 10.0.0.2:2000 Mode: TCP server Server Address: - Default Gateway 192.168.1.1 TCP Port: 2000 Equipment ppp0 10.0.0.2 ppp0 10.0.0.1 Settings in the router Settings in the router...

  • Page 73: Automatic Update Configuration

    CONFIGURATION 5.23. Automatic update configuration In the window Automatic update it is possible to set automatic configuration update. This choice enables that router automatically downloads configuration and the newest firmware from the server itself. The configuration and firmware are stores on the server.

  • Page 74: Change Password

    CONFIGURATION 5.25. Change password To open the dialog box for changing the access password select the Change Password menu item. The new password will be saved after pressing the Apply button. In basic settings of the router the password is set on default form root. For higher security of your network we recommend changing this password.

  • Page 75: Send Sms

    CONFIGURATION 5.29. Send SMS Sending SMS messages is possible in menu Send SMS. The SMS message will be sent after entering the Phone number and text SMS (Message) and by pushing button Send. SMS message sending via HTTP request is in the form: GET /send_exec.cgi?phone=%2B420712345678&message=Test HTTP/1.1 Authorization: Basic cm9vdDpyb290 HTTP request will be sent to TCP connection on router port 80 which sends an SMS...

  • Page 76: Reboot

    CONFIGURATION After successful firmware updating the following statement is listed: There is information about updating of the FLASH memory. By firmware actualization from 1.0.5 version the router configuration is remains include IP address. By actualization older firmware than 1.0.5 the IP address will be set on 192.168.1.1 and all values are in defaults state.

  • Page 77: Default Settings

    CONFIGURATION 5.34. Default settings After green LED starts to blink it is possible to restore initial settings of the router by pressing button RST on front panel. After press button RST it is restoration of the configuration and reset (green LED will be on). LAN Configuration 5.34.1.

  • Page 78: Firewall Configuration

    CONFIGURATION Firewall Configuration 5.34.3. UMTS/GPRS Configuration 5.34.4.

  • Page 79: Nat Configuration

    CONFIGURATION NAT Configuration 5.34.5. OpenVPN Tunnel Configuration 5.34.6.
  • Page 80 CONFIGURATION...

  • Page 81: Ipsec Tunnel Configuration

    CONFIGURATION IPsec Tunnel Configuration 5.34.7.

  • Page 82: Dyndns Configuration

    CONFIGURATION GRE Tunnels Configuration 5.34.8. L2TP Tunnel Configuration 5.34.9. DynDNS Configuration 5.34.10.

  • Page 83: Ntp Configuration

    CONFIGURATION NTP Configuration 5.34.11. SNMP Configuration 5.34.12. SMS Configuration 5.34.13.

  • Page 84: Usb Port Configuration

    CONFIGURATION Expansion Port Configuration 5.34.14. USB Port Configuration 5.34.15. Startup script 5.34.16.

  • Page 85: Automatic Update

    CONFIGURATION Automatic update 5.34.17.

  • Page 86: Configuration Setting Over Telnet

    CONFIGURATION 6. Configuration setting over Telnet Attention! If the SIM card isn’t inserted in the router, it is impossible for the router to operate. The Included SIM card must be activated for GPRS transmissions. Insert the SIM card when the router is switched off. Monitoring of status, configuration and administration of the router can be performed by means of the Telnet interface.

  • Page 87: Possible Problems

    PROBLEMS, KEEPING Possible problems Some network cards are able to be set in situation, when it is not possible to connect the router. It is possible to solve this problem in the following steps: hand by selection communication rates 10 MB/s in property network cards, connect router over switch, start computer only after finalizing the start of the router.

  • Page 88: Customers Support

    During cleaning of the modem do not use aggressive chemicals, solvents and abrasive cleaners! Conel Company hereby declares that the modem narrated in this user’s guide fits all basic demands of directive 1999/5/EC (R&TTE). Modem fits values of coefficient SAR defined by association ICNIRP and values of “About protection of health before non-ionized radiation“.

  • Page 89: Product Disposal Instructions

    PROBLEMS, KEEPING 11. Product disposal instructions The WEEE (Waste Electrical and Electronic Equipment: 2002/96/EC) directive has been introduced to ensure that electrical/electronic products are recycled using the best available recovery techniques to minimize the impact on the environment. This product contains high quality materials and components which can be recycled.

  • Page 90: Guarantee Claim Guidelines

    GUARANTEE 12. Guarantee Claim Guidelines Dear customer, The product that you have purchased was tested by the manufacturer and, before it was sold, the product’s functions were checked once more by our company’s technician. However if, in spite of the above-mentioned measures, a breakdown of this product occurs during the guarantee period, which makes proper utilization of the product impossible, we ask you to observe the Guarantee Claim Guidelines when asserting a guarantee claim.
  • Page 91 GUARANTEE hereupon onto the seller, and the ownership of the new product, onto the buyer. A new guarantee period starts running from the date of acceptance of the new product. In the event that the seller, upon agreement with the customer, has settled the guarantee claim by exchanging the object of the guarantee claim for a faultless product, the new guarantee of the product shall expire as follows: 1.
  • Page 92 GUARANTEE Other guarantee claim conditions The fact that the object of the guarantee claim does not correspond to parameters that have been set for other similar types of products can not be considered to be a defect. For the assessment whether a defect has occurred, the product parameters included in the technical documentation of the product are decisive.

  • Page 93: Guarantee Certificate

    GUARANTEE CERTIFICATE 13. Guarantee certificate Type of the device Serial number Guarantee period (in months) Seller Date of sale Stamp of the seller...
  • Page 94 GUARANTEE CERTIFICATE Date of reception of the guarantee claim by the seller Number of the guarantee claim report Date of reception of the device into the repair shop Date of completion of the repair by the repair shop Number of the receipt form of the repair shop Guarantee repair...
