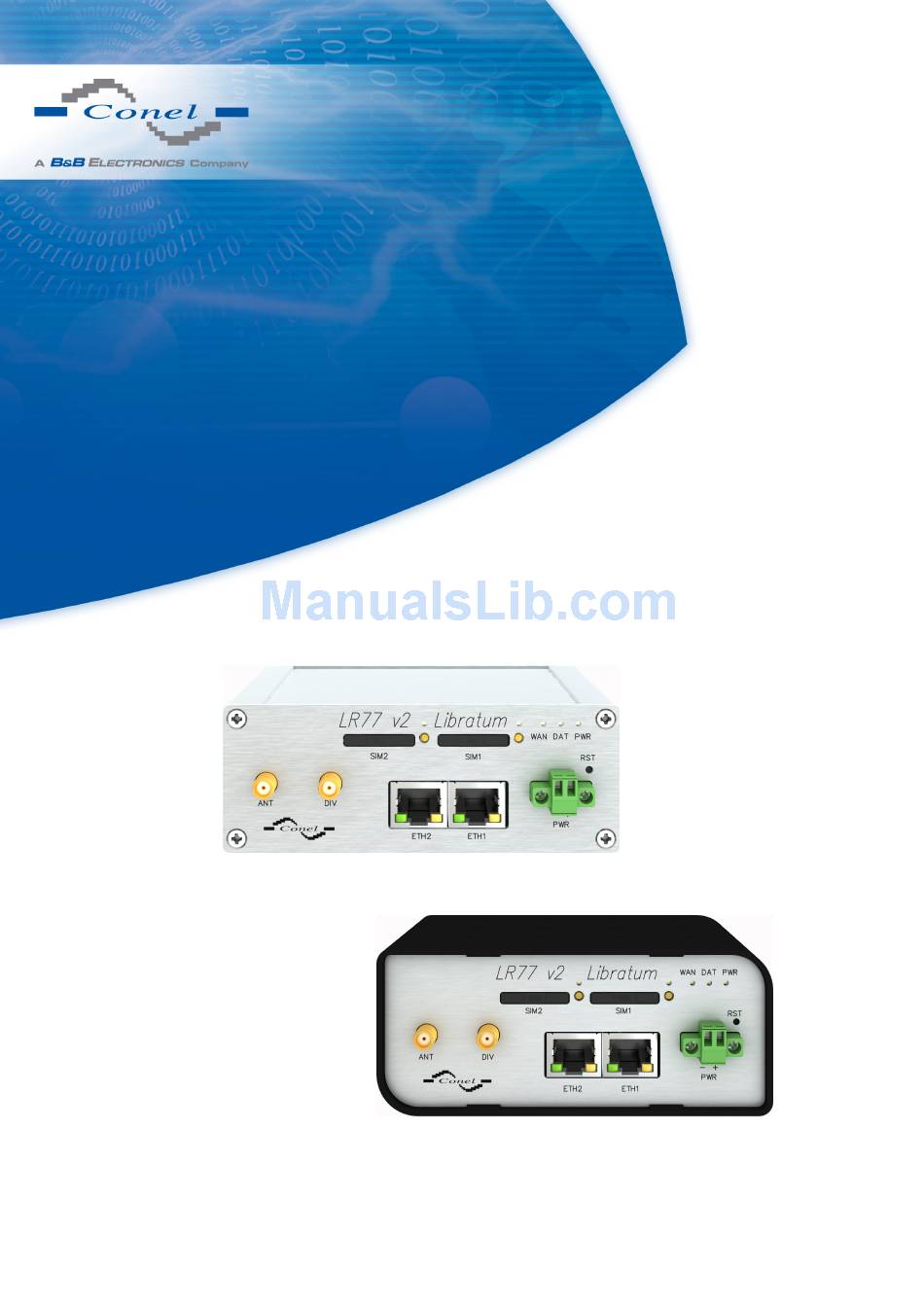

- Page 1 LTE router LR77 v2 Libratum USER’S MANUAL...
- Page 2 Information, notice – information, which contains useful advice or special interest. GPL license Source codes under GPL license are available free of charge by sending an email to: info@conel.cz. Conel s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Manual issued in CZ, August 18, 2014...
-
Page 3: Table Of Contents
CONTENTS Contents 1 Safety instruction 2 Product disposal instructions 3 Router description 4 Contents of package 5 Router design 5.1 Router versions ........5.2 Delivery identification . - Page 4 CONTENTS 10 FAQ 11 Customers support...
-
Page 5: List Of Figures
Contents of package ....... . . LR77 v2 Libratum ........ -
Page 6: List Of Tables
LIST OF TABLES List of Tables Router versions ........Delivery identification . -
Page 7: Safety Instruction
1. SAFETY INSTRUCTION 1. Safety instruction Please, observe the following instructions: The router must be used in compliance with all applicable international and national laws and in compliance with any special restrictions regulating the utilization of the router in prescribed applications and environments. To prevent possible injury to health and damage to appliances and to ensure that all the relevant provisions have been complied with, use only the original accessories. -
Page 8: Product Disposal Instructions
2. PRODUCT DISPOSAL INSTRUCTIONS 2. Product disposal instructions The WEEE (Waste Electrical and Electronic Equipment: 2002/96/EC) directive has been introduced to ensure that electrical/electronic products are recycled using the best available recovery techniques to minimize the impact on the environment. This product contains high quality materials and components which can be recycled. -
Page 9: Router Description
(ATM) and other self-service terminals, etc. As a standard, LR77 v2 Libratum wireless router is equipped with two Ethernet 10/100 and two SIM card holders. This wireless router is supplied either in a plastic or metal casing, based on the requirements of the customer. -
Page 10: Contents Of Package
4. CONTENTS OF PACKAGE 4. Contents of package Basic delivered set of router includes: router, power supply, crossover UTP cable, two external antennas, clip for the DIN rail, paper start guide. Figure 1: Contents of package... -
Page 11: Router Design
5. ROUTER DESIGN 5. Router design 5.1 Router versions LR77 v2 Libratum router is supplied in the following versions: SIM1 SIM2 ETH1 ETH2 LR77 v2 Libratum Plastic LR77 v2 Libratum SL Metal LR77 v2 Libratum WIFI Plastic LR77 v2 Libratum WIFI SL... -
Page 12: Label Example
2x Ethernet and 2x SIM, supplied in metal box LR77 v2 Libratum WIFI set includes 2x Ethernet, 2x SIM and 1x WIFI, supplied in plastic box LR77 v2 Libratum WIFI SL set includes 2x Ethernet, 2x SIM and 1x WIFI, supplied in metal box... -
Page 13: Basic Dimensions Of Plastic Box
5. ROUTER DESIGN 5.4 Basic dimensions of plastic box Figure 7: Basic dimensions of plastic box 5.5 Basic dimensions of metal box Figure 8: Basic dimensions of metal box... -
Page 14: Space Around Antennas
5. ROUTER DESIGN 5.6 Mechanical dimensions and mounting recommendations Mounting recommendations: possibility to be put on a work surface, DIN rail with clips CKD2 (ELPAC clip SL for metal version) are included. For the most of applications with a built-in router in a switch board it is possible to recognize two kinds of environments: no public and industry environment of low voltage with high interference, public environment of low voltage without high interference. -
Page 15: Cable Routing
5. ROUTER DESIGN For every cables we recommend to bind the bunch according to the following picture, we recommend for this use: – Length of the bunch (combination of power supply and data cables) can be max- imum 1.5 m. If the length of data cables exceeds 1.5 m or in the event of, the cable leads towards the switch –... -
Page 16: Default Position Of Din Holder
5. ROUTER DESIGN 5.7 Removing from the DIN rail Default position of CPD2 holder (or CKD2 holder for SL version), which is used for mount- ing the router on a DIN rail, is shown in the following figure: Figure 15: Default position of DIN holder For removing from the DIN rail it is necessary to lightly push upward the router so that the top part of the CPD2 holder (or CKD2 for SL version) hitched to the DIN rail get out of this rail and then fold out the top part of the router away from the DIN rail. -
Page 17: Front Panel Lr77 V2 Libratum
Connector for WIFI antenna (only for version with WIFI module). SIM1 — Holder for the first SIM card. SIM2 — Holder for the second SIM card (only FULL version). Table 3: Front panel description Figure 17: Front panel LR77 v2 Libratum Figure 18: Front panel LR77 v2 Libratum SL... -
Page 18: Router Status Indication
5. ROUTER DESIGN 5.8.1 Status indication About router status inform three LED indicators on the front panel and on every ETH port are two LED indicators, which inform about port status. Caption Color State Description Green Blinking Router is ready Starting of the router Fast blinking Updating firmware... -
Page 19: Power Connector Pwr
5. ROUTER DESIGN 5.8.2 Power connector PWR Panel socket 2-pin. Pin number Signal mark Description VCC(+) Positive pole of DC supply voltage (+10 to +30 V DC) GND(-) Negative pole of DC supply voltage Table 5: Connection of power connector Figure 19: Power connector Power supply for router is required between +10 V to +30 V DC supply. -
Page 20: External Antenna
5.8.3 Antenna connector ANT, DIV (and WIFI) Main and diversity antennas are connected to the router using the SMA connector on the front panel. For LR77 v2 Libratum with WIFI module is also available reverse SMA antenna connector, through which the WIFI antenna can be connected. -
Page 21: Ejected Sim Holder
5. ROUTER DESIGN 5.8.4 SIM card reader The SIM card reader for 3 V and 1.8 V SIM cards is located on the front panel of the router. To initiate the router into operation it is necessary to insert an activated SIM card with un- blocked PIN in the reader. -
Page 22: Ethernet Connector
5. ROUTER DESIGN Figure 25: Ethernet connector ATTENTION! Port ETH is not POE (Power Over Ethernet) compatible! Ethernet cable plug into the RJ45 connector labeled as ETH (see figure below). Figure 26: Connection of ethernet cable Example of the ETH router connection: Figure 27: Example of router connection... -
Page 23: Router Reset
5. ROUTER DESIGN 5.8.6 Reset It is important to distinguish between reset and reboot the router. Action Router behavior Invoking events Reboot Turn off and then turn on router Disconnect and connect the power, Press the Reboot button in the web configuration Reset Restore default configuration and reboot... -
Page 24: First Use
6. FIRST USE 6. First use 6.1 Connecting the router before first use Before you give up the router, it is necessary to connect all components needed for the operation of your applications and the SIM card must be inserted (see figure below). The router can not operate without connected antenna, SIM card and power supply. -
Page 25: Start
6. FIRST USE 6.2 Start The router is set up connecting the power supply to the router. In the default setting the router starts to login automatically to the preset APN. Device on the Ethernet port DHCP server will assign addresses. The behavior of the router can be modified by means of the web or Telnet interface, which is described in the configuration manual. -
Page 26: Technical Parameters
51 x 87 x 116 mm (DIN 35 mm) Metal box 42 x 87 x 113 mm (DIN 35 mm) Weight LR77 v2 Libratum – 150 g LR77 v2 Libratum SL – 280 g Antenna connector SMA – 50 Ohm User interface 2x ETH... -
Page 27: Technical Parameters Of Module
7. TECHNICAL PARAMETERS Continued from previous page LTE modul GPRS/EDGE parameters EDGE bit rate 237 kbps (DL) / 237 kbps (UL) GPRS bit rate 85.6 kbps (DL) / 85.6 kbps (UL) Multislot class 12, CS 1 to 4, 3GPP rel. 99/4 standard Support channels Quad band LTE: 800/900/1800/2600 MHz Tri band UMTS (WCDMA): 900/1800/2100 MHz... -
Page 28: Recommended Literature
8. RECOMMENDED LITERATURE 8. Recommended literature Conel: Start guide, Conel: Configuration manual, Conel: User’s manual – Expansion port ETH, Conel: Application guide – Programmer guide. -
Page 29: Possible Problems
9. POSSIBLE PROBLEMS 9. Possible problems Some network cards are able to be set in situation, when it is not possible to connect the router. It is possible to solve this problem in the following steps: hand by selection communication rates 10 MB/s in property network cards, connect router over switch, start computer only after finalizing the start of the router. - Page 30 10. FAQ 10. FAQ I can’t get from internet on equipment, which is connected to router and I have NAT en- abled. The device’s gateway has to be configured as the router. Router resets itself, connection on Ethernet fails. It is necessary to use an antenna, which will be situated far from power supply. I don’t get on web server at NAT.
- Page 31 10. FAQ The operator doesn’t give out address DNS servers and without DNS server’s it is impossible to connect to server dyndns.org. In log system will be this message: – DynDNS daemon started – Error resolving hostname: no such file or directory –...
-
Page 32: Customers Support
During cleaning of the router do not use aggressive chemicals, solvents and abrasive cleaners! Conel Company hereby declares that the router narrated in this user’s guide fits all basic de- mands of directive 1999/5/EC (R&TTE). Router fits values of coefficient SAR defined by association ICNIRP and values of "About pro- tection of health before non-ionized radiation".
