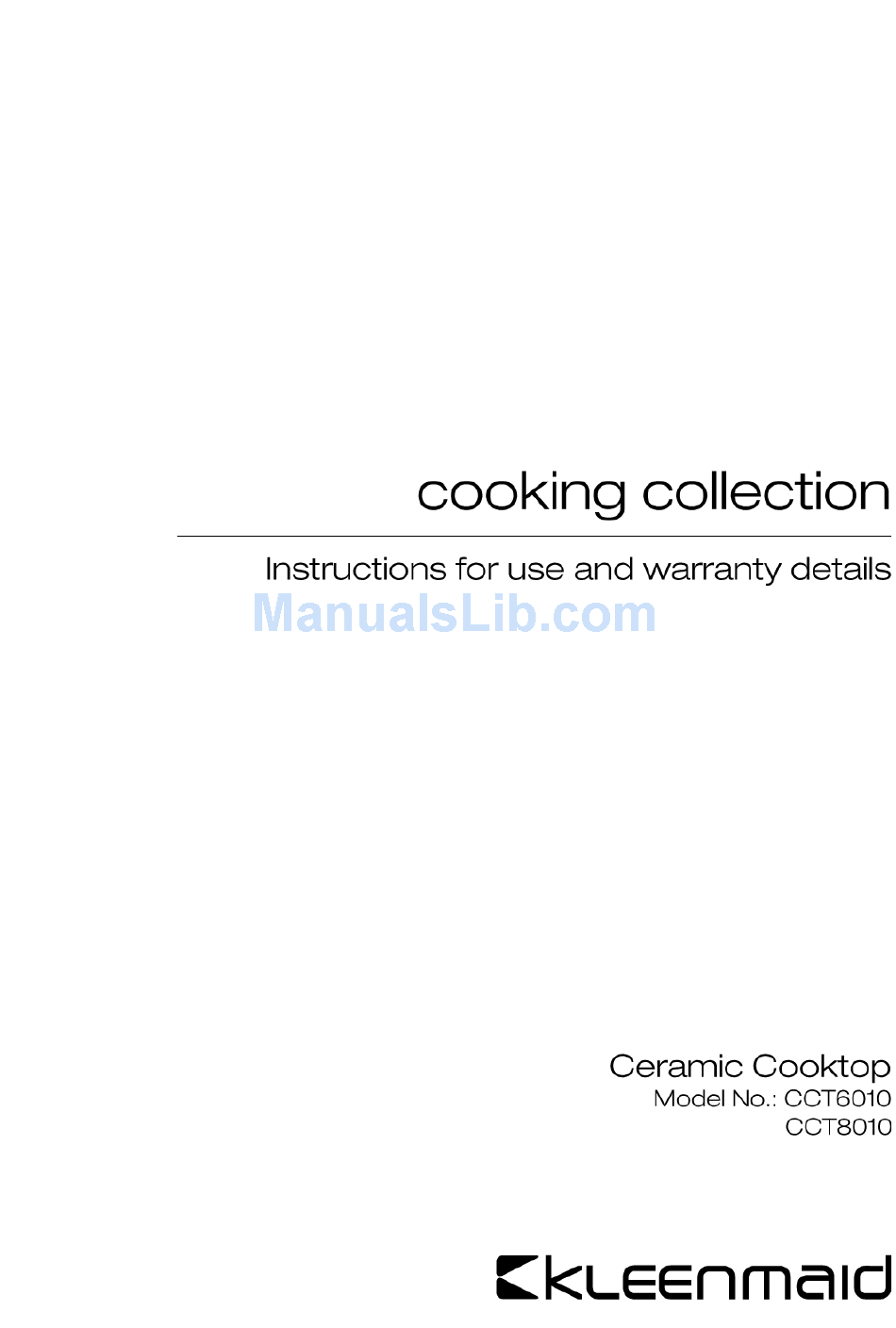

- Page 2 Once installation is complete, please read this instruction manual carefully and get to know the controls and the features of your new Kleenmaid appliance. These simple instructions will enable you to achieve excellent results from the very first time you use it.
-
Page 5: Table Of Contents
SUMMARY SAFETY ..................................4 ............................4 RECAUTIONS BEFORE USING ..............................4 SING THE APPLIANCE ......................5 RECAUTIONS NOT TO DAMAGE THE APPLIANCE ......................6 RECAUTIONS IN CASE OF APPLIANCE FAILURE ..............................6 THER PRECAUTIONS DESCRIPTION OF THE APPLIANCE ..........................6 ............................ -
Page 6: Safety
SAFETY Precautions before using • Unpack all the materials. • The installation and connection of the appliance must be done by a qualified electrician. The manufacturer can not be responsible for damage caused by building-in or connection errors. • The appliance must be installed in proper worktop. •... -
Page 7: Precautions Not To Damage The Appliance
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety. •... -
Page 8: Precautions In Case Of Appliance Failure

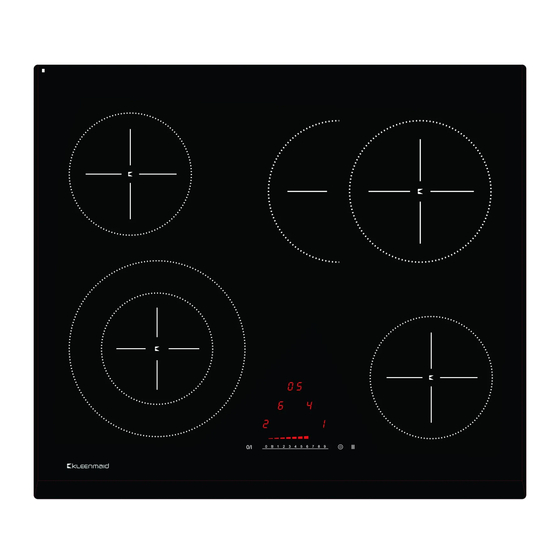

Nominal Power Diameter Front left 1000 / 2200 W 135 / 210 mm Rear left 1200 W 145 mm CCT6010 7000 W Rear right 1500 / 2400 W 170 x 265 mm Front right 1200 W 145 mm Front left... -
Page 9: Use Of The Appliance
Control panel Control light timer Timer display Power display Control light cooking zone Control light extension Control light Pause/Recall Control light On/Off Extension Pause/Recall Power selection zone “SLIDER” and timer On/Off key zone setting zone USE OF THE APPLIANCE Sensitive touch Your ceramic hob is equipped with electronic controls with sensitive touch keys. -
Page 10: Starting-Up And Appliance Management
STARTING-UP AND APPLIANCE MANAGEMENT Before the first use Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent. This may cause blue- tinted colour on the glass surface. “SLIDER” zone and timer setting zone To select the power with the slider, slide your finger on the “SLIDER”... -
Page 11: Timer
Timer The timer can be used simultaneous with all 4 heating zones and with different time settings (from 0 to 99 minutes) for each heating zone. • Setting and modification of the cooking time : Example for 16 minutes at power 7: Action Control panel Display... -
Page 12: Automatic Cooking
Automatic cooking All the cooking zones are equipped with an automatic “go and stop” cooking function. The cooking zone starts at full power for a certain time, then reduces automatically its power to the pre-selected level. • Start-up : Action Control panel Display Zone selection... -
Page 13: Control Panel Locking
Control panel locking To avoid accidentally activating or interfering with a setting of cooking zones, in particular during cleaning, the control panel can be locked (with exception of the On/Off key [ 0/I ]). • Locking : Action Control panel Display Start press on key [ 0/I ]... -
Page 14: Cooking Advice
COOKING ADVICE Examples of cooking power setting (The values below are indicative) 1 to 2 Melting Sauces, butter, chocolate, gelatine Reheating Dishes prepared beforehand 2 to 3 Simmering Rice, pudding, sugar syrup Defrosting Dried vegetables, fish, frozen products 3 to 4 Steam Vegetables, fish, meat 4 to 5... -
Page 15: What To Do In Case Of A Problem
WHAT TO DO IN CASE OF A PROBLEM The hob or the cooking zone doesn’t start-up : • The connection to the network is wrong. • The protection fuse has disconnected. • The locking function is activated. • The sensitive keys are covered with grease or water. •... -
Page 16: Installation Instructions
Depth Width Depth Ref. Thickness CCT6010 CCT8010 • Ensure that there is a distance of 50 mm between the hob and the wall or sides. • The hobs are classified as “Y” class for heat protection. Ideally the hob should be installed with plenty of space on either side. -
Page 17: Electrical Connection
ELECTRICAL CONNECTION • The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously. • Protection against the parts under tension must be ensured after the building-in. •... -
Page 19: Warranty And Service
Purchase even though this warranty is in place will not bind Compass Capital Services trading as Kleenmaid to repair the appliance at no charge under this warranty and will require the Purchaser to pay for the service costs in full. - Page 20 Other products available in the Kleenmaid range of appliances Washing machines Clothes dryers Dishwashers Ovens Cooktops Steam ovens Microwave ovens Built in espresso coffee machines Rangehoods Freestanding ovens Compass Capital Services Pty Limited trading as Kleenmaid ABN 96138214525 Level 2, 204 Botany Road Alexandria NSW 2015 E: help@kmaid.com.au...
