Page 1: Instructions For Use

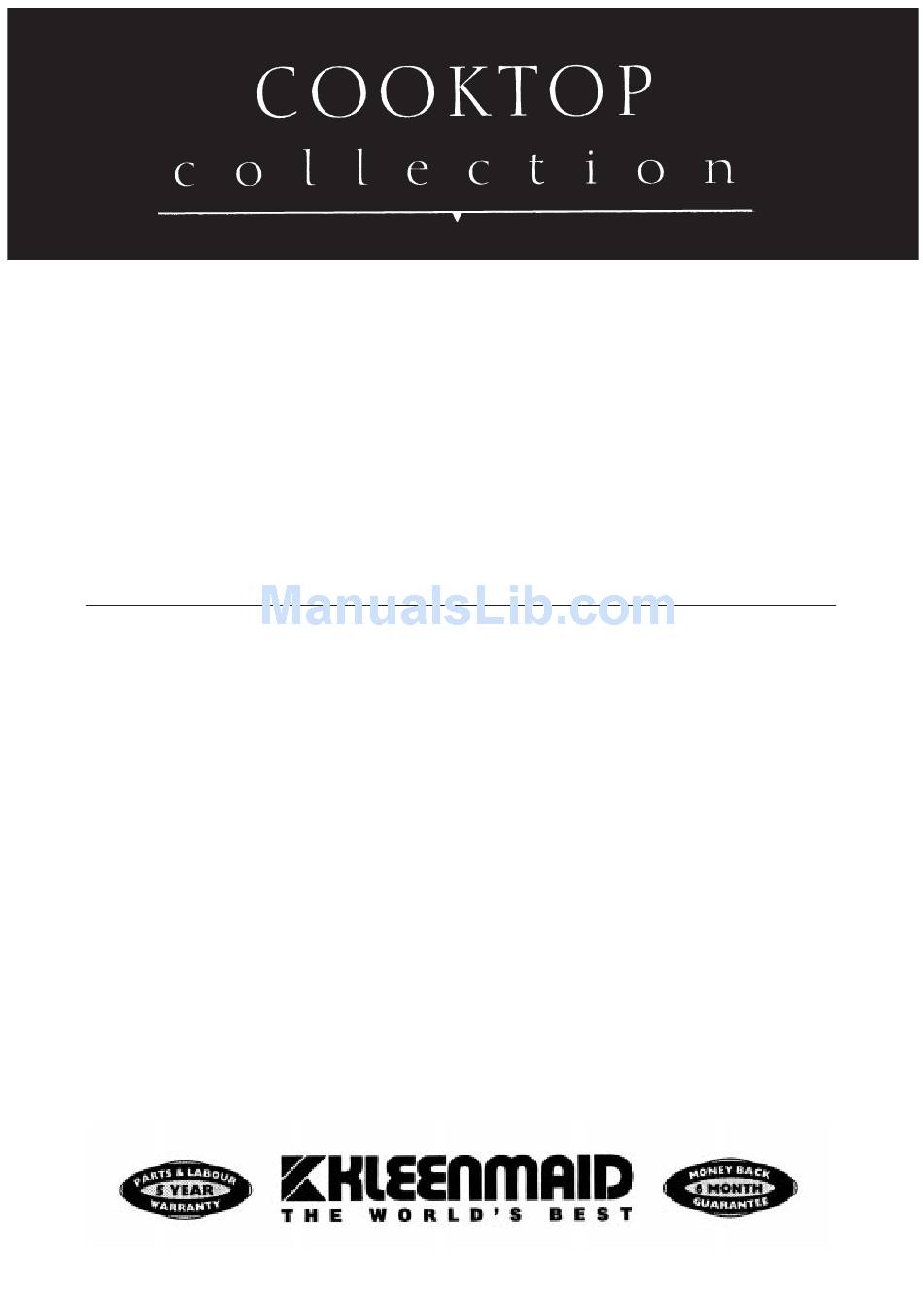

Instructions for Use and Warranty Details Gas Cooktops CH24 - 60cm White CH25 - 60cm Stainless Steel CH26 - 60cm Black CH35 - 90cm Stainless Steel CH84W - 60cm White - Flame Failure CH85S - 60cm Stainless Steel - Flame Failure... - Page 2 Kleenmaid appliance. This appliance has been designed and manufactured to give you years of reliable performance. For best results, carefully read the instructions on how to install your new appliance. Correct installation will avoid delays and unnecessary service calls.
-
Page 3: Installation
INSTALLATION CAUTION: CLEARANCES: Installation clearances and protection of combustible This appliance must be installed in accordance with surfaces shall comply with section 5.12 of AG 601 - 1995. these installation instructions and the requirements of the local gas authority or the appropriate installation code issued by the A.L.P.G.A. - Page 4 5.12.1.2 of AG 601. However, in no case shall this clearance to any surface be less than 450 mm. Figure 2 DIMENSIONS (Table 2): Models: CH24 - CH25 - CH26 CH84W - CH85S - CH86B (Note: Also refer to Figure 2 side) General Dimensions...
-
Page 5: Gas Supply
INSTALLATION (Refer to Figures 4 and 5): 1. Spread out the gasket “C” over the workbench at the edge of the cut out taking care to overlap the gasket at the corners. 2. Slot in the cooking hob into the cut out of the workbench and locate it correctly. -
Page 6: Injector - Replacement
INJECTOR REPLACEMENT: MINIMUM BURNER SETTING ADJUSTMENT: This appliance is suitable for use with Natural Gas or LPG. (Check the “gas type” sticker attached to the To regulate the flame follow the instructions below: appliance.) The nominal gas consumption and injector size •... -
Page 7: Electrical Requirements
8. Replace and reassemble in reverse order. 9. Check for gas leaks with soapy water. WIRING DIAGRAM: Figure 10 Figure 9 CH24 - CH25 - CH26 CH35 - CH95S CH84W - CH85S - CH86B Ignition Ignition Switch... -
Page 8: Use And Care
Figure 11 Semi rapid Semi rapid burner no. 1 burner no. 2 CH24 - CH25 - CH26 CH84W - CH85S - CH86B Operates right rear burner Operates left rear burner Operates left front burner Operates right front burner... - Page 9 CORRECT USE OF DOUBLE-RING Check that the electricity is switched on to allow spark ignition. BURNER Make sure that all controls are turned to zero. The flat-bottomed pans are to be placed directly onto the pan-support. The gas flow to the burner is controlled by a knob operating on a safety tap.
-
Page 10: Cleaning And Maintenance
CLEANING AND MAINTENANCE SERVICE AND MAINTENANCE If the ignition spark fails to operate or does not light the GENERAL ADVICE gas check the following items before calling the authorized It is advisable to clean when the appliance is cold and service agent: especially when cleaning the enamelled parts. -
Page 11: Warranty And Service
In addition to all statutory rights which you, the Consumer, have under the relevant laws in respect of this appliance, during the first five years of ownership as the original purchaser of this Kleenmaid appliance, we garantee that any fault caused by faulty material or workmanship becoming apparent will be rectified free of charge for parts and labour, provided that all service is performed during normal working hours by Kleenmaid or their designated Agents. - Page 12 • - 1101156.1 • Ed. 2 ß8...
