Dunlop CBM95 CRY BABY MINI WAH - Guitar Pedal Setup Manual

POWER

The Cry Baby Mini Wah is powered by one 9-volt battery (accessed via the bottom of the pedal), an AC adapter such as the Dunlop ECB003/ECB003EU, or a DC Brick power supply.

SETUP INSTRUCTIONS

Run a shielded instrument cable from your guitar to the CBM95's INSTRUMENT jack.
Run another shielded instrument cable from the CBM95's AMPLIFIER jack into your amplifier input.
Turn on the amplifier and begin playing.
To turn the pedal on/off, push the toe of the pedal down until you feel a "click."
By rocking your foot back and forth on the pedal, you can instantaneously change the effect that the Cry Baby Wah has on the tone of your instrument.
Located under the rocker at the heel of the pedal is an adjustable torque clutch. Turn clockwise to increase resistance or counterclockwise to decrease resistance (Wrench included).

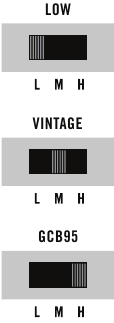

Internal VOICING switch allows you to change the frequency range of the CBM95. To access, remove bottom plate. Default setting is H—High, for the standard GCB95 sound. For a more vintage, midrange-focused sound, set the switch to M. For a lower frequency range, select L.

SAMPLE SETTINGS

SPECIFICATIONS

Impedance
Input	800 kΩ
Output	10 kΩ
Resonant Frequency
Heel Down	350 Hz - 450 Hz
Toe Down	1.5 kHz - 2.5 kHz
Maximum Level
Input	-8.0 dBV
Output	+10 dBV
Maximum Gain
Heel Down	+19.5 dB
Toe Down	+19.0 dB
Bypass	True Hardwire
Noise Floor *
Heel Down	-98 dBV
Toe Down	-89 dBV
Current Draw	900 µA
*A-weighted, OdBV = 1V_RMS
