- Page 1 jimdunlop.com/DVP5...

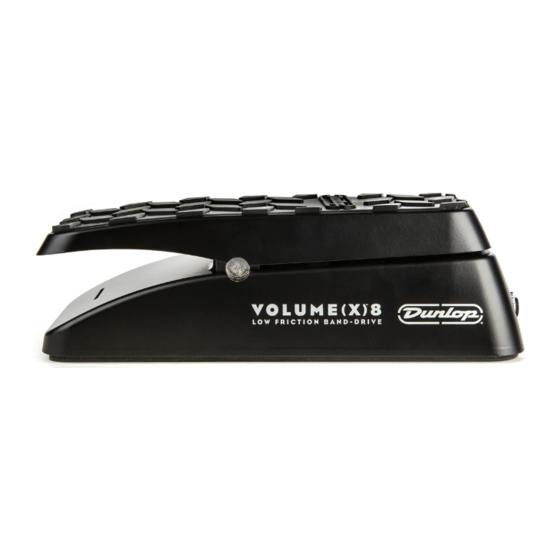

- Page 2 FX parameters with the road-proven, patented Low Friction Band-Drive. Internal controls set the expression mode’s minimum effect level parameters and the rocker’s heel/toe polarity. Features Volume, FX, Output, and Tuner jacks. DVP5 | VOLUME (X)8 PEDAL...
-
Page 3: External Features
EXTERNAL FEATURES FX JACK FOR EXPRESSION CONTROL OF EFFECT PARAMETER TUNER JACK FOR CONSTANT SIGNAL TO TUNER OUTPUT JACK FOR VOLUME SIGNAL CONTROL DVP5 | VOLUME (X)8 PEDAL... -
Page 4: Internal Controls
INTERNAL CONTROLS INTERNAL 50 KΩ POT FOR SETTING MINIMUM HEEL-DOWN VALUE, WIRED IN SERIES WITH EXPRESSION POT INTERNAL SWITCH FOR REVERSING FOOT/HEEL POLARITY DVP5 | VOLUME (X)8 PEDAL... -
Page 5: General Operation
To adjust rocker pedal torque, place pedal in toe- down position. Insert a 1/4” flat blade screwdriver into torque adjust screw located under heel-end of rocker pedal. Turn clockwise to increase resistance or counterclockwise to decrease resistance. DVP5 | VOLUME (X)8 PEDAL...
