G A L A X Y N A S L X C O N F I G U R A T I O N

4.0. Troubleshooting

This section of the manual will be used to troubleshoot problems with the GalaxyNASLX2 .
Warranties and on site service repairs may be applicable and replacement product may be
available to you to repair your GalaxyNASLX2. Consult with your Rorke Sales person for
warranty and service options. Contact
techsupport@rorke.com for technical help.
4.1.0 GalaxyNASLX2 chassis
The GalaxyNASLX2 has many error checking abilities and built in sensors to help with the
basic troubleshooting of failures that can occur with the GalaxyNASLX2.

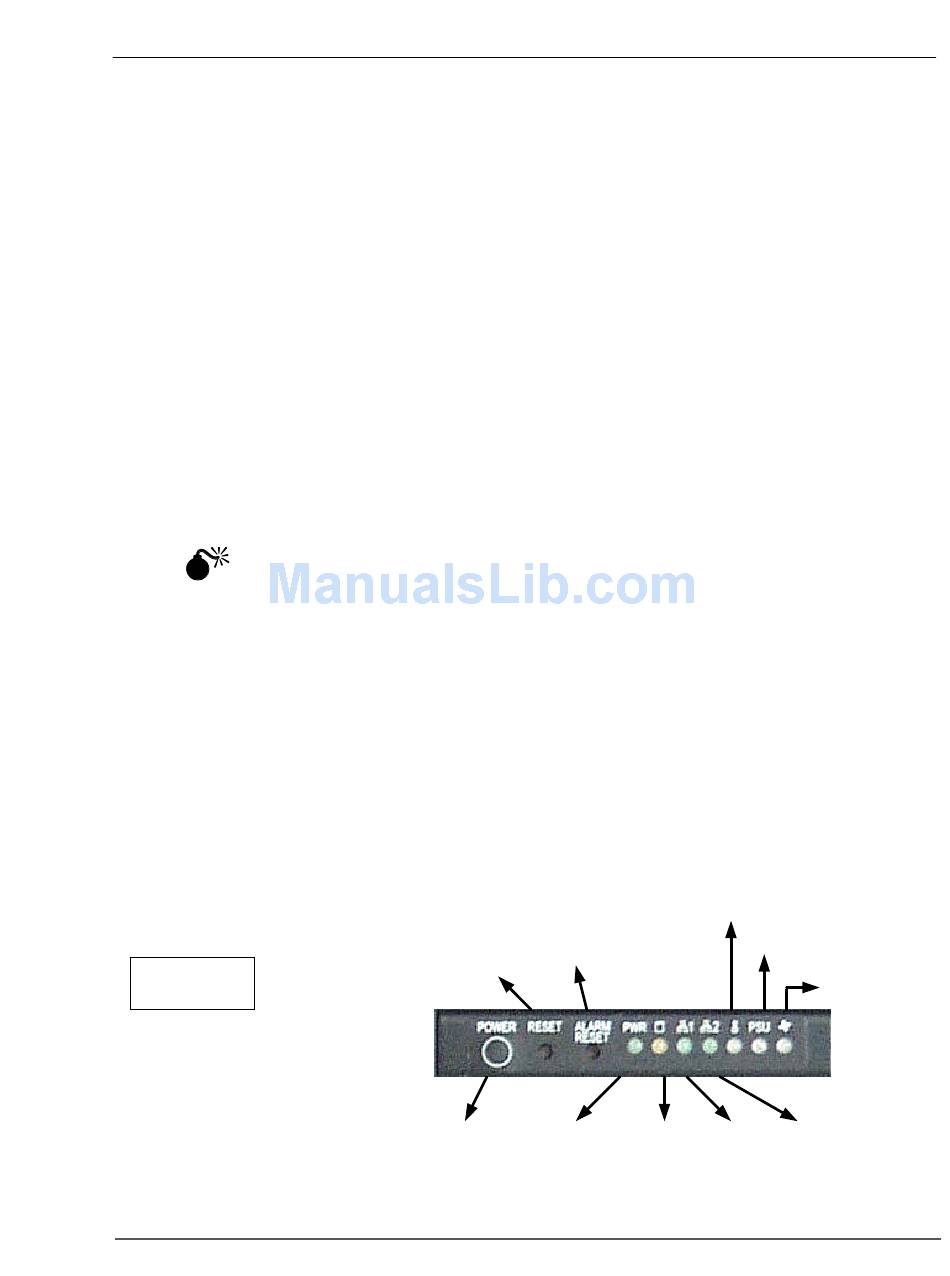

4.1.1 Front panel indicators and alarms Figure 4.1

Warning : the GalaxyNASLX2 fan and power faults are not detectable by the
GalaxyNASLX2 OS and therefore there will not be an email notification of such errors.
The front panel has LED indicators as well as audible alarms for fans, Hi –temp, and DC
power supply. The normal green colored LED indicates proper conditions. These same LEDs
change color to red and alarms sound when the GalaxyNASLX2 detects a problem with heat
or power
Power supplies and fans are redundant and will not shut down the GalaxyNASLX2 if one fails.
Follow the replacement procedures in the Maintenance section to replace the power supply or
fan.
Press the 'alarm reset' button with the tip of a pen to clear the alarm.
Here are the other indicators and functions:
Figure 4.1
81
A N D S Y S T E M I N T E G R A T I O N
Temp/ PSU/
Reboot
Fan Alarm
/ Reset
Reset
Power On Internal OS
Power
indicator disk activity
Push
Button
G U I D E
Section 4
Troubleshooting
and Maintenance
Temperture
indicator
Power supplies
indicator
Ethernet 1 Ethernet 2
activity activity
Section 4 Maintenance
Fans indicator
