Function "Smb Settings" Figure 3.14 - Rorke Data GalaxyNASLX2 Configuration And System Integration Manual

G A L A X Y N A S L X C O N F I G U R A T I O N
Or a second example for MAC OSX is:
Click on "Connect to server" from the Finder (GO submenu).
Enter: afp://address_ip
You can add a link to the afp server by clicking on the "+" sign. This adds a link to the
computer in the Favorite Servers field.
Choose a login type, enter a password if you want to login as a specific user.
From available shares select all you want to mount.
The icon of the mounted share will appear on the desktop.

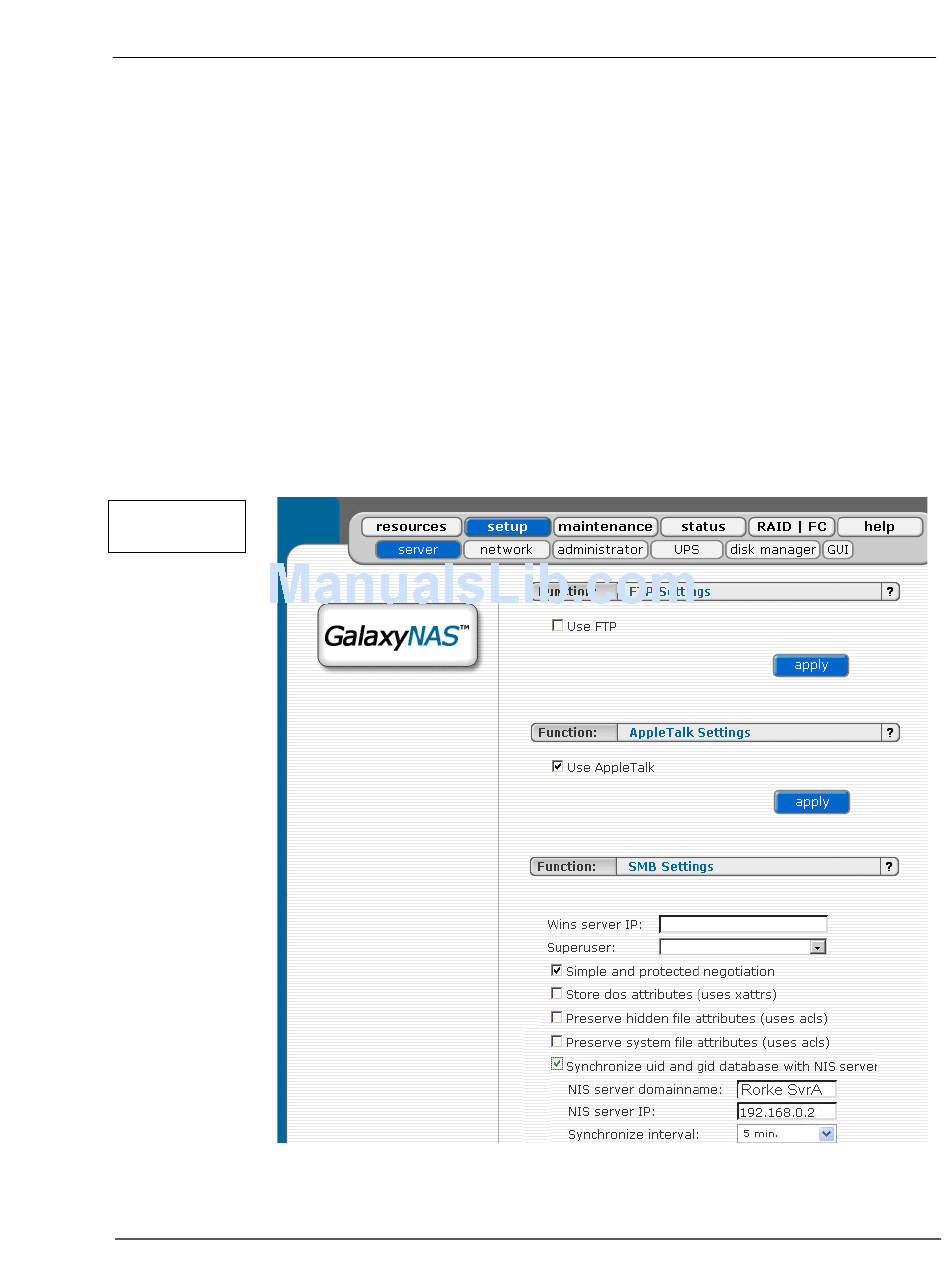

3.2.8 Function "SMB Settings" Figure 3.14

There are several SMB protocol specific parameters options you can edit:
•
Wins server IP: If you have a WINS server on your network then you should set this
to the WINS server's IP,
Figure 3.14
48
A N D S Y S T E M I N T E G R A T I O N G U I D E
Section 3 Menu Functions
