Configuring The Nas; Indicators And Switch Descriptions Figure 2.1; Making Connections And Power Up Figure 2.2 - Rorke Data GalaxyNASLX2 Configuration And System Integration Manual

G A L A X Y N A S L X C O N F I G U R A T I O N

2.1 Configuring the NAS

2.1.1 Indicators and switch descriptions Figure 2.1

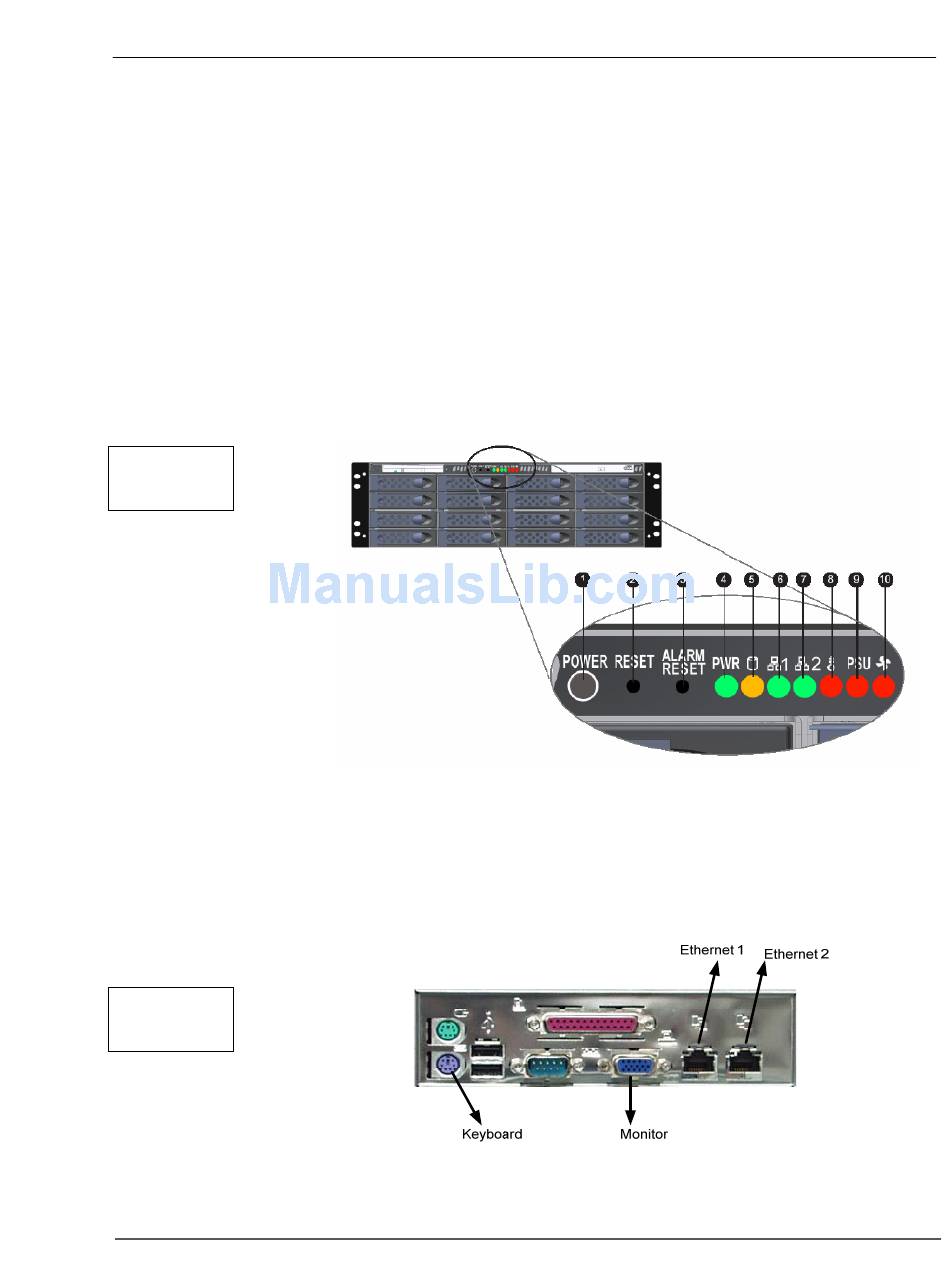

The GalaxyNASLX2 front panel has indictors for good and fault conditions and activity. Green
LEDs indicate good condition, red LEDs indicate a problem that will also sound an audible alarm.
The alarm reset needs to be depressed to silence the alarm. The Reset PB is used to restart the
NAS. The Power PB is used to power up the NAS.
Figure 2.1

2.1.2 Making connections and Power Up Figure 2.2

The GalaxyNASLX2 OS has been preloaded and Raid storage preconfigured to be ready for
you to power up and start configuring it for use. Before powering up, make the connections to
Figure 2.2
