● Little or no air flow and high humidity.
● Exposed to steam, vapor, or water.
● Exposed to direct cool air.
● Near the television antenna or antenna cable.
● Ventilation is not enough to cool the inverter, that is to say, outdoors, the inverter requires.

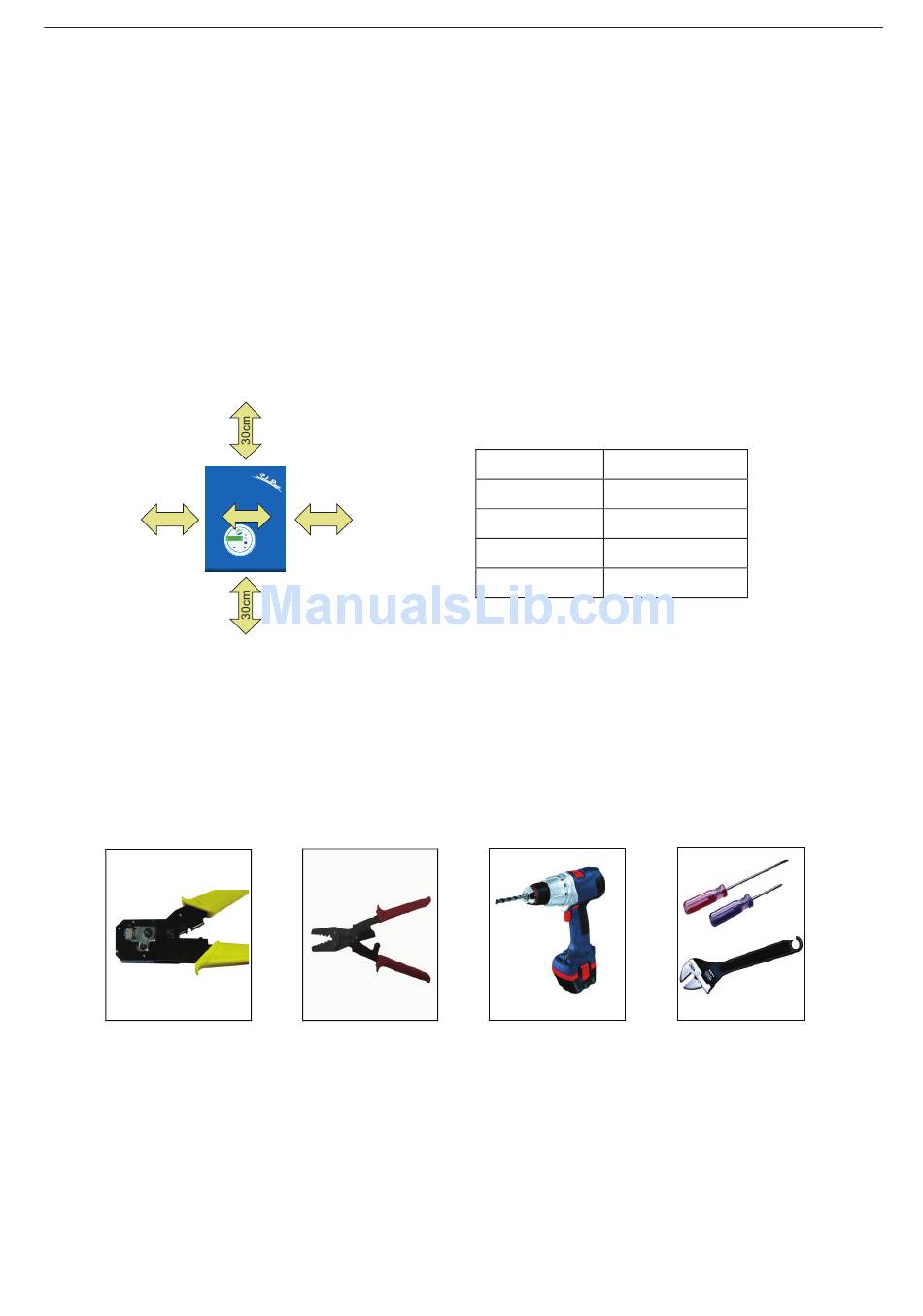

At least 30 cm (see table 2) of clearance among the units is needed, it is recommended
that the same clearance between the units and the ground be used. Installing the inverter
in the place mentioned above may cause the malfunction of the system caused by water
30cm
or high temperature inside the inverter. Please let users know that Samil Power will not
compensate the fault caused by the above situation.

6.3 Preparation

Below tools are needed before installation.
Installation Tools: crimping pliers for binding post and RJ11, screwdriver and manual wrench
and ф 6 driller.

6.4 Installation Steps

Step1: Drill holes in the wall with ф 6 driller according to the size of bracket. Keep drilling
vertical to the wall, and don't shake when drilling to avoid damage to the wall.
10cm
30cm
Normal
Fault
Function
SR5KTLA1

Installation Tools

Position Min. Size
Side 30cm
Top 30cm
Bottom 30cm
Front 10cm
Table 2
Available Space Size
Installation
