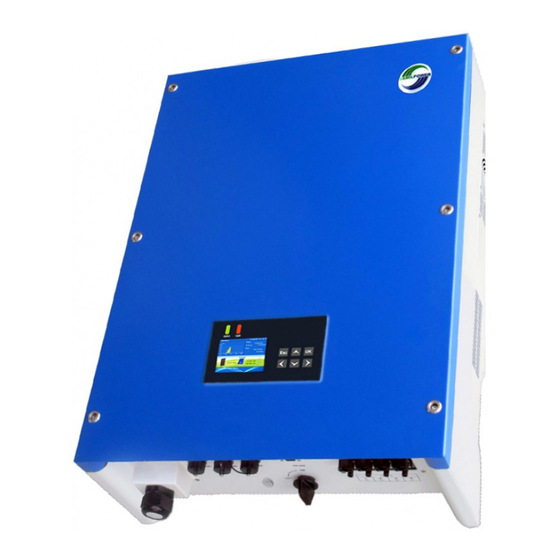

Samil Power SolarLake 5500TL-PM Installation Manual

Samil Power SolarLake 5500TL-PM Installation Manual

Hide thumbs Also See for SolarLake 5500TL-PM:

Advertisement

1

Advertisement

Table of Contents
loading

Summary of Contents for Samil Power SolarLake 5500TL-PM

  • Page 2: Table Of Contents

    Table of Contents About this Installation Guide ..2 AC- and DC-Connection ....30 Safety Symbols....... 4 Starting the Inverter ...... 38 General Safety Requirements ..6 Commissioning ......40 Intended Use ........8 Inverter Configuration ....48 Inverter Function......14 Opening the Inverter .....
  • Page 3: About This Installation Guide

    Target group: Installation Qualified technicians Supplier Company the product Manufacturer: was purchased from Samil Power Co. Ltd. Inverter SolarLake PV-inverter No.6 Xuefengshan Road, described in this Suyu District, Suqian, installation guide Jiangsu Province, 214174 P.R.C Spis treści...
  • Page 4: Safety Symbols

    Safety Symbols Life threatening voltages are Countermeasures that must processed inside the inverter. be taken in order to avoid the Hazardous situations that can lead to hazardous situation are indicated with death or serious injuries are indicated an arrow: with the “WARNING” symbol (1) on →...
  • Page 5: General Safety Requirements

    General Safety Requirements 1. WARNING! Danger of electric 4. 2 people are required for shock! lifting and transporting. →Read Installation Guide WARNING! Danger of electric carefully. Follow all shock and fire! instructions. → Never modify the inverter unless 2. Contact your supplier when you explicitly instructed to do so by the have questions.
  • Page 6: Intended Use

    Intended Use The inverter (1) converts DC-power PVgenerators from the PV-generator (2) to ACpower. (5). The AC-power is fed into the CAUTION! Risk of damaging Grid (3). In case of a grid failure: The the inverter! inverter automatically disconnects → Do not connect other DC-power (4) from the grid.
  • Page 7 Electrical Safety 1. WARNING! Risk of electric transformer is additionally shock! The PV-panels emit a installed. Contact your utility dangerous DC-voltage when operator if you have questions. exposed to sunlight. 2. The inverter is not equipped with an internal isolation transformer 3.
  • Page 8 DC-Disconnect / RCD 1. Local regulations and standards regulations and standards require can require that current-breakers an external RCD/RCM, a RCD/ are installed on the DC-side. RMC Type A is sufficient Contact your utility operator if you have questions. 2. The inverter is equipped with an integrated RCMU Type B (tested according to EN 62109-2 / IEC 60755).
  • Page 9: Inverter Function

    Inverter Function 1. DC-side surge voltage protection 9. Digital input port 2. DC-side insulation monitoring 10. Communication extension port 3. DC-side disconnection switch 11. Residual Current Device (RCD) (optional) 4. Display, status LEDs, buttons 5. AC-side disconnection relay 6. Grid monitoring 7.
  • Page 10: Labels And Markings On The Inverter

    Labels and Markings on the Inverter Symbols on Type Label: Markings and Symbols on General Symbols bottom of Inverter: 1. Ensure proper disposal 7. AC-plug 2. CE-mark Safety Symbols 8. Opening for relay connection 3. Read documentation! 9. Ethernet connection 4.
  • Page 11 Connections on the Inverter 1. DC-switch (optional) 2. DC-plugs 3. Ethernet connector 4. Cable gland for digital input and digital output 5. Valve for pressure discharge 6. AC-plug 7. Optional communication port Przyłączenia w inwerterze 1. Rozłącznik DC (opcjonalnie) 2. Wtyczki DC 3.
  • Page 12: Benutzerschnittstelle

    User Interface Green LED exit current screen On = Normal operation, 4. OK-Key Flashing = Waiting, checking or Press OK-key in order to confirm starting up, Off = Possible failure entry. 2. Red LED 5. Cursor keys On = Failure, Pressing the cursor keys Flashing = Temporary failure, navigates the menu and increases...
  • Page 13: Auspacken

    Unpacking Proceed as follows: 3. DC-plugs (4 sets) • Check the packaging for damages. 4. AC-plug • Unpack the inverter and check 5. Screws for wall mounting if all items of the packing list are included. 6. Installation guide • Check all items for visible damages.
  • Page 14 Required Tools The following tools are required for 5. Open-end spanner kit for DCplugs The installation of the inverter: (e.g. PV-MS) 1. Crimping tool for DC-plugs 6. Pencil (e.g. type PV-CZM) 7. Screwdriver 2. Cable stripping tool for DC-cables 8. Hammer (e.g.
  • Page 15: Montage Des Wechselrichters

    Mounting the Inverter Requirements for the installation location are Optional: Secure the inverter with a specified on the following pages. padlock. Proceed as follows: On plasterboard walls: Use center holes. Screw wall mounting bracket to wall stud. On massive walls: Use outside holes. Screw wall mounting bracket to wall.
  • Page 18 AC-Connection - Requirements Use 25 A circuit breaker. 2.5 - 4 mm2 WARNING! Risk of fire! In France: Use a PE-connection with →Do not connect any consumers to a minimum cross. the AC- line. Recommendation: Keep cable losses below 1%. Keep impedance below 2 Ohm. The maximum outer diameter of the AC- cable is 22 mm.
  • Page 19 Assembly of the AC-Plug WARNING! Risk of electric shock! illustration. → Deactivate AC-voltage when 5. Remove swivel nut and connecting the AC-connection shove swivel nut over plug. cable. Proceed as follows: 6. Attach wires to AC-plug. 1. Disconnect voltage. 7. Tighten swivel nut. 2.
  • Page 20: Anschlüsse

    DC-Connection - Requirements 1. CAUTION! Risk of damaging the Connected: Install diodes inverter! in order to avoid reverse currents. → Ensure that the voltage and 5. Cover PV-modules when working Current is below the specified on the DC-connection. values. 6. WARNING! Risk of electric 2.
  • Page 21 Assembly of the DC-Plugs WARNING! Risk of electric shock! 5. Insert plug contact in plug. → Cover PV-modules when working Pull on contact in order to on the connection cables. check that the contact is locked in Proceed as follows: the plug.
  • Page 22: Starting The Inverter

    Starting the Inverter Proceed as follows: The inverter needs to be 1. Connect AC-plug. commissioned. Commissioning is 2. Connect DC-plugs. described in English on page 23. 3. If present: Turn DC switch on 4. Turn AC-fuse on. The inverter starts operation. In case you are starting the Inverter for the first time.
  • Page 26: Inverter Configuration

    Additional Inverter Configuration Use the SamilPower SolarPower Browser for SolarPower Browser can be configuration. Used for various settings: In general the inverters are connected to a PC (3) with ethernet (1). A router SolarPower Browser is available for (2) can be used in order to connect download at: several inverters.
  • Page 27: Opening The Inverter

    Opening the Inverter →Wait for 5 minutes in order to Proceed as follows: 1. Ensure that no water will enter let internal voltages discharge when the inverter is open. 5. Remove 4 screws on the lid. 2. Disconnect AC-power: Remove 6.
  • Page 28: Accessories

    Accessories The inverter can be equipped with for connection of one or several additional communication interfaces. inverters to a data-logger Wifi interface, Ordering No. 910-74009- Information: The inverter can e.g. for connection of one or several only be equipped with one type of inverters to a PC or router communication interface.
  • Page 29: Sd-Karte / Digitaler Eingang / Digitaler Ausgang

    SD Card / Digital Input / Digital Output EN The inverter is equipped with the ports is done with SolarPower Following interfaces Browser. 1. SD-card memory port: For Schematic diagrams of extension of the inverter memory examples for connecting the and storage of yield data.
  • Page 30 Digital Input Ports. The inverter is equipped with 4 digital input ports (1). The digital input ports can be used for the connection of a ripple control receiver (2). Cyfrowe porty wejściowe Inwerter jest wyposażony w 4 cyfrowe porty wejściowe (1). Cyfrowe porty wejściowe mogą...
  • Page 31 Digital Output The inverter is equipped with 3 digital output ports (relay) (1). The usage is possible with future Filmware verions Check www.SAMILPOWER.com for details. Cyfrowe porty wyjściowe Falownik wyposażony jest w 3 cyfrowe porty wyjściowe (przekaźnikowy) (1) możliwe do wykorzystania w przyszłości Filmware wersjach programu Sprawdź...
