AT&T TL86109 Quick Start Manual

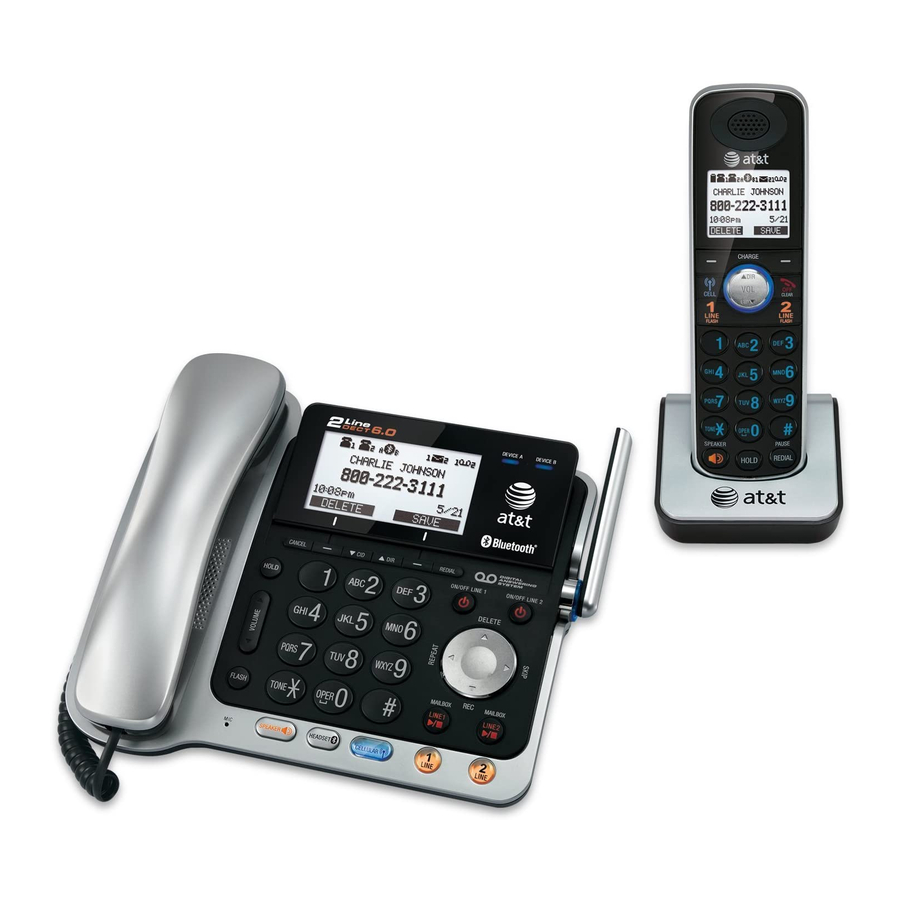

Dect 6.0 2-line corded/cordless telephone/ answering system with bluetooth wireless technology
Hide thumbs Also See for TL86109:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Quick start guide
TL86109
DECT 6.0 2-line
corded/cordless telephone/
answering system with
BLUETOOTH®� wireless technology
wireless technology

Advertisement

Table of Contents
loading

Related Manuals for AT&T TL86109

Summary of Contents for AT&T TL86109

  • Page 1 Quick start guide TL86109 DECT 6.0 2-line corded/cordless telephone/ answering system with BLUETOOTH®� wireless technology wireless technology...

  • Page 2: Installation

    Installation You must install and charge See page 5 for easy the handset battery before instructions. using the cordless handset. Install the telephone base close to a telephone jack and a power outlet not controlled by a wall switch. The telephone base should be placed on a flat surface.

  • Page 3: Telephone Base Installation

    Telephone base installation Install the telephone base, as shown below. Option 1: For using a 2-line wall jack Use a 4-conductor telephone line cord (not included) to connect the 2-line telephone DSL filter and the 2-line wall jack telephone wall jack. Plug the large end of the AC power DSL filter (not included)
  • Page 4 Telephone base installation Option 2: For using two separate wall jacks Line 1 telephone Line 2 telephone Plug the large end wall jack wall jack of the AC power adapter into a power Use a telephone line cord outlet not controlled (not included) to connect by a wall switch.

  • Page 5: Charger Installation

    Charger installation Install the charger, as shown below. Plug the power adapter into an electrical outlet not controlled by a wall switch.

  • Page 6: Battery Installation And Charging

    Battery installation and charging Install the battery, as shown below. For best performance, keep the handset in the charger when not in use. The battery is fully charged after 16 hours of continuous charging. 1. Plug the battery connector securely into the socket inside the handset battery compartment, matching the color-coded label.
  • Page 7 Battery installation and charging After you install your telephone, the handset will prompt you to set the date and time. For instructions, see SET DATE Set date/time on the user’s manual. To skip setting the --/--/-- MM/DD/YY date and time, press OFF/CLEAR.
  • Page 8 Quick reference guide - handset Softkeys (2) OFF/CLEAR Press to select a menu item While using menus, press to displayed above the key. cancel an operation, back up to the previous menu, or exit the CHARGE light (blue ring around menu display.
  • Page 9 Quick reference guide - handset During an outside call, intercom call, message or announcement playback, press to change the quality of the audio to best suit your hearing. Press the MENU softkey to enter the main menu which includes the following: PLAY MESSAGES ANSWERING SYS...
  • Page 10 Quick reference guide - telephone base Press to scroll up while in a menu. Press to scroll down Press to show directory while in a menu. entries when the Press to review the call telephone is not in use. log when the telephone While entering names or is not in use.
  • Page 11 Quick reference guide - telephone base /DELETE /REPEAT Press to delete the message currently playing. During message playback, press to When the phone is not in use, press repeat a message, or to enter a menu to delete all old press twice to play the messages.

  • Page 12: Introducing Bluetooth

    Keep connected cell phones and headset within this range. If your cell phone has poor reception in your home, the TL86109 cannot • improve the reception. However, if there is a location in your house with better reception, you can leave your cell phone at that location while you use the TL86109 cell line.

  • Page 13: Bluetooth Setup

    The pairing process may take up to one minute. If the pairing process fails, try again. • The steps for the pairing process may vary for different cell phones. If this happens, follow the prompts on your cell phone and your TL86109 to complete the pairing process. •...
  • Page 14 The corresponding light on the telephone base (DEVICE A or DEVICE B) turns on. Connect headset If you have trouble pairing your headset, it may not be to base? compatible with your TL86109. Check the Bluetooth www.telephones.att.com compatibility list at Headset setup completed.
  • Page 15 Download directory Before downloading the directory, make sure the cell phone is paired to your TL86109 and is on the active devices list. Place your cell phone next to the telephone base when you download a cell phone directory to your TL86109.

  • Page 16: Telephone Settings

    Telephone settings For complete instructions on using all features of this telephone, see your user’s manual for details. Set date/time To set the date and time manually: Press the MENU softkey on the handset or telephone SETTINGS base in idle mode to enter the main menu. Display alerts Key tone to highlight SETTINGS, then press the...

  • Page 17: Telephone Operation

    Telephone operation Make, answer or end a call on line 1 or line 2 Using a cordless handset: To make a call on line 1 or line 2: Press 1 LINE/ 2 LINE/ /SPEAKER. FLASH, FLASH Enter the telephone number. To predial a call on line 1 or line 2: Enter the telephone number.
  • Page 18 Telephone operation Using a Bluetooth headset: Keep the headset within 15 feet of the telephone base for optimal performance. See the user’s manual of your Bluetooth headset for more information. To answer a call on line 1 or line 2: Press HEADSET •...
  • Page 19 Telephone operation Make, answer or end a cell call Using a cordless handset: To make a cell call: CELL, then enter the telephone number. Press Press the DIAL softkey. To predial a cell call: • Enter the telephone number, then press CELL.
  • Page 20 Telephone operation Conference calls on line 1 and line 2 To conference both line 1 and line 2: Press the OPTION softkey on the handset or telephone base. Press the SELECT softkey to choose Conference. The conferencing handsets or telephone base show Lines now in conference.
  • Page 21 Telephone operation Hold To place a line 1 or line 2 call on hold: • Press HOLD on the handset or telephone base. L1) ON HOLD or L2) ON HOLD appears on the handset and telephone base. The corresponding line buttons on the handset and telephone base flash.
  • Page 22 Telephone operation Share an outside call To share an outside call: Using a cordless handset: Press the corresponding line button (1 LINE/ or 2 LINE/ • ) or FLASH FLASH CELL on another handset to join the call. • Press OFF/ or place the handset in the charger to hang up.
  • Page 23 Telephone operation Call transfer using intercom To transfer an outside call: Using a cordless handset: When on an outside call, press the OPTION softkey. Press to highlight Intercom, then press the SELECT softkey. • If you have only one cordless handset, press the SELECT softkey. •...
  • Page 24 Telephone operation Using the telephone base: When on an outside call, press the OPTION softkey. Press DIR, CID, /DELETE or /REC to highlight Intercom, then press the SELECT softkey. • If you have only one cordless handset, the outside call is put on hold and the telephone base displays Calling handset.

  • Page 25: Answering System Settings

    Answering system settings Answer ON/OFF To turn the answering system on or off: Using the telephone base: /ON/OFF LINE 1 or /ON/OFF LINE 2 Press to turn on the corresponding answering system. The telephone base announces, “Calls will be answered.” The corresponding light turns on. /ON/OFF LINE 1 or /ON/OFF LINE 2 Press...
  • Page 26 Answering system settings Record your own announcement To record your announcement: Using a cordless handset: ANSWERING SYS Mailbox 1 Press the MENU softkey on the handset in idle mode to Mailbox 2 enter the main menu. BACK SELECT Press to scroll to ANSWERING SYS, then press the SELECT softkey.
  • Page 27 Answering system settings Using the telephone base: Press the MENU softkey on the telephone base in idle ANSWERING SYS mode to enter the main menu. Mailbox 1 Mailbox 2 Press DIR, CID, /DELETE or /REC to highlight Answering sys, then press the SELECT softkey. SELECT Press DIR, CID, /DELETE or /REC to choose MAILBOX 1...
  • Page 28 Answering system settings -OR- Press /REC on the telephone base in idle mode. Press DIR, CID, /DELETE or /REC to highlight Announcement, then press the SELECT softkey. Press DIR, CID, /DELETE or /REC to highlight Mailbox 1 or Mailbox 2, then press the SELECT softkey.

  • Page 29: Answering System Operation

    Answering system operation Message playback To listen to messages at the telephone base: Press LINE 1/ /MAILBOX or LINE 2/ /MAILBOX to listen to messages on the corresponding line. Options during playback: VOLUME • Press to adjust the speaker volume. •...
  • Page 30 www.telephones.att.com The Bluetooth®� word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Advanced American Telephones and its parent, VTech Holdings Limited, is under license. VTech Holdings Limited is a member of Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners. ©...
