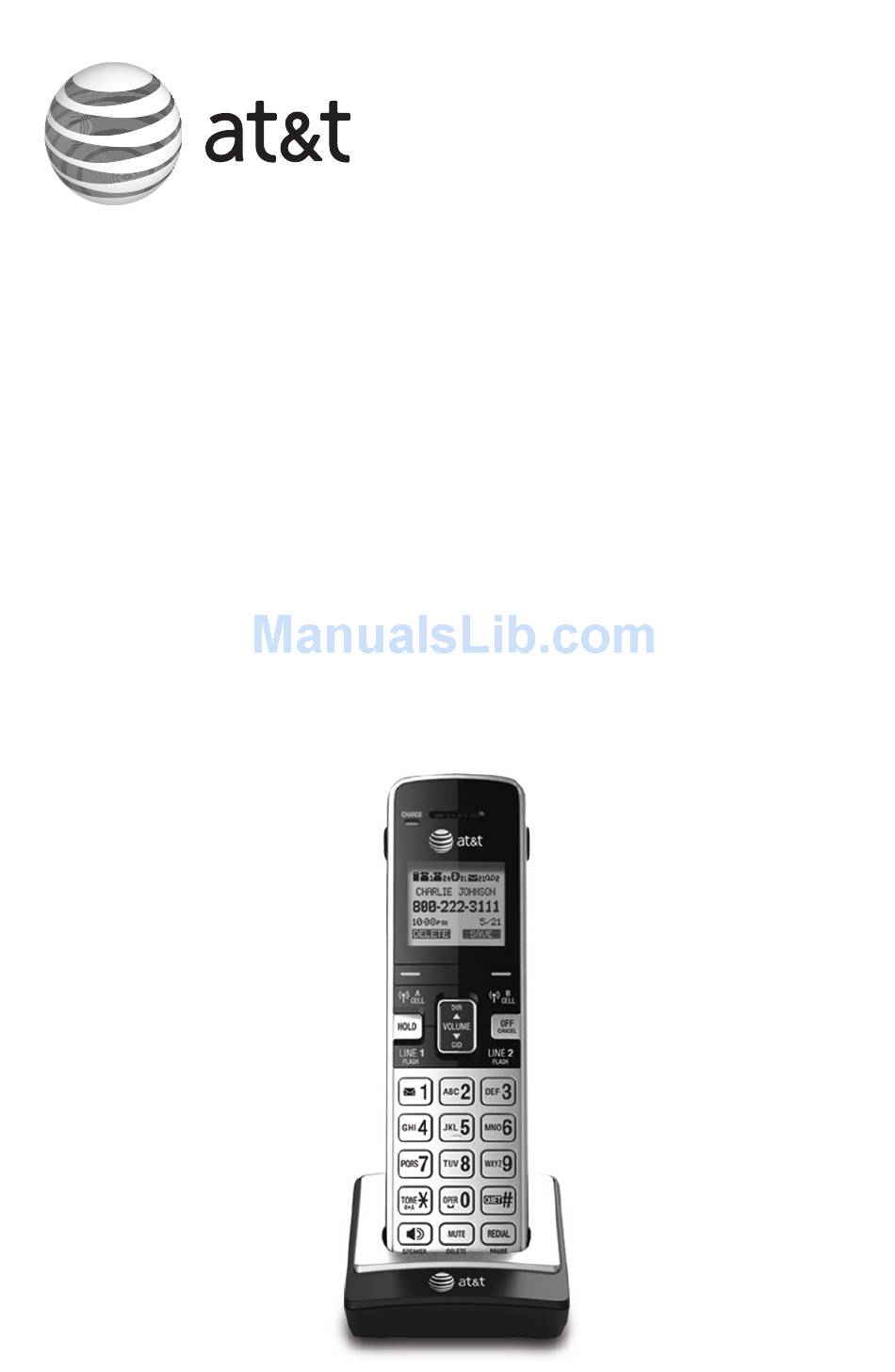

- Page 1 User’s manual TL86003 DECT 6.0 accessory handset for use with AT&T model TL86103 DECT 6.0 2-line corded/cordless telephone/answering system with BLUETOOTH® wireless technology...
- Page 2 This telephone meets the California Energy Commission regulations for energy consumption. Your telephone is set up to comply with the energy-conserving standards right out of the box. No further action is necessary. Model number: TL86003 Type: DECT 6.0 accessory handset Serial number: ________________________________________________...
- Page 3 Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. User’s manual TL86003 DECT 6.0 accessory handset for use with AT&T model TL86103 DECT 6.0 2-line corded/cordless telephone/answering system with BLUETOOTH®...
-
Page 4: Table Of Contents
User’s manual TL86003 DECT 6.0 accessory handset for use with AT&T model TL86103 corded/cordless telephone/ answering system with BLUETOOTH® wireless technology Table of contents Getting started Especially about cordless telephones .... 21 Installation ........1 Precautions for users Quick reference guide - of implanted cardiac handset ..........2... -
Page 5: Getting Started
Getting started Installation You must install and STOP! See pages 6-7 for easy charge the battery before instructions. using the telephone. Your product may be shipped with a protective sticker covering the handset or telephone base display - remove it before use. For customer service or product information, visit our website at www.telephones.att.com 1 (800) 222-3111... -
Page 6: Quick Reference Guide - Handset
Getting started Getting started Quick reference guide - handset CHARGE light • On when the handset is charging in the charger. Softkeys (2) • Press to select the menu item displayed above the key. • While in a menu, press to select an item or save an entry or setting. - Page 7 Getting started Quick reference guide - handset DIR/VOLUME • Press to show directory entries when the telephone is not in use. • Press to scroll up while in menus. • While entering names or numbers in the directory, press to move the cursor to the right. •...
-
Page 8: Using Menus
Getting started Getting started Quick reference guide - handset Handset side view PUSH TO TALK • Press to initiate a one-to-one or one-to-group broadcast. • Press and hold to broadcast to a group of system devices. Main menu Feature menu •... -
Page 9: Charger Installation
Getting started Charger installation Plug the power adapter into an electrical outlet not controlled by a wall switch. IMPORTANT INFORMATION: • Use only the power adapter(s) provided with this product. To obtain a www.telephones.att.com replacement, visit our website at or call 1 (800) 222-3111 1 (866) 288-4268 . -
Page 10: Battery Installation And Charging
Getting started Getting started Battery installation and charging Install the battery as shown on page 7. Once you have installed the battery, the screen indicates the battery status (see table below). If necessary, place the cordless handset in the telephone base to charge the battery. - Page 11 Getting started Battery installation and charging Step 1 Step 2 Plug the battery Align the cover flat connector securely against the battery into the socket inside compartment, then the handset battery slide it upwards until compartment. Insert the it clicks into place. supplied battery with the label THIS SIDE UP facing up as indicated.
-
Page 12: Belt Clip & Optional Handset
Getting started Belt clip & optional handset To remove the To attach the belt clip: belt clip: Snap the belt clip Gently lift either into the slots on both of the belt clip sides of the handset as tabs, shown in the shown in the figure. -
Page 13: Appendix
Appendix Adding and registering handsets Before using a new TL86003 handset, you must register it with an AT&T TL86103 telephone system (purchased separately). These telephone systems can support up to 12 handsets. The handsets provided within your product box are already registered as HANDSET 1, and so forth. - Page 14 Appendix Appendix Adding and registering handsets If registration fails, the system will automatically try to register again. If registration fails after the third try, the handset displays Registration failed, and then To register HS, see manual. This may take up five minutes to occur. Please start again from Step 1 above.
-
Page 15: Deregister Handsets
Appendix Deregister handsets You may need to deregister your handsets if: • You have 12 registered handsets, and need to replace a handset. -OR- • You wish to reassign the designated handset number of your registered handsets. You must first deregister all handsets, and then register each handset you wish to use again, one at a time. -
Page 16: Troubleshooting
Appendix Appendix Troubleshooting If you have difficulty with your phone, please try the suggestions below. For Customer Service, visit our website at www.telephones.att.com 1 (800) 222-3111 or call 1 (866) 288-4268 In Canada, dial The handset registration is unsuccessful. • Follow the handset registration instructions to register the handset again (see Adding and registering handsets on pages 9-10) My phone doesn’t work at all. - Page 17 Appendix Troubleshooting If changing the telephone line cord does not help, the wall jack (or the wiring to this wall jack) may be defective, • try using a different wall jack in your home to connect your TL86103 telephone, or •...
- Page 18 Appendix Appendix Troubleshooting Out of range OR No pwr at base appears on my cordless handset. • Ensure you plug the telephone base in properly and the power is on. • Place the cordless handset in the telephone base for one minute to allow the cordless handset and base to synchronize.
- Page 19 Appendix Troubleshooting • Do not install this phone near a microwave oven or on the same electrical outlet. You may experience decreased performance while the microwave oven is operating. • If you plug your phone in with a modem or a surge protector, plug the phone (or modem/surge protector) into a different location.
- Page 20 Appendix Appendix Troubleshooting • Make sure you plug in the telephone line cord securely into the telephone base and the telephone jack. Make sure you plug in the power cord securely. • The cordless handset may be too far from the telephone base. •...
- Page 21 Appendix Troubleshooting • Do not install this phone near a microwave oven or on the same electrical outlet. You may experience decreased performance while the microwave oven is operating. • If you plug your phone in with a modem or surge protector, plug the phone (or modem/surge protector) into a different location.
- Page 22 Appendix Appendix Troubleshooting System does not receive caller ID when on a call. • Make sure you subscribe to caller ID with call waiting features from your telephone service provider. Caller ID features work only if both you and the caller are in areas offering caller ID service, and if both telephone service providers use compatible equipment.
-
Page 23: Maintenance
Appendix Maintenance Taking care of your telephone • Your cordless telephone contains sophisticated electronic parts, so you must treat it with care. • Avoid rough treatment. • Place the handset down gently. • Save the original packing materials to protect your telephone if you ever need to ship it. -
Page 24: Important Safety Information
Appendix Appendix Important safety information This symbol is to alert you to important operating or servicing instructions that may appear in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. Safety information •... -
Page 25: Especially About Cordless Telephones
Appendix Important safety information Especially about cordless telephones • Privacy: The same features that make a cordless telephone convenient create some limitations. Telephone calls are transmitted between the telephone base and the handset by radio waves, so there is a possibility that your cordless telephone conversations could be intercepted by radio receiving equipment within range of the cordless handset. -
Page 26: Precautions For Users Of Implanted Cardiac Pacemakers
Appendix Appendix Important safety information Precautions for users of implanted cardiac pacemakers Cardiac pacemakers (applies only to digital cordless telephones): Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary evaluation of the interference between portable wireless telephones and implanted cardiac pacemakers. Supported by the U.S. Food and Drug Administration, WTR recommends to physicians that: Pacemaker patients: •... -
Page 27: Fcc Part 68 And Acta
Appendix FCC Part 68 and ACTA This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX. - Page 28 Appendix Appendix FCC Part 68 and ACTA Industry Canada This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 29: Fcc Part 15
Appendix FCC Part 15 This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation. -
Page 30: California Energy Commission Battery Charging Testing Instructions
Appendix Appendix California Energy Commission battery charging testing instructions This telephone is set up to comply with the energy-conserving standards right out of the box. These instructions are intended for California Energy Commission (CEC) compliance testing only. When the CEC battery charging testing mode is activated, all telephone functions, except battery charging, will be disabled. -
Page 31: Limited Warranty
Appendix Limited warranty The AT&T brand is used under license - any repair, replacement or warranty service, and all questions about this product should be directed to our website at www.telephones.att.com 1 (800) 222-3111 or call 1 (866) 288-4268 In Canada, dial What does this limited warranty cover? The manufacturer of this AT&T branded product warrants to the holder of a valid proof of purchase (“CONSUMER”... - Page 32 Appendix Appendix Limited warranty • PRODUCT that has been damaged due to repair, alteration, or modification by anyone other than an authorized service representative of the manufacturer; or • PRODUCT to the extent that the problem experienced is caused by signal conditions, network reliability or cable or antenna systems;...
- Page 33 Appendix Limited warranty Include “valid proof of purchase” (sales receipt) identifying the PRODUCT purchased (PRODUCT model) and the date of purchase or receipt; and Provide your name, complete and correct mailing address, and telephone number. Other limitations This warranty is the complete and exclusive agreement between you and the manufacturer of this AT&T branded PRODUCT.
-
Page 34: Technical Specifications
Appendix Technical specifications RF frequency band 1921.536MHz — 1928.448MHz Channels Operating temperature 32°F — 122°F 0°C — 50°C Handset battery 2.4VDC 400mAh, AAAx2, Ni-MH battery pack Charger voltage 6VAC @300mA (AC adapter output) Operation Operating time* Talk time (cordless handset) up to 7 hours Talk time (cordless handset speakerphone) up to 5 hours Standby... - Page 35 www.telephones.att.com The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Advanced American Telephones and its parent, VTech Holdings Limited, is under license. VTech Holdings Limited is a member of Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners.
