AT&T TL88102 Quick Start Manual

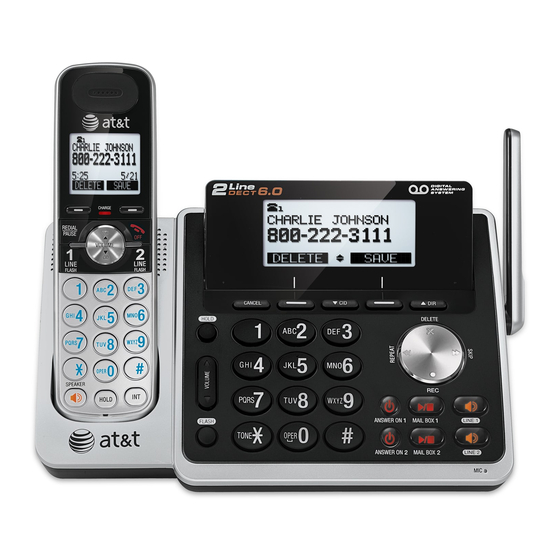

Dect 6.0 2-line cordless telephone/ answering system with caller id/ call waiting
Hide thumbs Also See for TL88102:
Table of Contents

Advertisement

Quick Links

Download this manual
Quick start guide
TL88102/TL88102BK/TL88202
DECT 6.0 2-line cordless telephone/
answering system with caller ID/
call waiting
Scan the QR code for
support information

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TL88102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AT&T TL88102

Summary of Contents for AT&T TL88102

  • Page 1 Quick start guide TL88102/TL88102BK/TL88202 DECT 6.0 2-line cordless telephone/ answering system with caller ID/ call waiting Scan the QR code for support information...
  • Page 2 1 (800) 222-3111 1 (866) 288-4268 or call . In Canada, dial Please refer to the online TL88102/TL88102BK/TL88202 DECT 6.0 2-line cordless telephone/answering system with caller ID/call waiting Complete user’s manual for a full set of installation and operation https://telephones.att.com/manuals...

  • Page 3: Important Safety Information

    Important safety information This symbol is to alert you to important operating or servicing instructions that may appear in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. Safety information Read and understand all instructions in the user’s manual.
  • Page 4 Important safety information CAUTION: To prevent risk of fire or battery explosion, replace with the correct battery type. Dispose of used batteries according to the instructions. Disconnect the telephone line from the equipment before open the battery door. Do not use the battery in following conditions: High or low extreme temperature during use, storage or transportation.
  • Page 5 Important safety information Nickel-metal hydride rechargeable batteries: Dispose of these batteries in a safe manner. Do not burn or puncture. Like other batteries of this type, if burned or punctured, they could release caustic material which could cause injury. The RBRC Seal means that the manufacturer is voluntarily participating in an industry program to collect and recycle nickel- metal hydride rechargeable batteries when taken out of service within the United States.

  • Page 6: Table Of Contents

    Table of contents Important safety information ....................1 Install ................................5 Handset overview ..........................10 Telephone base overview ......................13 Initial basic settings ........................16 Date and time ..........................16 Record your own announcement ..................16 Number of rings..........................17 Ringer volume ..........................17 LCD language ..........................17 Voice language ..........................18 Operate ..............................18 Directory ..............................21...

  • Page 7: Install

    Install Telephone base If you have a 2-line wall jack, install the telephone base, as shown in Option 1 below. If you have separate wall jacks for each line, install the telephone base, as shown in Option 2 on the next page. Option 1: Installation with 2-line jack Plug one end of the black telephone line...
  • Page 8 Install Option 2: Installation with separate line jacks Plug one end of the black Plug one end of the clear telephone telephone line cord into line cord into the line 1 telephone wall the line 2 telephone wall jack or a DSL filter. jack or a DSL filter.
  • Page 9 Install Charger Plug the power adapter into a power outlet not controlled by a wall switch. Caution: Use only the power adapter(s) provided with this product. To obtain a replacement, visit our website at https://telephones.att.com 1 (800) 222-3111 or call .
  • Page 10 Install Battery Install the battery, as shown below. Charge your handset(s) before initial use. The battery is fully charged after 16 hours of continuous charging. The CHARGE light on the top of the handset is on during charging. CHARGE light Caution: Use only the supplied rechargeable battery or replacement battery (model BT183342/BT283342).
  • Page 11 Install Belt clip (optional) To attach the belt clip: To remove the belt clip: Snap the belt clip into Gently lift either of the the slots on both sides belt clip tabs outwards to of the handset. remove the belt clip from the handset.

  • Page 12: Handset Overview

    Handset overview Handset CHARGE Ì On when the handset is charging in the telephone indicator base or charger. REDIAL/PAUSE Press repeatedly to view the last ten numbers dialed. Ì Press and hold to insert a dialing pause while Ì entering numbers. LINE 1/FLASH Press to make or answer a call on line 1.
  • Page 13 Handset overview Ì Press to hang up a call. OFF/ Press to cancel an operation. Ì CANCEL Press to return to the previous menu. Ì Ì Press and hold to exit the menu display. Press to delete a digit or character while entering a Ì...
  • Page 14 Handset overview Handset screen icons Handset battery is charging (animated displayed). Becomes solid when the battery is fully charged. Flashes when the battery is low and needs charging. Line 1 is in use. Line 2 is in use. Handset ringer of line 1 is turned off. Handset ringer of line 2 is turned off.

  • Page 15: Telephone Base Overview

    Telephone base overview Telephone base Softkeys (2) Press to select a menu item displayed above the Ì key. CANCEL Press to cancel an operation. Ì Press to return to the previous menu. Ì Press and hold to exit the menu display. Ì...
  • Page 16 Telephone base overview HOLD Press to put a call on hold. Ì During a call, press to adjust the speakerphone Ì VOLUME volume. Press to adjust the volume during message Ì playback. While the telephone base is ringing, press the Ì...
  • Page 17 Telephone base overview Telephone base screen icons Line 1 is in use. Line 2 is in use. Base ringer of line 1 is turned off. Base ringer of line 2 is turned off. Base ringers of line 1 and line 2 are turned off. New voicemail received on line 1 from the telephone service provider.

  • Page 18: Initial Basic Settings

    Initial basic settings Date and time Note: Set the date/time before using the answering system. Using a cordless handset or the telephone base: MENU -> -> Settings -> SELECT -> Set date/time -> SELECT 3. Enter the month (MM) -> ->...

  • Page 19: Number Of Rings

    Initial basic settings Number of rings You can set the answering system to answer an incoming call after 2, 4 or 6 rings. You can also select toll saver. If you choose toll saver, the answering system answers a call after two rings when you have new messages, or after four rings when there are no new messages.

  • Page 20: Voice Language

    Initial basic settings Voice language Note: This feature is available in Canada version only. You can select English or French as the voice language to be used for your answering system’s voice prompts and for the voice caller ID announce feature. The default voice language is English.
  • Page 21 Operate Operation Steps Ending a call Using a cordless handset: OFF/CANCEL or return the handset to the Press telephone base or charger. Using the telephone base: /LINE 1 or /LINE 2. Press Handset During a call, press /SPEAKER to switch between speakerphone handsfree speakerphone and normal handset use.
  • Page 22 Operate Operation Steps Join a call in progress When a handset is already on a call on line 1 or line (Use up to four system 2, press LINE 1/FLASH or LINE 2/FLASH on the handsets/telephone handset, or press /LINE 1 or /LINE 2 on the base at a time on an telephone base to join.

  • Page 23: Directory

    Directory The directory can store up to 50 entries, which are shared by all system devices. Operation Steps Using a cordless handset or the telephone base: Adding an entry in the MENU -> Directory -> SELECT -> directory -> Add contact -> SELECT 3.

  • Page 24: Caller Id

    Caller ID This product supports caller ID services offered by most telephone service providers. The telephone stores caller ID information of the last 50 incoming calls in the telephone base. This information is common to all devices. Review and dial a number in the call log Using a cordless handset or the telephone base: 1.

  • Page 25: Answering System

    Answering system About answering system and voicemail Your telephone has separate indicators for two different types of voice messages: those left on the built-in answering system and those left at your telephone service provider’s voicemail. To listen to messages recorded on the built-in answering system, refer to the Message playback section;...

  • Page 26: Turn Answering System On Or Off

    Answering system Turn answering system on or off The answering system must be turned on to answer and record messages. Using the telephone base: /ANSWER ON/1 and/or /ANSWER ON/2 to turn the answering Press system on or off. If the answering system is turned on, it announces, “Calls will be answered.”...

  • Page 27: Call Screening

    Answering system Call screening Turn this feature on if you want to listen to the incoming messages when they are being recorded. While monitoring an incoming message, you can answer the call by pressing LINE 1 or LINE 2 on the handset, or /LINE 1 or /LINE 2 on the telephone base.

  • Page 28: For C-Ul Compliance

    For C-UL compliance In compliance with the bilingual requirements for safety, caution, and warning markings of Canadian Federal and Provincial/Territorial statutes and regulations, the French version of Important safety information is included. Mesures de sécurité importantes Ce symbole vous alertera d’informations importantes ou d’instructions d’entretien pouvant apparaître dans ce guide d’utilisation.
  • Page 29 For C-UL compliance Remplacez les piles uniquement tel que décrit dans votre guide d’utilisation (Page 8). N’incinérez pas et ne percez pas les piles — elles contiennent des produits chimiques caustiques. L’adaptateur de courant est conçu pour être orienté verticalement ou installé sur le plancher.
  • Page 30 For C-UL compliance Spécifiquement en rapport avec les téléphones sans fil Confidentialité : Les mêmes caractéristiques qui rendent les téléphones sans fil si pratiques créent également des restrictions. Les appels téléphoniques sont transmis entre le socle du téléphone et le combiné par le biais d’ondes radio, et il se peut que vos conversations téléphoniques soient interceptées par d’autres équipements de réception d’ondes radio au sein de la portée du téléphone sans fil.
  • Page 31 For C-UL compliance Mesures préventives pour les utilisateurs de stimulateurs cardiaques implantés dans l’organisme Stimulateurs cardiaques (ne s’applique qu’aux téléphones sans fil numériques) : L’organisme ‘Wireless Technology Research, LLC (WTR)’, une firme de recherche indépendante, a mené une évaluation pluridisciplinaire des interférences entre les téléphones sans fil portatifs et les stimulateurs cardiaques implantés dans l’organisme.

  • Page 32: Fcc Part 68 And Acta

    FCC Part 68 and ACTA This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX.

  • Page 33: Fcc Part 15

    Industry Canada This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 34: Limited Warranty

    This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this telephone.
  • Page 35 3. How long is the limited warranty period? The limited warranty period for SynJ® and Syn248® products is TWO (2) YEARS from the date of purchase, while all other products limited warranty period is ONE (1) YEAR from the date of purchase. If we replace a Materially Defective Product under the terms of this limited warranty, this limited warranty also applies to replacement Products for a period of either (a) 90 days from the date the replacement Product is shipped to you or (b) the time remaining on the...
  • Page 36 6. What must you return with the PRODUCT to get warranty service? Return the entire original package and contents including the Product to the Advanced American Telephones service location along with a description of the malfunction or difficulty; Include “valid proof of purchase” (sales receipt) identifying the Product purchased (Product model) and the date of purchase or receipt;...

  • Page 37: Technical Specifications

    Technical specifications RF frequency band 1921.536MHz — 1928.448MHz Channels Telephone base voltage 96 — 129 Vrms (AC voltage, 60Hz) Telephone base voltage 6VDC @0.6A (AC adapter output) Charger voltage 6VDC @0.4A (AC adapter output) Handset voltage 2.4 VDC— 3.2VDC Operating times* Talk time (handset): up to 7 hours Standby: up to 5 days * Operating times vary depending on your actual use and the age of the battery.

This manual is also suitable for:

Tl88102bkTl88202
