Taking a Closer Look

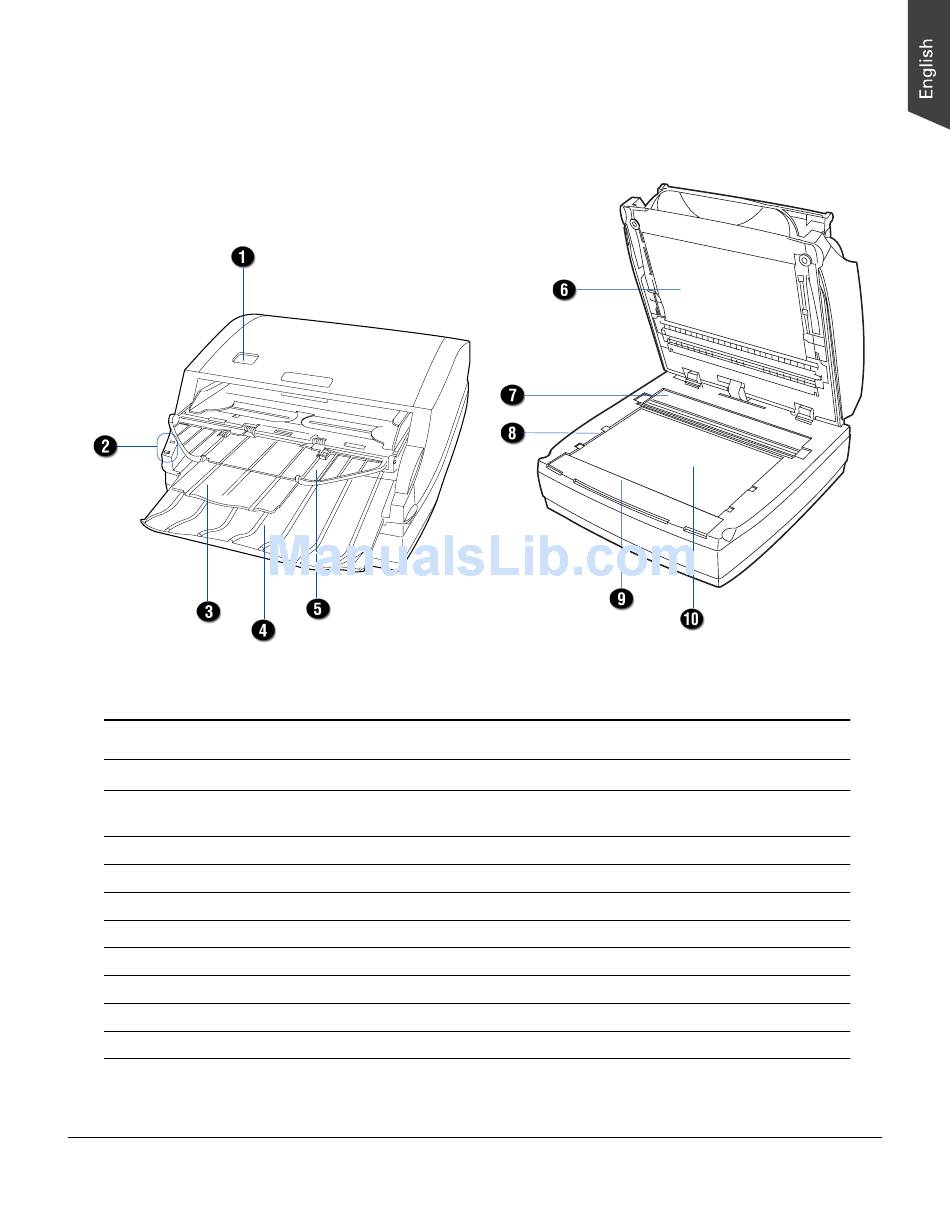

Front/Top View

No. Names of Parts
1 Button
2 Green/Orange LEDs
3 Feed Tray Extender
4 Document Output Tray
5 Document Feed Tray
6 ADF
7 Rear Glass Surface
8 Vertical Ruler
9 Horizontal Ruler
10 Front Glass Surface
Functions of Parts
Opens or closes the ADF cover.
Indicates the status of the scanner. For more details, refer to
the "Troubleshooting" section of this manual.
Extends the Document Feed Tray when loading long documents.
Stores the stacked documents which have been scanned.
Holds the documents to be fed into the ADF.
Automatic Document Feeder.
The place where the calibration cartridge is stored.
Used to measure the length of a scanned document.
Used to measure the width of a scanned document.
For flatbed scanning of a single-sheet document.
ArtixScan DI 3020c / 8040c User's Manual 9
