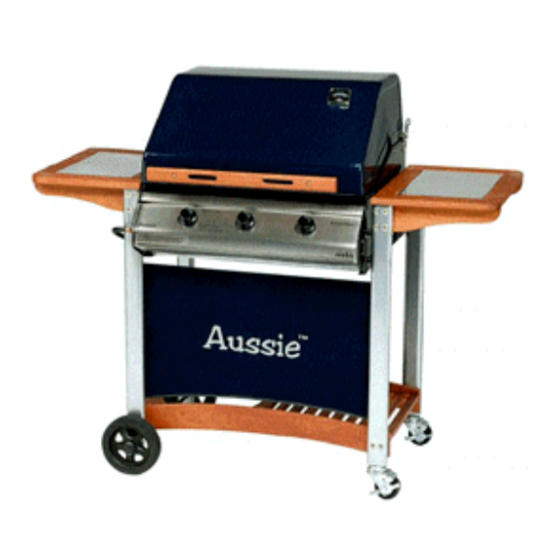

Aussie
LP Gas/
Charcoal Grill
Bonza Deluxe Series
For Customer Service, call 1-800-251-7558
•READ AND FOLLOW INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY OR USE. FAILURE TO
FOLLOW THESE INSTRUCTIONS COULD RESULT IN DEATH, SERIOUS BODILY INJURY AND/OR
PROPERTY LOSS.
•FOR HOUSEHOLD OUTDOOR USE ONLY. NOT FOR COMMERCIAL USE.
•SOME PARTS MAY CONTAIN SHARP EDGES-ESPECIALLY WHERE NOTED IN THIS MANUAL!
WEAR PROTECTIVE GLOVES IF NECESSARY
•PORCELAIN COATING CAN CHIP DURING ASSEMBLY. WEAR SAFETY GLASSES WHILE
ASSEMBLING GRILL.
•THESE INSTRUCTIONS MUST BE KEPT WITH THE CONSUMER AND RETAINED FOR FUTURE USE.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, immediately call your
gas supplier or your fire department.
TM
by
1. Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
2. An LP cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
Bonza Series
© Meco Corporation® 2001
