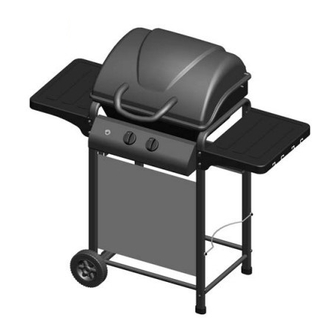

Aussie BUSHMAN 7710.8.641 Assembly And Use Manual
  1. Manuals
  2. Brands
  3. Aussie Manuals
  4. Grill
  5. BUSHMAN 7710.8.641
  6. Assembly and use manual

Aussie BUSHMAN 7710.8.641 Assembly And Use Manual

Lp gas grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Bushman
Assembly and Use Manual for:
Bushman
FOR OUTDOOR HOUSEHOLD USE ONLY. NOT FOR COMMERCIAL USE.
For Customer Service, call 1-800-251-7558 or visit our web site at www.aussiegrills.com
• Failure to follow these instructions could result in fire or explosion which could cause death,
serious personal injury, or property damage.
• Read and follow instructions carefully before assembly or use.
• Do not use this product for any other purpose than which it is intended.
• These instructions must be kept with the user. SAVE THESE INSTRUCTIONS.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
by
LP Gas Grill
Deluxe
Bushman
Deluxe
1. Do not store or use gasoline or other
flammable liquids or vapors in the vicinity
of this or any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
For use with models:
7710.8.641
7710S8.641

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BUSHMAN 7710.8.641 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aussie BUSHMAN 7710.8.641

Summary of Contents for Aussie BUSHMAN 7710.8.641

  • Page 1 3. Open lid. 4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department. LP Gas Grill Bushman Deluxe 1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.

  • Page 2: Table Of Contents

    Grill should be setup away from high traffic areas and combustible materials. 5. Locate your LP gas grill at least 10 feet away from your house or any building. Do not use the grill in a garage, breezeway, carport, porch, or in any enclosed area.
  • Page 3 13. Combustible materials should never be within 36 in. of the back or sides of your LP gas grill. WARNING! Always Store Lp Cylinders upright and where temperatures do not exceed 125 degrees Fahrenheit.

  • Page 4: Assembly Instructions

    MECO Corporation strives to be a quality supplier of consumer products. If we ommitted any parts needed for assembly, or you need troubleshooting information, please contact us using our toll free number or visit our website. Thank you for purchasing a MECO Corporation product.

  • Page 5: Step 1 - Assemble Wheel Leg

    Step 1 - Assemble Wheel Leg •Assemble Cylinder Slide Bracket to left leg using 4 M6 x 15mm Screws. •Assemble the Cylinder Slide Lock to the Cylinder Slide Bracket using 2 Wing Bolts. Cylinder Slide Lock Orient Leg. Notice two holes to the front.

  • Page 6: Step 3 - Assemble Cart

    STEP 3 - Assemble Cart Screw Screw M6 x 35mm M6 x 50mm 4 pcs 4 pcs 4 pcs •Assemble Rear Brace to wheel leg and fixed leg using 4 M6 x 35mm Screws and 4 M6 Nuts. •Assemble the 2 Cart Braces to the wheel leg and fixed leg using 4 M6 x 50 mm Screws. Rear Brace Cart Brace...

  • Page 7: Step 4 - Attach Flavor Activator Pins, Grease Cup Hanger Burner & Heat Shield

    STEP 4 - Attach Flavor Activator Pins, Grease Cup Hanger, Burner & Heat Shield Follow the steps in order below. Refer to the step numbers below and beside the images. 1. Assemble 2 flavor activator Mounting Studs and two Fiber Washers to the bowl using 2 M6 nuts. 2.

  • Page 8: Step 5 - Attach Bowl To Cart

    STEP 5 - Attach Bowl to Cart Screw M6 x 45mm 4 pcs Fiber Washer 4 pcs Bowl Spacer 4 pcs Fiber Washer 4 pcs Bowl Spacer Screw M4 x 10mm 2 pcs Wing Nut 2 pcs •Assemble bowl to cart using 4 M6 x 45mm Screws, 4 Fiber Washers, 4 Spacers, and 4 M6 Nuts.

  • Page 9: Step6 - Attach Control Panel

    STEP6 - Attach Control Panel Screw M6 x 50mm 4 pcs •Insert valve tips on back of control panel into burner venturi. Secure control panel to cart using 4 M6 x 50mm Screws and 4 M6 Nuts. STEP 7 - Attach Igniter Wire •Attach Igniter Wire : Push electrode connector at end of Igniter wire onto center tab on rear of Igniter Button.

  • Page 10: Step 8 - Mounting Hood/Bowl Hinges

    STEP - 8 Mounting Hood/ Bowl Hinges Hood •Insert M6 x 15mm Bolt through Hood Hinge and Fiber Washer and into hole in back side of Grill Hood as shown. Install M6 Washer and secure with M6 Nut. (See Photos 1 & 2 below) Repeat for remaining holes to secure two Hood Hinges.

  • Page 11: Step 9 - Attach Hood

    STEP 9 - Attach Hood •Align Hood Hinge tabs with Bottom Hinge tabs and insert Hinge Pins from outside. Secure each Hinge Pin with Cotter Pin as shown. •Close Hood and check assembly to make sure that the hood and bowl fit properly together. Adjust hood by loosening the Hinge Bolts and retightening.

  • Page 12: Step 10 - Attach Hood Handle & Handle Shield

    To reduce the risk of a laceration hazard, wear protective gloves when handling parts that have sharp edges. STEP 10 - Attach Hood Handle & Handle Shield Hood Handle 1 pc •Insert M5 x 10mm Bolt through Handle Shield, then through inside of Hood into Hood Handle. Repeat for other side of handle.

  • Page 13: Step 14- Assemble Side Tables

    STEP 14 - Assemble Side Tables •Slide 8 side table spacers onto 8 M6 x 45 mm screws. •Insert M6 x 45mm screws and side table spacers through bottom holes of side table and through leg. Secure with M6 nuts and tighten.

  • Page 14: Step 16- Insert Drip Cup

    STEP 16 - Insert Drip Cup •Insert drip cup into hanger clip underneath grill bowl. Step 17 - Attach LP Cylinder 1. Loosen wing bolts on cylinder slide lock. Raise to highest position and retighten. 4. Remove the protective cap from the cylinder valve.

  • Page 15: Operating And Maintaining Your Lp Gas Grill

    Connecting/ Disconnecting LP Gas Cylinder to Grill · Do not operate the LP gas grill when the LP gas cylinder is not attached to the cart as shown in the Assembly Instructions. · Always check for gas leaks when you disconnect...

  • Page 16: B) Before Using Your Grill

    · Do not use an LP gas grill indoors, on recreational vehicles, or on a boat. · This LP gas grill is for outdoor use only and should be placed on firm, level surface. The grill should be setup in an open area with good ventilation, away from high traffic areas and combustible materials.

  • Page 17: Leak Testing

    · Do not operate an LP gas grill if you have knowledge of or suspect a gas leak. · Never allow children to operate or play near an LP gas...

  • Page 18: Preparation Before Cooking

    Allow grill to cool before handling parts or cleaning. · Do not move an LP gas grill when in use or hot. · Do not wear loose clothing (example: hanging shirt tails, clothing with frills, etc.) around a LP gas grill while in use or hot.

  • Page 19: Manual Lighting Of The Grill

    If the hose is cut, damaged, or showing signs of excessive abrasion or wear, do not use the LP gas grill. Contact the manufacturer, as the hose must be replaced with an assembly specified by the manufacturer prior to further use of the LP gas grill.

  • Page 20: Check Your Flame

    Allow the grill to underneath the cool before handling parts or cleaning. · Do not move an LP gas grill when in use or hot. · Never touch hot surfaces. Use heat resistant gloves, long-handled tongs, or cooking mitts at all times since grill will become very hot.

  • Page 21: Porcelain Coated Cooking Surfaces

    Burner Maintenance · Check the LP gas grill for gas leaks and Burner obstructions before each use. · Always turn off the LP gas cylinder at the LP cylinder valve when not in use.

  • Page 22: Flavor Activator

    Failure to remove grease may result in grease dripping onto the cart and/or a grease fire in the cup. · Never light the LP gas grill without the grease cup in place. · Before each use, remove all grease from your Grease Cup.

  • Page 23: Parts Diagram

    Parts Diagram HARDWARE LIST Description Screw M6 x 15mm Wing Bolt M6 x 10mm Screw M6 x 50mm Screw ST 4.0 x 15mm Screw M6 x 35mm Nut M6 Mounting Stud M6 Screw ST 4.0 x 10mm Screw M6 x 45mm Fiber Washer M6 Bowl Spacer M6 Screw M4 x 10mm...

  • Page 24: Emergencies & Troubleshooting

    Problem Possible Cause Gas leaking from Damaged hose. cracked/cut/burned hose. Gas leaking from LP Mechanical failure due to rust cylinder or mishandling. Gas leaking from LP Failure of valve from mishan- cylinder valve dling or mechanical malfunc- tion. Gas leaking between Improper installation, connec- LP cylinder and regu- tion not tight, failure of seal...
  • Page 25 Turn control knobs to “off” position and turn LP gas cylinder handle clockwise until it stops. Wait five minutes. Relight LP gas grill. If flame continues to be low, turn off gas at cylinder and grill. Disconnect the regulator from the LP gas cylinder.

  • Page 26: Important Notice - Lp Cylinder With Opd

    IMPORTANT NOTICE This Gas Grill must be used with a LP Gas Cylinder equipped with an OPD (Overfill Prevention Device). This is a secondary device to prevent the overfill of your LP Gas cylinder. The proper methods for the filling of your LP Gas cylinder are by weight or volume, as described in NFPA 58.
  • Page 27 This page intentionally left blank.

  • Page 28: Limited Warranty

    (if assembled by the consumer-pur- chaser). This grill is warranted for a period of one (1) year from the date of purchase. MECO Corporation DOES NOT warrant in any way the propane cylinder (see label on cylinder for cylinder manufacturer’s warranty.) The LP cylinder manufacturer is responsible for the materials, workmanship...
