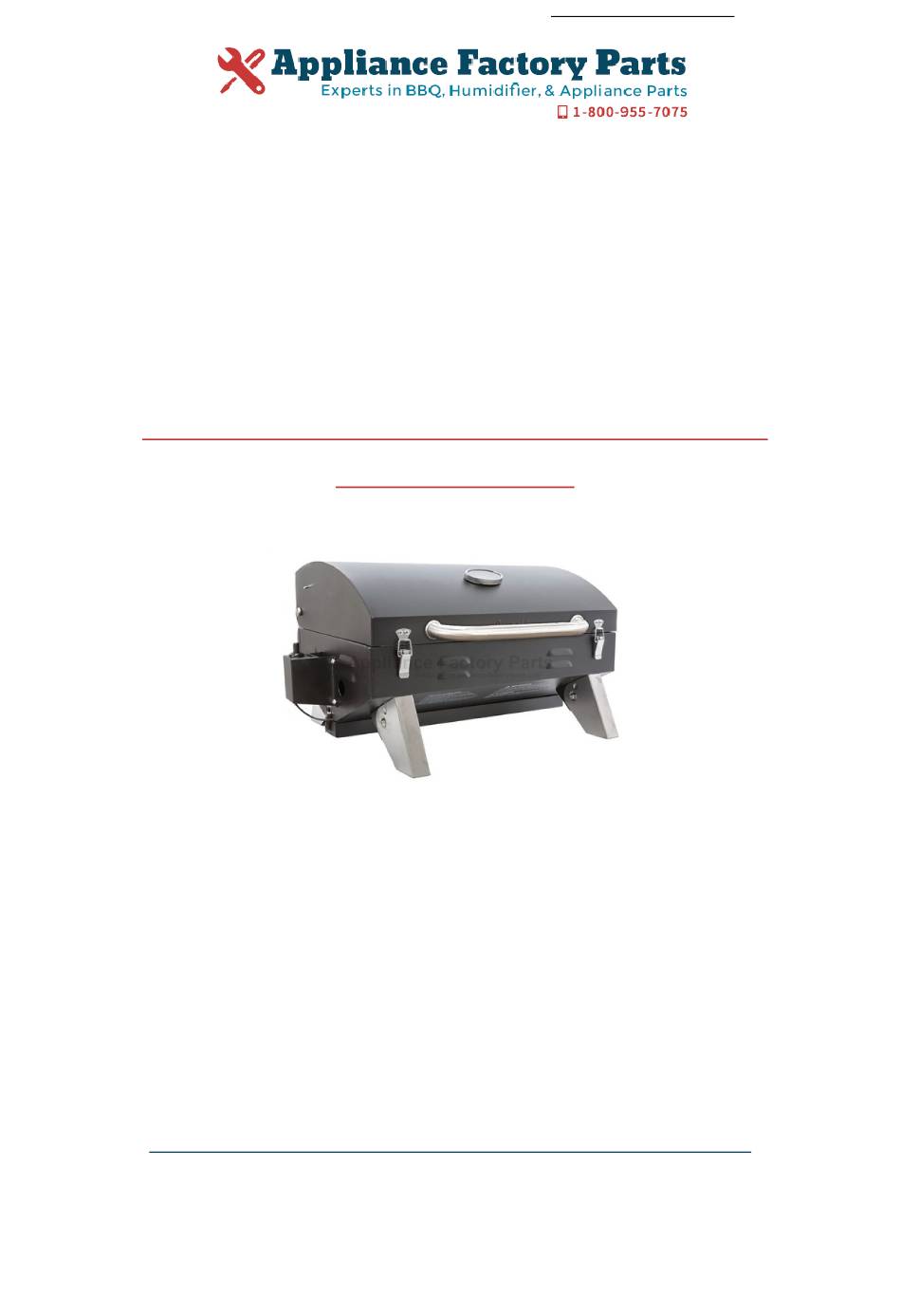

This Owner's Manual is provided and hosted by Appliance Factory Parts. Aussie 6TV1S00KP1-BK Owner's Manual Shop genuine replacement parts for Aussie 6TV1S00KP1-BK Find Your Aussie Grill Parts - Select From 122 Models -------- Manual continues below --------...
Page 2
• Keep this manual for future reference. jury or death. SAVE THESE INSTRUCTIONS. Need Help? Need to Register Your Grill? Looking for Aussie Parts & Accessories? Visit us online at www.AussieGrills.com Or call Aussie Customer Service at 1-800-251-7558...
D A N G E R CARBON MONOXIDE HAZARD This appliance can produce carbon monoxide, an odorless toxic gas. Us- ing it in an enclosed space can kill you. Never use this appliance in an enclosed space, such as a camper, tent, car, boat or home. This appli- ance is not intended for and should never be used as a heater.
Packing List Grill Body When ordering parts, it is VERY important to have the complete Model Number to receive the correct replacement parts for your grill. The grill model Igniter Housing Assembly number and serial number are printed on the label located on the inside surface Valve Housing Assembly of the rear leg.
Preparation for Assembly Remove grill, Hanger Bracket, Carry Bag and all packaging materials from the carton and place on a clean level sur- face. Some parts are packed inside the grill body. Remove, unpack and inspect these parts as well. To remove Cooking Grid with attached parts box, see instructions below.
Grill Assembly Instructions Step 1 Hood Handle Assembly Hood Handle Place a Handle Bezel between each end of the handle and the grill hood then insert a 1/4-20 x .50” Bolt through the inside of the hood into each end of the handle.
Step 3 Igniter Housing Assembly Thread the Electrode Wire through the hole in the Igniter Housing and attach the end onto the pin at the bottom end of the Piezo Igniter. Align the holes in the Igniter Housing with the threaded holes in the firebowl end. Insert three 5/32 x .31” Bolts through the housing into the threaded holes.
Step 5 Install Cooking Grid If Warming Rack is installed, remove legs from holes in sides of the firebowl as instructed in “Unpacking” on page 4. Place the back edge of the Cooking Grid on the ledges of the firebowl ends and slide towards the back of the back of the grill until the Cooking Grid drops down into a flat position with all four sides resting on the firebowl ledges.
Hanger Bracket Assembly and Use Hanger and Leg Brackets Assembly Slide the U-Tube on to the tapered ends of the Hanger Bracket Frame. Align holes in both parts and fasten in place with two 10-24 wingbolts and wingnuts. Attach two Leg Brackets to the crosstube of the Hanger Bracket Frame oriented as shown. Insert the 1/4-20 Leg Bracket Wingbolt through the hole in the Leg Bracket and into the threaded hole on the crosstube.
WARNING To reduce risk of serious injury or death from fire or burn hazard: • Verify that the mounting rail attached to the RV is solidly attached per the manufacturer’s mounting instructions. • Also verify that the Hanger Bracket is securly hung on the rail with the bottom channel resting squarely on the side of the RV and that the grill is locked in position on the Hanger Bracket before using.
Hanger Bracket Orientation The Hanger Bracket may be placed on the hanger rail in either orientation shown below. This allows for the cooking surface of the grill to be higher or lower depending on the user’s preference. Note: The method of attaching the grill to the Hanger Bracket is the same for either orientation. Table Top Use WARNING To reduce risk of serious injury or death from fire or burn hazard:...
Connecting/Disconnecting the Gas Using Gas D A N G E R If you see, smell, or hear the hiss of LP gas escaping from the connections: 1. Do not attempt to light appliance. 2. Extinguish any open flame. 3. Disconnect from fuel supply. Carbon Monoxide Hazard •...
Page 14
WARNING To reduce the risk of serious injury or death from fire or explosion: • If the grill connection fitting or the flexible gas hose connector are bent, deformed or damaged, do not use. Connecting to the LP Gas Supply (continued) 1.
Before Using Your LP Gas Grill Installation Codes WARNING To reduce the risk of serious bodily injury or death from fire or explosion: • This installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54 Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2 or the Standard for Recreational Vehicles, ANSI A 119.2/NFPA 1192 and CSA Z240 RV Series, recreational Vehicle Code, as applicable.
Performing A Leak Test WARNING To reduce the risk of serious bodily injury or death from fire or explosion: • Perform a leak test before lighting your grill for the first time. • Perform a leak test if any gas component is changed. •...
Lighting the Grill WARNING To reduce the risk of serious bodily injury or death from fire or explosion: • Open Hood before lighting the grill to release trapped gas. • During failed lighting attempts, or if the Burner goes out during operation, turn Control Knob “Off” to dissipate any accumulated gas.
Manually Lighting the Grill 1. Open the Hood. IMPORTANT: Make sure Control Knob is turned “Off.” 2. While holding a lit match near the burner, push Burner Control Knob in and turn 90 degrees counterclockwise to the High position. (Fig. 4) If Burner goes out during operation, turn Control Knob to the “Off”...
Cooking On the Gas Grill WARNING To reduce the risk of serious injury or death from fire, explosion or burn hazard: • Never use charcoal or lighter fluid in your gas grill. Keep this outdoor cooking appliance clear and free from combustible materials, gasoline, and other flammable vapors and liquids.
Controlling Flare-ups: Flare-ups are part of cooking meats on a grill. This adds to the unique flavor of barbequed food. However, excessive flare-ups can overcook your food and create a dangerous situation for you and your grill. Excessive flare-ups may result from large amounts of fat on the food being cooked or the build up of grease in the grill.
Care and Maintenance Cleaning the Grill CAUTION To reduce risk of laceration hazard, wear protective gloves when handling parts with sharp edges. Drip Tray: Remove the Drip Tray under the grill bowl after the grill has cooled completely. Scrape away food and fat residue from the Drip Tray.
Page 22
4a.(6TV1S) Detach the electrode wire from the igniter and lift up gently on the back of the burner while sliding the end of the burner off of the valve nozzle (Fig. 8). Gently pull the electrode wire back through the firebowl until it comes free with the burner.
7. Check the Electrode to see if it is loose. If so, tighten the screw holding the Electrode to maintain 3/16” gap be- tween Electrode tip and Burner. NOTE: Before next step, you may wish to clean the rest of the grill. See “Cleaning the Grill” section. 8.
Emergencies Problem Possible Cause Solution Gas leaking between Improper installation, con- Remove Gas Supply line, clean and reconnect. See LP Gas Supply and Valve con- nection not tight, damage or “Leak Test” and “Connecting to the LP Gas Sup- nection. debris in connections.
Page 25
Troubleshooting Problem Possible Cause Solution Burners will not light using See re-assembly after cleaning in Care and Maintenance. Burners not assembled correctly. a match Turn on LP gas supply. Gas supply is turned off. Properly connect the LP gas supply as described in the Gas supply connection is loose.
Parts List Description Quantity If you need replacement parts, refer to the Parts Illustrations to Thermometer find the exact parts you need. Thermometer Bezel If you have any questions or need help, go to www.aussiegrills. Hood com or contact Customer Service at 1-800-251-7558. Be sure to Hood Pivot Pin have the grill model number and serial number that are printed on Hood Pivot Pin Nut (not shown)
Limited Warranty MECO CORPORATION - LIMITED WARRANTY This product is warranted to the original consumer purchaser against defects in material and workmanship under normal outdoor household use and correct assembly (if assembled by the consumer purchaser). Burners are warranted for a period of two (2) years from the date of purchase. Stainless steel parts are warranted for a period of one (1) year (for rust-through only) from the date of purchase.
