Aussie
LP Gas Grill
Assembly and Use Manual
Bonza 3 Elite
FOR OUTDOOR HOUSEHOLD USE ONLY. NOT FOR COMMERCIAL USE.
For Customer Service, call 1-800-251-7558 or visit our web site at www.aussiegrill.com
• Failure to follow these instructions could result in fire or explosion which could cause death,
serious personal injury, or property damage.
• Read and follow instructions carefully before assembly or use.
• Do not use this product for any other purpose than which it is intended.
• These instructions must be kept with the user. SAVE THESE INSTRUCTIONS.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
®
by Meco
Bonza 4 Elite
1. Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
®
Bonza 6 Elite
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aussie Bonza 3 Elite
Summary of Contents for Aussie Bonza 3 Elite
-
Page 1: Parts Illustrations
Meco ® LP Gas Grill Assembly and Use Manual Bonza 3 Elite Bonza 4 Elite Bonza 6 Elite FOR OUTDOOR HOUSEHOLD USE ONLY. NOT FOR COMMERCIAL USE. For Customer Service, call 1-800-251-7558 or visit our web site at www.aussiegrill.com •... -
Page 2: Table Of Contents
— NOTICE — MECO CORPORATION STRIVES TO BE A QUALITY SUPPLIER OF CONSUMER PRODUCTS. IF WE OMITTED ANY PARTS NEEDED FOR ASSEMBLY, OR YOU NEED TROUBLESHOOTING INFORMATION, PLEASE CONTACT US USING OUR TOLL FREE NUMBER. THANK YOU FOR PURCHASING A MECO CORPORATION PRODUCT. CUSTOMER SERVICE DEPARTMENT 1-(800)-251-7558 8 am - 5 pm E.S.T Mon. -
Page 3: Assembly Instructions
ASSEMBLY INSTRUCTIONS To reduce the risk of injuries: · Wear protective gloves when handling parts that have sharp edges to prevent cuts. · Some assembly may require help from another person to prevent handling or lifting injury. Observe where noted. TOOLS: and/or STEP 1) Legs/Side Table Assembly:... -
Page 4: Step 2) Install Lp Cylinder Storage Guard
To reduce the risk of serious bodily injury, fire or death: · Do not store a spare LP gas cylinder under or near the LP gas grill. · Do not remove guards or devices to prevent storage of spare cylinder under an LP gas grill. STEP 2) Install LP Cylinder Storage Guard: Place the LP Cylinder Wire Guard at an angle through the first and second to last openings of the Bottom Shelf. -
Page 5: Step 3) Assemble Bottom Shelf To Legs
To reduce the risk of injury from handling or lifting: · Assembly may require help from another person. Step 3) Assemble Bottom Shelf to Legs: • Place the Leg/Side Table/LegAssemblies opposite each other with the velcro patches on same side. (FIG. 3) •... -
Page 6: Step 4) Assemble Wheels, Casters, And Lp Cylinder Support
Step 4) Assemble Wheels, Casters, and LP Cylinder Support: • Thread Caster Wheels into the Right Side Legs and tighten securely using a 3/4” wrench or socket. (FIG. 4A) • Place Cylinder Support on bottom side of Cart Assembly with Cylinder Lock Bolt towards the end of the Cart Assembly. -
Page 7: Step 5) Assemble Grill Body To Cart
To reduce the risk of injuries: · Wear protective gloves when handling parts that have sharp edges to prevent cuts. · This assembly may require help from another person to prevent handling or lifting injury. Step 5) Assemble Grill Body to Cart: •... -
Page 8: Step 6) Install Control Knobs, Fabric Panel And Hood
Step 6) Install Control Knobs, Fabric Panel, and Hood Handle: • Align the flat keyed hole in the Control Knobs with the keyed stem of the Control valves. Push the Control Knobs onto the Valve stem. (FIG. 6A) • Open the Hood and position the handle with the bolt heads facing up. Align the threaded holes in the handle with the two holes in the hood. -
Page 9: Step 7) Install Bottom Panel And Grease Tray
To reduce the risk of a cut injury: · Wear protective gloves when handling parts that have sharp edges. Step 7) Install Bottom Panel and Grease Tray: Slide the Bottom Panel into the track at the bottom of the grill body. (FIG. 7A) Secure Bottom Panel into Body Assembly with a ST 4.0 x 10 Screw on each side. -
Page 10: Step 8) Install Flame Diffuser
Step 8) Install Flame Diffuser: Place a Flame Diffuser in the guides over each Burner. (FIG. 8) (28) Flame Diffuser Flame Diffuser Guides FIG. 8 Step 9) Install Cooking Grids: Place Cooking Grids onto the front and back Bowl ridges over the Flame Diffusers and Main Burners. -
Page 11: Connecting/Disconnecting The Gas
CONNECTING/DISCONNECTING THE GAS USING GAS · Never fill the LP gas cylinder more than 80% of cylinder volume. (20 lb. maximum) Do not ask the propane supplier to over-fill the cylinder. · If you obtain LP gas through a cylinder exchange CARBON MONOXIDE HAZARD dealer, make sure you get a safe and adequate O.P.D. -
Page 12: Disconnecting Lp Gas Cylinder
OPERATING AND MAINTINING 4) Turn the adjusting knob clockwise to secure LP cylinder inside support bracket. (FIG. 13A) YOUR LP GAS GRILL BEFORE USING YOUR LP GAS GRILL INSTALLATION CODES To reduce the risk of serious bodily injury or death: ·... -
Page 13: E) Lighting Using The Ignitor
How to perform a leak test: 8) If “growing” bubbles appear on any of the connection points, you have detected a gas leak. Immediately close Supplies Needed for a Leak Test: Clean paint brush, water the LP cylinder valve by turning handle clockwise. and dish washing liquid. -
Page 14: F) Manual Lighting The Grill
MANUAL LIGHTING THE GRILL 6. If any of the burners fail to light,repeat Step 4. The burner should light within three or four attempts. If any or all burners fail to light after three or four attempts following Steps 4-6, turn all knobs to the “Off” position and close To reduce the risk of serious bodily injury or death: the LP gas cylinder valve to dissipate any accumulated ·... -
Page 15: G) Check Your Flame
CHECK YOUR FLAME ROASTING HOOD COOKING Your burners have been preset by the manufacturer for opti- mal flame performance. A blue flame, possibly with a small yellow tip, is the result of the optimal air To avoid burns from the hot air and steam trapped and gas mixture. -
Page 16: D) End Of Cooking Session
CARE AND MAINTENANCE · If you notice grease or other hot material dripping from the grill onto the valve, hose, or regulator, turn off the gas supply immediately. After the grill has cooled, determine the cause and correct it. After To reduce the risk of a cut injury: cleaning the valve and hose and regulator assembly, ·... -
Page 17: Spider Alert
CLEANING THE BURNERS How to Clean the Burners: 1) Make sure the LP cylinder grill control knobs are turned OFF; and the grill is completely cooled. 2) Carefully remove Cooking Grids and Flame Diffusers. 3) Remove the Control Knobs. Control Panel To reduce the risk of a fire beneath the grill: ·... - Page 18 Re-assembly of the Burners: 9) Lift Burner up from the back and pull it towards the rear. In 1) After cleaning, refit the Burners. Slide Electrode into order to clear the warming rack, lean the burner to one side keyhole slot and lay aside. (FIG. 15E) and gently pull the burner mouth away from the valve 2) Lift Manifold Shield up so you may see to slide Burner nozzle.
-
Page 19: C) Storage
1) Disconnect LP gas cylinder from grill and store outside, in STORAGE a dry, well-ventilated area, away from any sources of heat or ignition. Re-cap LP cylinder valve with the Safety Cap. 2) Wrap the burners with aluminum foil to prevent insects from entering the burner holes. -
Page 20: Troubleshooting
TROUBLESHOOTING Possible Cause: Solution: Problem: Make sure burner tube is over the gas nozzle. Burner is not connected to Burner will not light Valve. using the Igniter When lighting the Burner, push-in and turn control panel knob Not pausing long enough counter-clockwise until you feel resistance. -
Page 21: Important Notice-Lp Cylinder With Opd
TROUBLESHOOTING (Cont’d) Solution: Problem: Possible Cause: Gas in LP Cylinder is low Check LP gas cylinder. Refill if necessary. Low flame or low heat Natural Gas supply pressure Check shut-off valve. Check for leaks supply line pressure. is low Turn control knobs to “off” position and turn LP gas cylinder handle Excess flow valve tripped in clockwise until it stops. - Page 22 SERVICE PARTS HINGE TEMPERATURE GUAGE HOOD ASSEMBLY HANDLE COOKING GRID FLAME DIFFUSER IGNITER MANIFOLD ASSEMBLY HOOD STOP CROSSOVER BURNER BODY ASSEMBLY CONTROL PANEL CONTROL KNOB REAR WHEEL LEG REAR CASTER LEG BOTTOM PANEL CYLINDER GUARD GREASE PAN FRONT CASTER LEG CASTER BOTTOM SHELF PRIVACY PANEL...
- Page 23 SERVICE PARTS...
- Page 24 IMPORTANT NOTICE The Gas Grill is setup to operate with a LP Gas Cylinder equipped with an OPD (Overfill Prevention Device). This is a secondary device to prevent the overfill of your LP Gas cylinder. The proper methods for the filling of your LP Gas cylinder are by weight or volume, as described in NFPA 58.
-
Page 25: Limited Warranty
MECO CORPORATION LIMITED WARRANTY This product is warranted to the original consumer purchaser against defects in material and workman- ship under normal outdoor household use and correct assembly (if assembled by the consumer-purchas- er). Burner and Cooking Grid are warranted for a period of one (1) year from the date of purchase. All other parts are warranted for a period of one (1) year from the date of purchase.
Need help?
Do you have a question about the Bonza 3 Elite and is the answer not in the manual?
Questions and answers

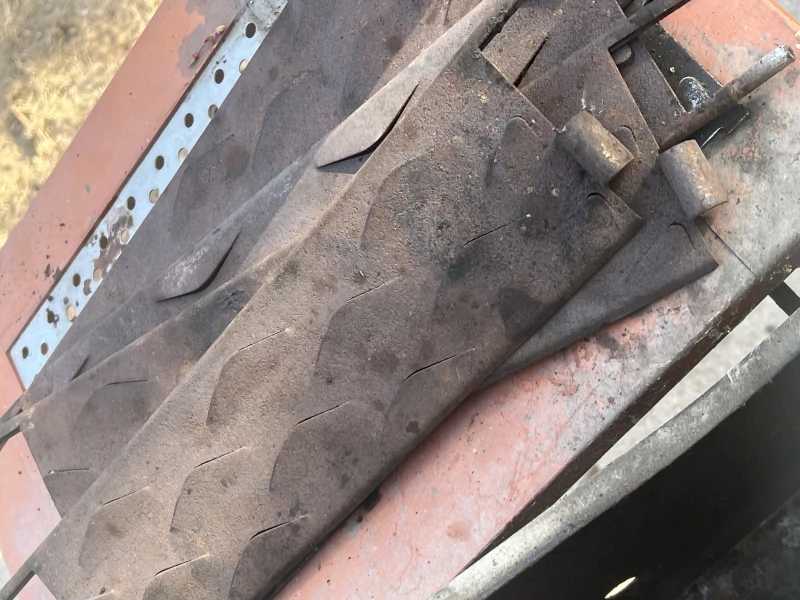

How do you install heat plates
