Bypassing Sensor Inputs

There are times when you need to temporarily bypass all sensor inputs to
the unit, such as when remote starting the vehicle. Anytime an auxiliary
channel output is used, all inputs are bypassed for 5 seconds. During the 5
second bypass period, ground can be supplied to the H1/6 Blue wire without
triggering the unit.
When the 5 second bypass period ends, if the unit sees ground on the H1/6
Blue wire, all trigger inputs except the door trigger input will remain bypassed
until 5 seconds after ground is removed from the BLUE wire. The ignition
input needs to be bypassed during remote start also. This can be done using
the status and ignition output of a Directed Electronics remote engine starting

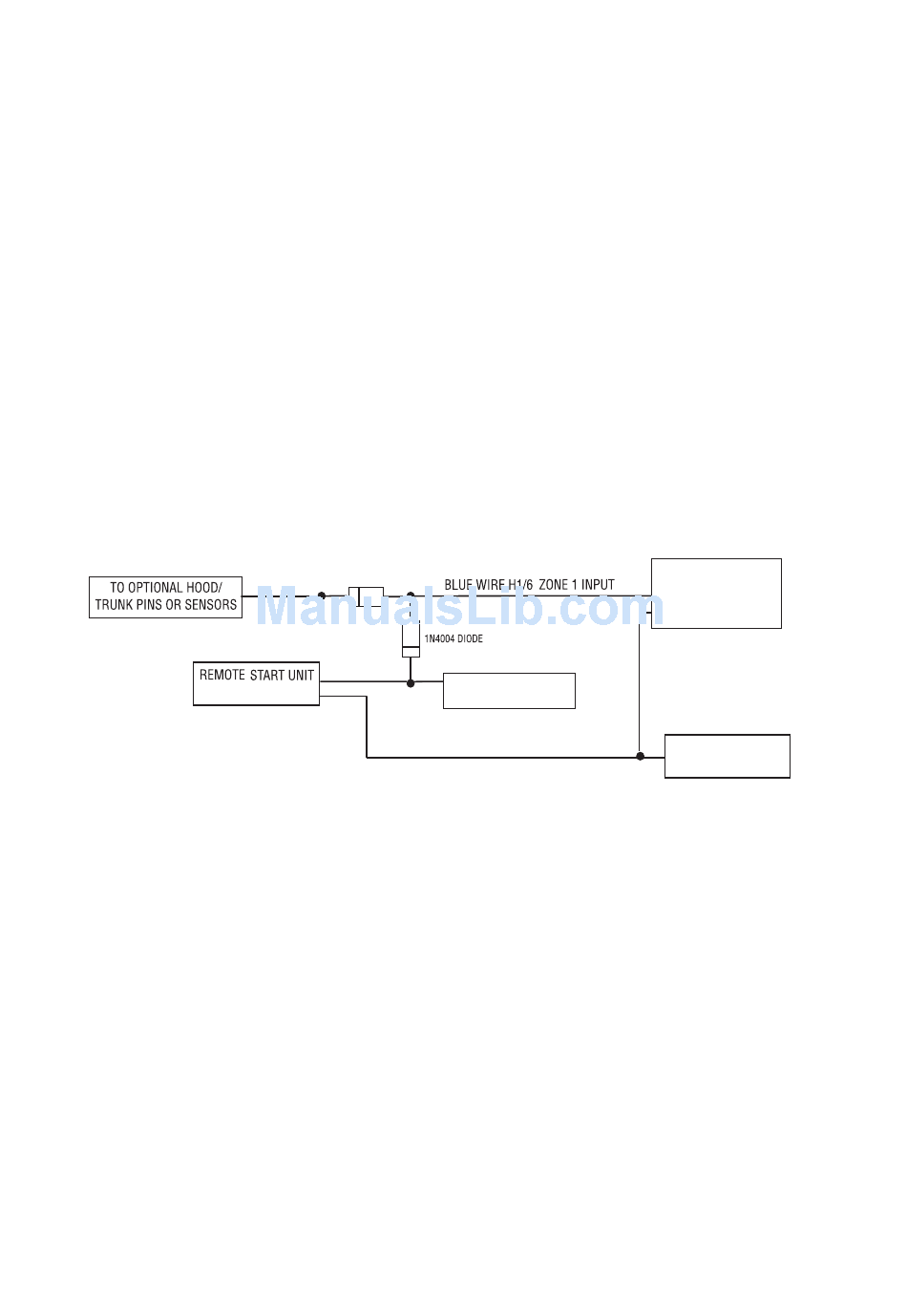

unit as shown in the following diagram:
17
-) During remote
(
start output
Yellow ignition output
from DEI remote start
© 20 0 8 D i re cte d E l ec tro n i cs- Al l ri g ht s res e r v e d.
Alarm system
Yellow H1/9
ignition input
Starter kill
relay
