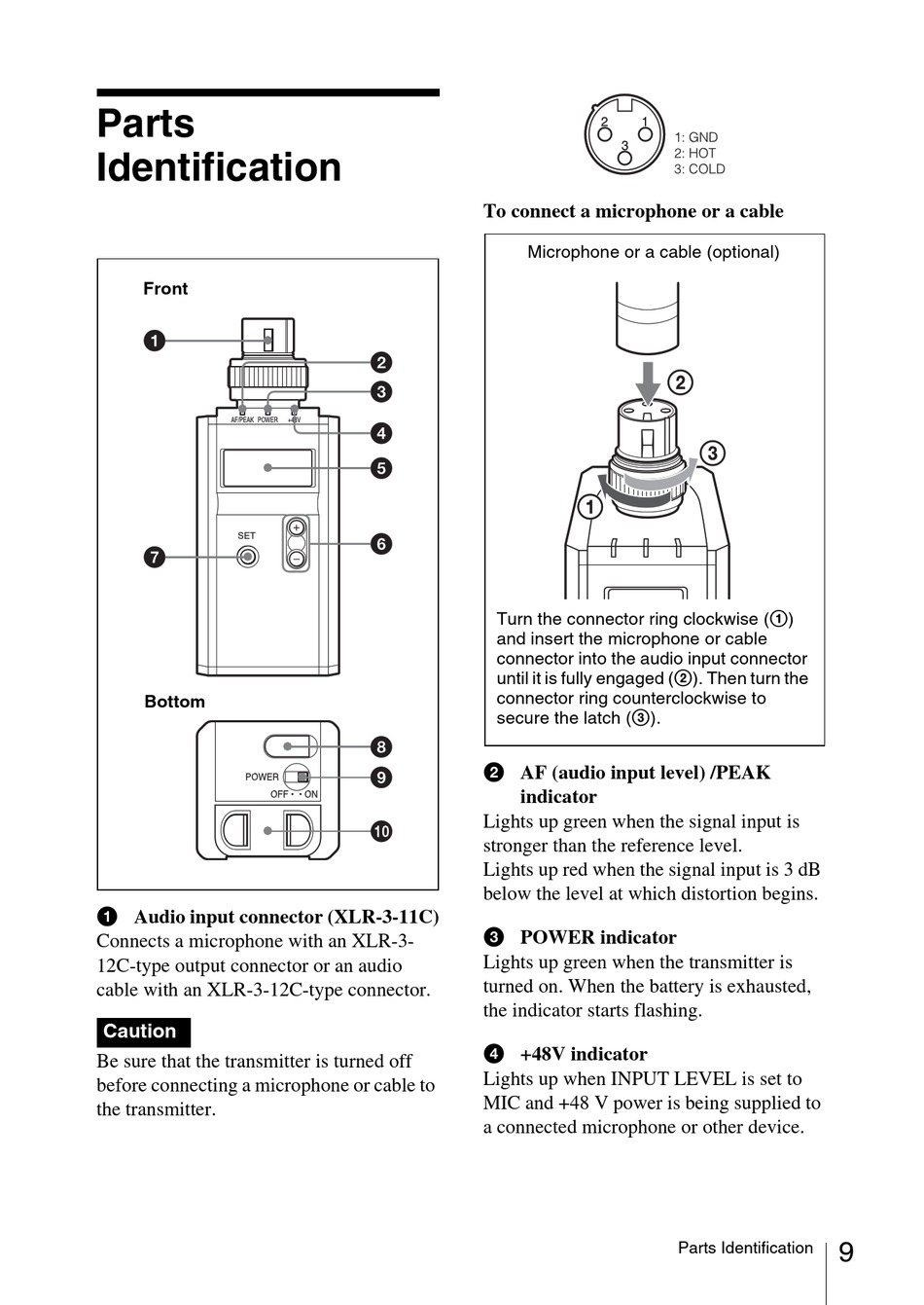

Parts
Identification
Front
Bottom
a Audio input connector (XLR-3-11C)
Connects a microphone with an XLR-3-
12C-type output connector or an audio
cable with an XLR-3-12C-type connector.
Caution
Be sure that the transmitter is turned off
before connecting a microphone or cable to
the transmitter.
To connect a microphone or a cable
Microphone or a cable (optional)
Turn the connector ring clockwise (1)
and insert the microphone or cable
connector into the audio input connector
until it is fully engaged (2). Then turn the
connector ring counterclockwise to
secure the latch (3).
b AF (audio input level) /PEAK
indicator
Lights up green when the signal input is
stronger than the reference level.
Lights up red when the signal input is 3 dB
below the level at which distortion begins.
c POWER indicator
Lights up green when the transmitter is
turned on. When the battery is exhausted,
the indicator starts flashing.
d +48V indicator
Lights up when INPUT LEVEL is set to
MIC and +48 V power is being supplied to
a connected microphone or other device.

Parts Identification

9
