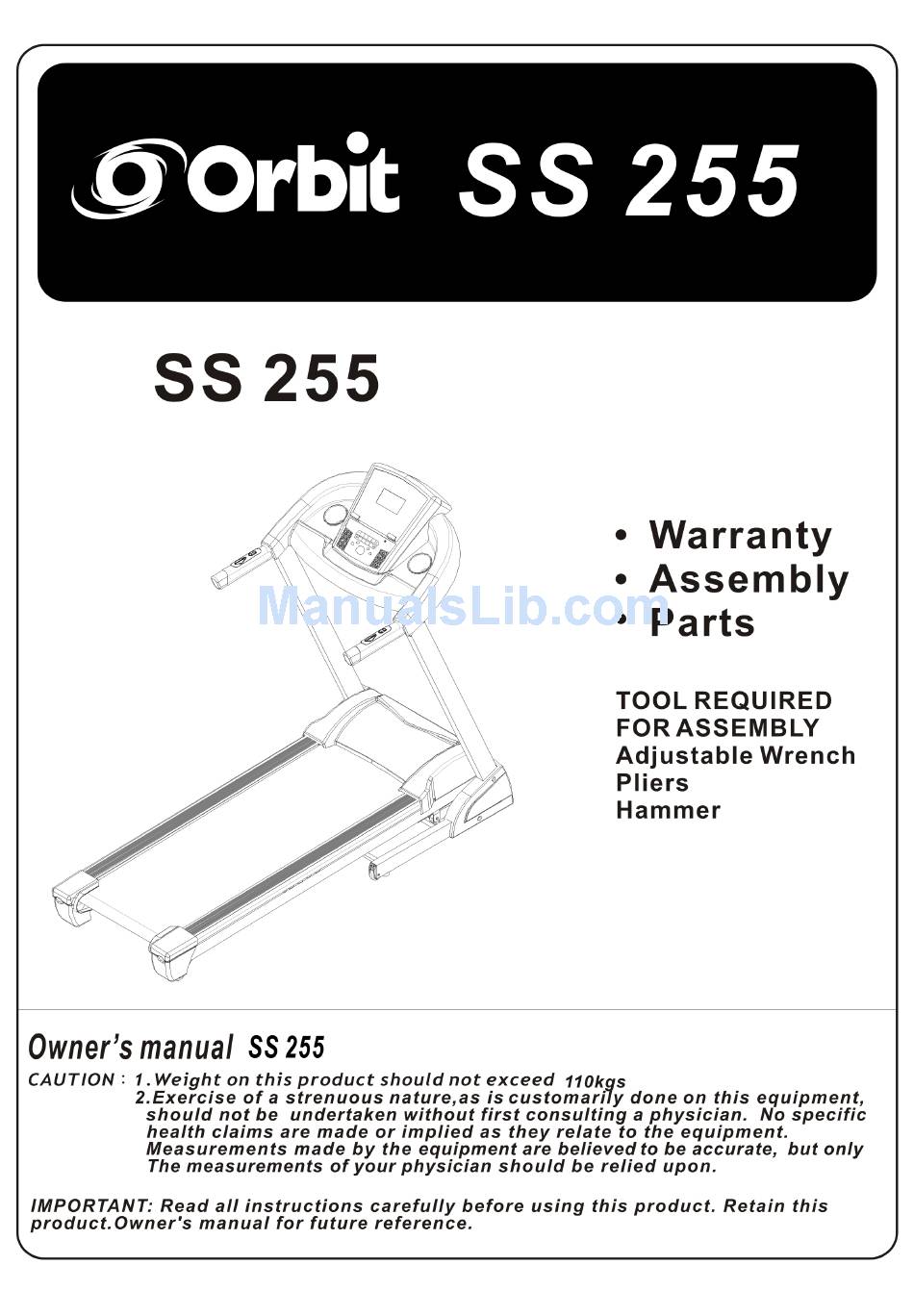

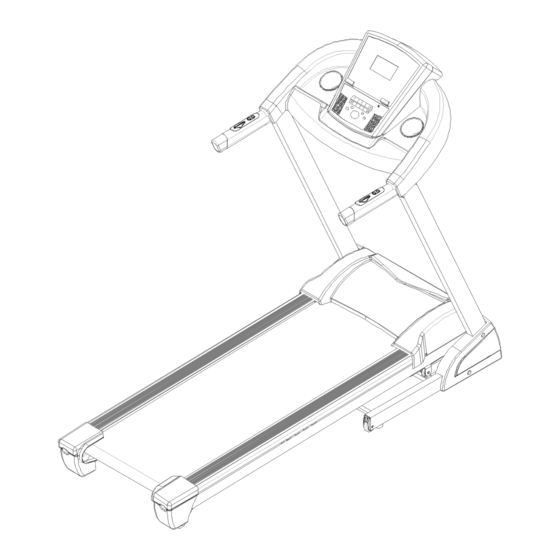

Orbit SS 255 Owner's Manual
  1. Manuals
  2. Brands
  3. Orbit Manuals
  4. Treadmill
  5. SS 255
  6. Owner's manual

Orbit SS 255 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS 255 and is the answer not in the manual?

Questions and answers

Related Manuals for Orbit SS 255

Summary of Contents for Orbit SS 255

  • Page 2: Table Of Contents

    CONTENT -------------------------------------------------------------------------------------------------------------------------------- CONTENT ----------------------------------------------------------------------------------2-3 IMPORTANT SAFETY PRECAUTIONS -------------------------------------------------------------------------------------------------3-5 ASSEMBLY INSTRUCTIONS ------------------------------------------------------------------------------6 FOLDING & UNFOLDING INSTRUCTIONS ----------------------------------------------------------------------------------------------------------7 GROUNDING METHODS -------------------------------------------------------------------------------------------------------------8-13 OPERATION GUIDE ----------------------------------------------------------------------------------------------------14 GETTING STARTED GUIDE --------------------------------------------------------------------------------------------------------------15 SAFETY EXERCISES -----------------------------------------------------------------------------------------------------------16 WARM-UP EXERCISES ---------------------------------------------------------------------------------------------17 MAINTENANCE INSTRUCTIONS ----------------------------------------------------------------------------------------------------------------18 BELT ADJUSTMENT -------------------------------------------------------------------------------------------------------------19 EXPLODED DRAWING -------------------------------------------------------------------------------------------------------------------------20-22 PARTS LIST ERROR CODE AND SIGNIFICANCE-----------------------------------------------------------------------------...

  • Page 3: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS WARNING: Before starting any exercise program, consult with your physician or health professional， especially the person who is above 35 years old people or has some health problems before. We take no responsibility for any troubles or hurts due to above reasons. Don't power on until you finish assembly the treadmill and covering the protected top of motor.

  • Page 4: Assembly Instructions

    15. The treadmill is for home use only. 16. The treadmill maximum user weight is 110kgs 17. Please do not overuse the treadmill so can avoid any injury and do not use incorrect way for your safety. 18. When the treadmill is not being used, please keep the safety pull pin in the safety place to avoid the other use.
  • Page 5 STEP 1：According to the following steps to lift up the computer bracket. Be careful not press the line when folding M8*45 （D11） STEP 2： Secure bottom frame with bolt and the inner washer then secure the (D17), （D17）. console onto the upright tube with bolt and inner washer Attach the side M8*15(D16)
  • Page 6 Step 3: Put on the safety key(C14） ，MP3 connect line（C21）and Power code(C15). ATTENTION: Must confirm complete assembly as the required above and lock all bolts. Do the following operations after checking everything is OK. Before you use the treadmill, please read the instructions carefully.

  • Page 7: Folding & Unfolding Instructions

    Folding instruction Lift up the machine and force to pull up until you heard "click" that made by safety casing stuck the pneumatic cylinder. Unfolding instruction Kick the safety sleeve lightly and pull down the machine at the same time as the arrow direction.

  • Page 8: Grounding Methods

    Grounding Methods This product must be grounded. If it should malfunction or breakdown, grounding provid path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

  • Page 9: Operation Guide

    Operation Guide WINDOW DISPLAY 1.1. 1.2. START Normal start after 5 seconds countdown 1.3 PROGRAM 1 manual mode，12 pre-set programs, 1 body fat program , HRC, 3 countdown function 1.4. SAFETY LOCK FUNCTION The window shows"---" when take away the safety lock and the treadmill will stop quickly with "didi" alarm noise.
  • Page 10 mode P1-P12 and body fat; 1.5.3 “MODE” BUTTON When the treadmill is not running, press this button to choose countdown modes:”H-1”,”H-2”,”H-3”;:H-1” is the time countdown mode, and “H-2” is the distance countdown mode, “H-3” is the calorie countdown mode; press the “SPEED+/-” or “INCLINE+/-“button to adjust the data.
  • Page 11 1.6.7 ALL WINDOW DISPLAY DATA RANGE TIME：0:00 – 99.59(MIN) DISTANCE: 0.00 – 99.9(KM) CALORIES: 0.0 – 999 (C) SPEED:0.8 -18.0(km/h) PULSE: 50 – 200 (BPM) INCLINE：0 – 12 1.7 PULSE FUNCTION When the treadmill is running, hold the hand pulse about 5 seconds, it will display pulse data. The pulse data range is 50-200 times/ minute.
  • Page 12 INCLINE SPEED INCLINE 1.9 Manual model operation 1.9.1 Press start key, time count down 5 seconds, then treadmill will start to work with initial speed 0.8km/h 1.9.2 Press speed +/-, you can adjust the speed 1.9.3 Press incline+/-, you can adjust the incline 1.9.4 Press stop, you can stop treadmill at working state 1.9.5 Press quick speed key, you can quickly adjust the speed you want 1.9.6 Press quick incline key, you can quickly adjust the incline you want...
  • Page 13 Height 100----200 Weight 20-----150 FAT ≤19 Under weight FAT = (20---25) Normal weight FAT = (25---29) Over weight FAT ≥30 Obesity 1.12 Heart Rate Control (HRC) There have 3 HRC programs Press“PROG”，and choose HRC to enter heart rate control system. SPEED：display HRC;...
  • Page 14 by decrease/increase 1 level every 15 seconds . The machine will enter into “COOLDOWN” mode and incline is down to “0” when the exercise time is in the last 2 minutes, the speed will reduce by 0.5KM/H per 10 seconds and it will stop to reducing until the machine stops after the speed is down to 3km/h.

  • Page 15: Getting Started Guide

    Getting started guide PREPARE f you are around 35 years old, or have health problem, even this is your first time to do fitness exercise, please consult doctor or professional before use it. Before do exercise, please stand on the side to learn how to operate, such as start, stop and speed adjustment. After that stand on the plastic deck of the treadmill board, catch hold of the handrail, start by 1.6--3.2 km/h low speed, stand straight, look forward, one foot try to do few times, then stand on the belt to do exercise.

  • Page 16: Safety Exercises

    Warm-up Exercise Please consult professional staff before do exercise. He can help recommendation exercise rate/intension and time according to your age and health condition. When running, if you feel chest tightness or chest pain, irregular Heartbeats, short of breath, dizziness or other unwell, please stop immediately! And consult professional before you want continually to do exercise.

  • Page 17: Warm-Up Exercises

    SAFETY EXERCISE It is better to do some warm-up exercise. Warm the muscle easy stretch, so use 5-10 mins to warm-up. Then stop and according below method to do stretch exercise for five times, and each foot do 10 seconds or more every time. After running, do those stretch exercises again 1.

  • Page 18: Maintenance Instructions

    Maintenance Instruction WARNING：Please make sure pull out the treadmill's power plug before cleaning or maintaining the product. CLEANSING：General cleaning or the unit will greatly prolong the treadmill's life. Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails.

  • Page 19: Belt Adjustment

    Belt Adjustment Place treadmill on a level surface. Make treadmill run at approximately 6-8 km/h, observe the running belt deviate condition. f the belt has drifted to the right, unplug the safety lock and power switch, and turn the right adjusting bolt 1/4 turn clockwise, then insert the power switch and safety lock, make the treadmill running, observe the running belt deviate condition.

  • Page 20: Exploded Drawing

    Exploded Drawing...

  • Page 21: Parts List

    Parts list A Welding parts Description Main frame Base frame Left right Right upright Handle bar frame Incline bracket B Plastic parts Console housing Console panel Overlay Top motor cover Bottom motor cover Side rail L end cap R end cap foot pad Water bottle holder Cushion...
  • Page 22 Adjustable wheel C Electric and drive parts DC motor Motor bracket Incline motor Running board Drive belt Cylinder Rear roller Front roller Running belt Lower controller Single line Upper console wire Lower console wire Safety key Trail power code Power switch Light sensor Speed button with handle pulse Incline button with handle pulse...
  • Page 23 Bolt M6X45 mm Bolt M8X60mm Spring washer 8 Bolt M8X20 mm Round head hex bolt M8X45mm Bolt M8X80mm Bolt M5X15mm bolt ST4.2X16 Round head hex bolt M10X60mm Round head hex bolt M8X15mm Inner washer 8 bolt ST4.2X16 bolt ST4.2X45 Round head hex bolt M8X30mm Nylon nut M10 Flat washer Allen wrench 80X80XT5mm...

  • Page 24: Error Code And Significance

    Error code and significance Fault Code Fault Description Fault Processing The controller is not working and going into fault. The machine can not run, the computer shows fault code “E1”, and the buzzle will ring three times. Communication abnormal: The control and computer has abnormal communication after Possible Reasons: Communication obstructed between controller...
