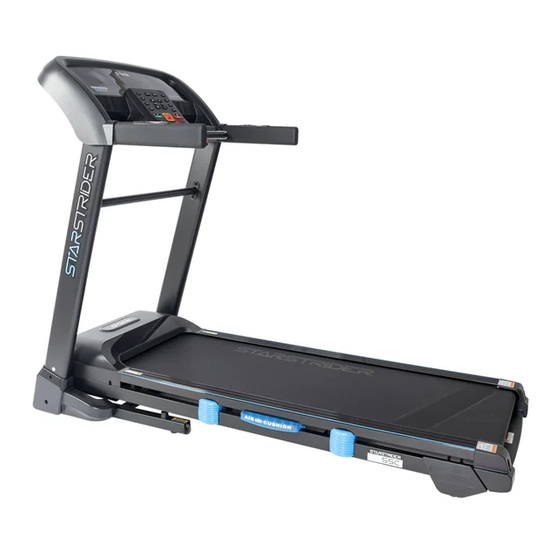

Summary of Contents for Orbit StarStrider SS55C

  • Page 2: Table Of Contents

    CONTENTS Contents Safety Caution Assembly instruction Operation guide 7-19 How to fold and move Suggested stretches 21-22 Maintenance 23-24 Exploded drawing Part list TROUBLE SHOOTING...

  • Page 3: Safety Caution

    SAFETY CAUTIONS When using this product, basic precautions should always be followed, including the following: Please read the instruction carefully before starting to use this product. Danger – To reduce the risk of electric shock： Always unplug this product from the electrical outlet immediately after using and before cleaning.
  • Page 4 SAFETY CAUTIONS GROUNDING INSTRUCTIONS The products must be grounded first. If malfunction or breakdown occurs, grounding will provide a path of least resistance for electric current to reduce the risk of electric shock. The product is equipped with a cord having an equipment-grounding conductor and a grounding plug.

  • Page 5: Assembly Instruction

    ASSEMBLY INSTRUCTIONS OPEN THE BOX YOU CAN FIND THE ALL PARTS AS BELOW Part list Quantit Description Quantity Description MAIN FRAME FLAT WASHER M8 8PCS LEFT UPRIGHT SCREW M6*10MM 4PCS RIGHT UPRIGHT SAFETY KEY CONSOLE SET 1SET LUBRICATION OIL BASE COVER-L SCREWDRIVER BASE COVER-R WRENCH 6MM...
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 1 1. Please note that this treadmill need at least 2 people to finish assembly. 2. Open the carton box, and take out all the protection foam and assembly parts. 3. As the photo shows, take out the running deck from the box, lay it on the flat floor, and then cut the belt.
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 3 1. Connect the signal wire from console to the signal wire of the left and right uprights. 2. Use the 5# wrench (17) to fasten the console to the left and right upright with each 4pcs M8x15 bolts (8) and flat washers M8(11) Pay attention to the connection of the cable, a wrong connection or rough operation would...

  • Page 8: Operation Guide

    OPERATION GUIDE GENERAL SAFETY TIPS A. Practice mounting and dismounting your treadmill before beginning your workout. B. Attach the Safety Key to the Computer (the treadmill will not operate without the Safety Key). Clip the other end of the Safety Key to your clothing before exercising to ensure the treadmill will stop if the user accidentally walks off the Treadmill.
  • Page 9 OPERATION GUIDE GETTING STARTED NOTES: . Check to make sure nothing is on or will hinder the movement of the treadmill. 2. Plug in the power cord and turn the treadmill ON Stand on the foot rails of the treadmill. Attach the safety key clip to part of your clothing.
  • Page 10 OPERATION GUIDE STEP 4: During the program you can adjust the speed and incline by pressing SPEED ∧/∨ +/- and INCLINE buttons, or QUICK SPEED and QUICK INCLINE buttons to jump directly to a setting. Press STOP button to stop your workout or pull safety key away from its position STEP 5: to shut down the computer.
  • Page 11 OPERATION GUIDE USER PROGRAM This program is for user to edit a personal program; the speed and incline of each segment can be edited according as personal’s desire. There are 18 segments on this program for user to edit workout program. Once the program is set, it will be stored on the computer, the computer will proceed the program by pressing START/STOP button.
  • Page 12 OPERATION GUIDE Body condition Result BMI > 30 Overweight 26 < BMI < 30 19 < BMI < 25 Thin BMI < 19 BLUETOOTH MUSIC PLAYER The treadmill have the bluetooth function, then connect the smart phone as follow steps: STEP1: Turn on the Bluetooth of the smart phone, search the device, and click to connect the devices when RUN MUSIC appears.
  • Page 13 OPERATION GUIDE 【1】：Generate a verification code to log in directly 【2】：Tap 'More' -> Password Login to input the existing account and password 【3】：Log in as a guest 2.2 Device Connection Before connecting the device, please make sure the system Bluetooth and GPS(Andoird8.0 and above required) are ON status.
  • Page 14 OPERATION GUIDE Tap a model【1】 to enter the corresponding sports model. And connect the desired device by the nearby devices list【2】. 2.4 Sports Control 【1】 Start the treadmill to enter the sports car table, and control the sports by the control options.
  • Page 15 OPERATION GUIDE Enter [Sports - OutDoor] page to start a related outdoor sports model. 2.7 Discover Enter [Discover] page to find more sports, diet, course, and other wonderful content recommendations. 2.8 My Center...
  • Page 16 OPERATION GUIDE Enter [Mine] page to view the sports data record, edit profile, change system setting, and so o 3. The Third-Party Application 3.1 Kinomap Search, download, and install Kinomap over the App Store. 【1】Enter Kinomap to select [More] page; 【2】Select to add more fitness equipment;...
  • Page 17 OPERATION GUIDE Search, download, and install ZWIFT over the App Store. 【1】Enter ZWIFT to register an account; 【2】Login account to select the paired riding or running equipment; 【3】Pair device successfully, tap OK to start sport; 【4】For riding equipment, start riding directly. For running equipment, need to press the start button to start running.
  • Page 18 OPERATION GUIDE PRESET PROGRAM CHART P1. WEIGHT LOST SPEED CHANGES Level 1 SPEED(KM/H) Level 2 SPEED(KM/H) Level 3 SPEED(KM/H) Level 4 SPEED(KM/H) Level 5 SPEED(KM/H) Level 6 SPEED(KM/H) Level 7 SPEED(KM/H) Level 8 SPEED(KM/H) P2. CARDIO TRAIN SPEED & INCLINE CHANGES Level 1 ELEVATION SPEED(KM/H)
  • Page 19 OPERATION GUIDE P3. FAT BURN SPEED & INCLINE CHANGES Level 1 ELEVATION SPEED(KM/H) Level 2 ELEVATION SPEED(KM/H) Level 3 ELEVATION SPEED(KM/H) Level 4 ELEVATION SPEED(KM/H) Level 5 ELEVATION SPEED(KM/H) Level 6 ELEVATION SPEED(KM/H) Level 7 ELEVATION SPEED(KM/H) Level 8 ELEVATION SPEED(KM/H) P5.
  • Page 20 OPERATION GUIDE P7. MOUNTAIN CLIMB SPEED & INCLINE CHANGES Level 1 ELEVATION SPEED(KM/H) Level 2 ELEVATION SPEED(KM/H) Level 3 ELEVATION SPEED(KM/H) Level 4 ELEVATION SPEED(KM/H) Level 5 ELEVATION SPEED(KM/H) Level 6 ELEVATION SPEED(KM/H) Level 7 ELEVATION SPEED(KM/H) Level 8 ELEVATION SPEED(KM/H) P8.

  • Page 21: How To Fold And Move

    HOW TO FOLD AND MOVE HOW TO FOLD THE TREADMILL Before folding the treadmill, lower the treadmill to 0 incline level and then unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20kg) in order to raise, lower, or move the treadmill.

  • Page 22: Suggested Stretches

    SUGGESTED STRETCHES A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do the entire program at least two and preferably three times a week, resting for a day between workouts. After several months, you can increase your workouts to four or five times per week.
  • Page 23 SUGGESTED STRETCHES 4. Shoulder Lift Lift your right shoulder up toward your ear for one count. Then lift your left shoulder up for one count as you lower your right shoulder. 5. Toe Touch Slowly bend forward from your waist, letting your back and Shoulders relax as you stretch toward your toes.

  • Page 24: Maintenance

    MAINTENANCE WARNING! Before performing any maintenance to your treadmill, always unplug the power cord from the surge protector. CLEANING: Routine cleaning of your TREADMILL will extend the life of your treadmill. WARNING! To prevent electrical shock, be sure the power to the treadmill is OFF and the unit is unplugged from the wall electrical outlet before attempting any cleaning or maintenance.
  • Page 25 MAINTENANCE Running belt tension adjustment The treadmill has been adjusted and passed QC inspection before leaving the factory. If there is phenomenon of bias running of the belt, the possible reasons might be: A. The frame is not stably laid B.

  • Page 26: Exploded Drawing

    EXPLODED DRAWING...

  • Page 27: Part List

    PART LIST DESCRIPTION Q'TY DESCRIPTION Q'TY BASE WHEEL∮44*18*∮8.5 BASE INCLINE RACK FRAME WHEEL ￠51*22*￠8.5 MAIN FRAME HANDRAIL END CAP LEFT UPRIGHT HANDRAIL FOAM RIGHT UPRIGHT RUNNING DECK BOLT M10*50 RUNNING BELT SCREW M6*20 FOOT RAIL FASTENER BOLT M10*60 POWER CORD JACK BOLT M10*40 BASE CUSHION BOLT M10*45...

  • Page 28: Trouble Shooting

    TROUBLE SHOOTING PROBLEM POSSIBLE CAUSES CORRECTION Console has no 1. Power cord not plugged 1. Check power cord connection. display well. 2. Plug every connector well. 2. Defection on whole set 3. Reset overload protector. cable or not plug well. 3.
