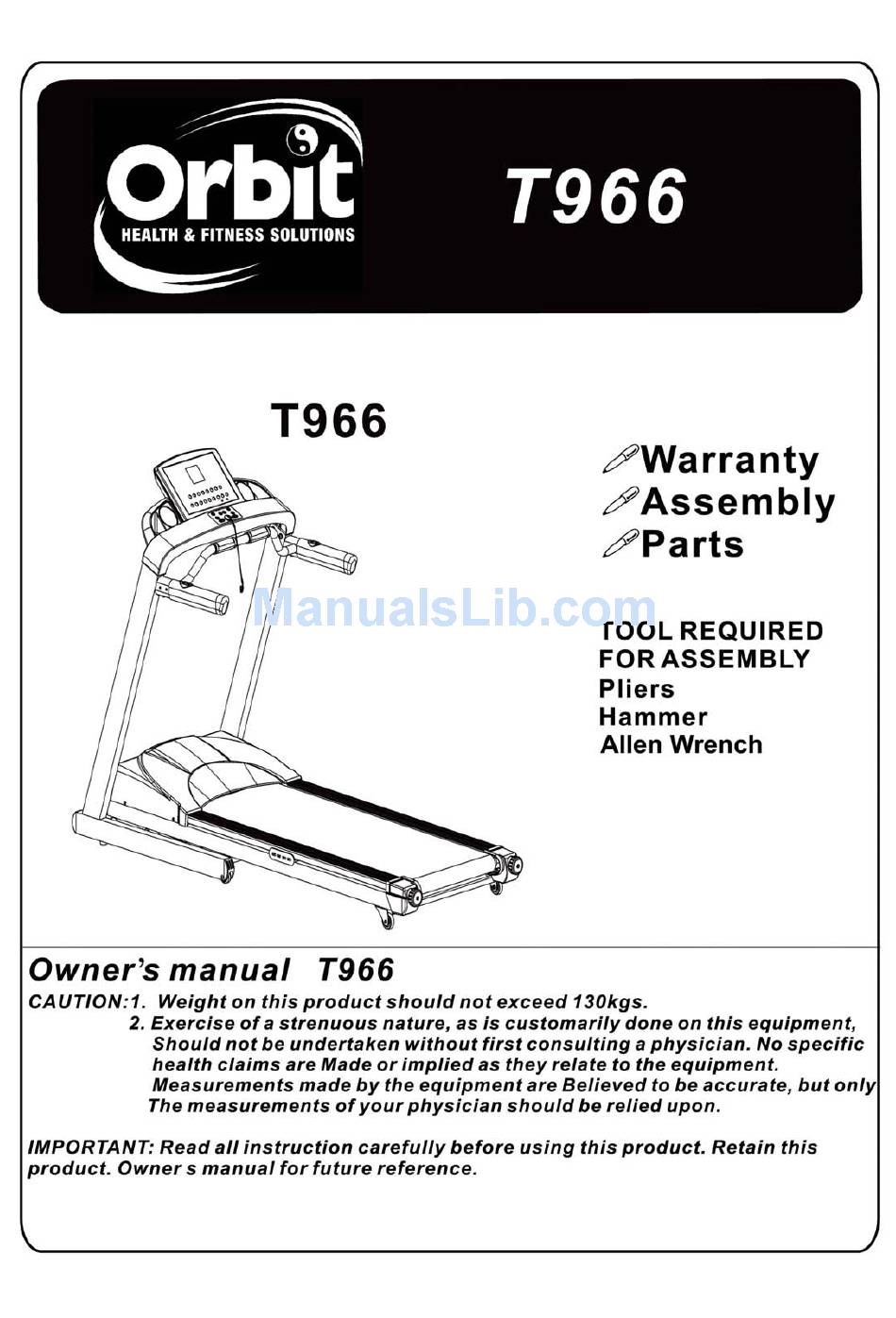

Orbit T966 Owner's Manual

Hide thumbs

Advertisement

Table of Contents

0 0

Advertisement

Table of Contents
loading

Related Manuals for Orbit T966

Summary of Contents for Orbit T966

  • Page 2: Table Of Contents

    Content Manual and Reference --------------------------------------------------------------- 2 Assembly Instructions--------------------------------------------------------------3-5 Folding Instructions -------------------------------------------------------------------6 Technical Parameter --- ---------------------------------------------------------------7 Grounding methods -------------------------------------------------------------------7 Operation Guide----------------------------------------------------------------------8-12 Exercise Instruction ------------------------------------------------------------------13 Maintenance Instruction---------------------------------------------------------13-14 Running belts centering ------------------------------------------------------------15 Exploded Drawing --------------------------------------------------------------------16 Parts list ------------------------------------------------------------------------------17-18...

  • Page 3: Manual And Reference

    MANUAL AND REFERENCE WARNING Read all instructions carefully before using this product. Retain this owner’s manual for future reference: ----When using this treadmill, keep the safety pull pin rope attached to your clothes. ----When you are running, keep your hands swinging natural, look forward, Never look down at your feet.

  • Page 4: Assembly Instructions

    ASSEMBLY INSTRUCTIONS When you open the carton, you will find the below spare parts: Spare parts list： Description Specification Qty Description Specification Sheet metal screw Main Frame M6*16 Lock washer Left upright tube Allen Wrench Right upright tube 5 mm Allen Wrench Handle bar tube 6 mm...
  • Page 5 Notice: Do not turn on before assembly is done. ASSEMBLY STEP 1： Open the carton， get out the above spare parts ， put the MAIN FRAME on the ground. ASSEMBLY STEP 2： Use the 6# allen wrench, drill through the bolt (67) to Lock washer(88), then lock the Left upright (3) onto MAIN FRAME (1) ASSEMBLY STEP 3：...
  • Page 6 ASSEMBLY STEP 4: 1、 Pull through the computer middle wire of Handle bar tube(10) from the left and right Upright(3,4). Then insert the handle bar tube into left and right upright; 2、Fix the handle bar tube(10) and left/right upright with screw driver and M6*16 sheet metal screw(83) ASSEMBLY STEP 5: 1.Connect...

  • Page 7: Folding Instructions

    FOLDING INSTRUCTION Folding up the walking deck Hold the handle bar with one hand and with the other hand hold support (A), then PUSH in an up direction until the deck is locked securely into the adjusting bracket as the upper-left picture shows. Note: The walking deck must lock into adjusting bracket(119) Unfolding down the walking deck...

  • Page 8: Technical Parameter

    TECHNICAL PARAMETER BUILT SIZE 2060*835*1425 Speed range 1.0-20KM/h (mm) FOLDABLE IZE 1060*835*1885 MAX WEIGHT 130KG (mm) RUNNING BELT 2900*500*T2.8 (mm) SIZE 117.5KG NET WEIGHT 0-15 INCLINE LEVELS 1 LCD DISPLAY SPEED, TIME, DISTANCE, CALORIES, INCLINE, PULSE GROUNDING METHODS This treadmill can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage spikes, surges, and noise interference can result from weather conditions or from other appliances being turned on or off.

  • Page 9: Operation Guide

    OPERATION GUIDE WINDOW DISPLAY: 1、”PULSE” WINDOW: Show user’s pulse. When the user holds the Pulse bar with both hands or attach the chest transmitter belt, it can track and display the user’s pulse approx 5 seconds, and the indicating light will be on at the same time. The pulse display range will be 50-200 times/minute(This data just is for your refernce and can’t be as the medicine data) 2、“TIME”...
  • Page 10 BUTTON FUNCTION: 1、 “PROGRAM” Button： When the treadmill is not running, press the program button to choose one of the programs: 9 preset programs, 3 user programs and 3 heart rate programs. “Manual quick start” must press the start button, the treadmill count dowm from 3 to 1 and start at 1.0 kph.;...

  • Page 11: Manual Mode

    Manual mode: 1、 If you do not make any setting and press START button directly, the treadmill will start to move at 1.0km/h, the other windows will start to count from positive direction from windows default, press “INCLINE+”,”INCLINE-”, “SPEED+”, “SPEED-” change the incline and speed. 2、...
  • Page 12 Program exercise chart Each program will divide into 20 grade for the exercise time and each time sect has the speed and incline accordingly. Time Time interval Program SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED...
  • Page 13 reached your desired heart rate, the treadmill will automatically increase the incline level After selecting the HP1/HP3 by pushing the program button, press “mode” the pulse window will flash 30. This is the pre-ser age , press “+” or “-“ on the incline or speed button to select your current age. Press “mode”...

  • Page 14: Exercise Instruction

    3. To end your workout safely, press the PAUSE button or pull out the safety pulling rope, then the treadmill will stop immediately. 4. Please feel free to contact the Orbit service department if the treadmill has any problem. please don’t try to open or amend the product by yourself.

  • Page 15: Maintenance Instruction

    MAINTENANCE INSTRUCTIONS Warning: Unplug the treadmill before cleaning or repairing the treadmill. Clean: Cleaning all the time will prolong the treadmill using life. Get rid of the dust all the time to keep the components clean. Clean the two exposed sides of the running belts will avoid the dust and dirt getting under the belt.

  • Page 16: Running Belts Centering

    2． Loose belts will result in the belt slipping while running, if the belt is too tight it shall decrease the motor performance and creating more friction between the roller and running belts. The most suitable tightness of the belts would be: the belts can be pulled out 50-75mm away from the running boards. 3.

  • Page 17: Exploded Drawing

    EXPLODED DRAWING...

  • Page 18: Parts List

    PARTS LIST Description Specification Description Specification Left /right side MAIN FRAME RIGHT BACK COVER tube60*30*2.0 Left/right BASE FRAME connect REAR ADJUSTING KNOB tube80*40*2.0 LEFT UPRIGHT 100*40*2.0 RIGHT BOTTLE FRAME RIGHT UPRIGHT 100*40*2.0 TUB PLUG COMPUTER BRACKET TUB PLUG INCLINE SUPPORT FRAME FOAM REAR INCLINE FRAME SIDE RAIL...
  • Page 19 PULSE BOLT M10*45L15 ADAPTOR BOLT M10*65L15 OVERLOAD BOLT M8*30 PROTECTER SWITCH M6*28 BOLT PLUG BOLT M6*32 POWER WIRE BOLT M8*15 POWER CONNECTION BOLT M8*65 BOARD BOLT M8*55 RUNNING BOARD INCLINE MOTOR EVA PAD DC MOTOR BOLT M4*6 PC BOARD BOLT M5*12 QUICK KEYS BOARD PROGRAM BUTTON...
