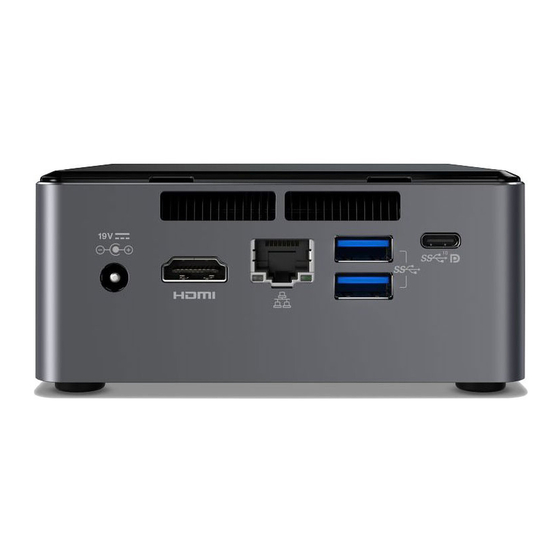

- Page 1 Intel NUC Kit NUC7i7BNH, NUC7i5BNH & NUC7i3BNH User Guide Intel® NUC Kit NUC7i7BNH Intel® NUC Kit NUC7i5BNH Intel® NUC Kit NUC7i3BNH User Guide...
-
Page 2: Before You Begin
If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis. Installation Precautions When you install and test the Intel NUC, observe all warnings and cautions in the installation instructions. To avoid injury, be careful of: ... - Page 3 1. Unscrew the four corner screws on the bottom cover of the chassis and lift the cover. Install an M.2 SSD Intel NUC Kits NUC7i7BNH, NUC7i5BNH, and NUC7i3BNH support 80mm and 42mm M.2 SSDs. For a list of tested M.2 SSDs, go to the Tested Peripherals page on the Support site.
-
Page 4: Installing And Removing Memory
3. Insert the bottom edge of the M.2 card into the connector (B). 4. Secure the card to the standoff with the small silver screw (C). Installing and Removing Memory Intel NUC Kits NUC7i3BNH and NUC7i5BNH have two DDR4 SO-DIMM sockets. Memory requirements: 1.2V memory ... - Page 5 Intel NUC Kit NUC7i7BNH, NUC7i5BNH & NUC7i3BNH User Guide Install SO-DIMMs If you plan to install just one SO-DIMM, install it in the lower memory socket. To install the SO-DIMMs, follow these steps: 1. Observe the precautions in "Before You Begin" on page 2.
- Page 6 Intel NUC Kit NUC7i7BNH, NUC7i5BNH & NUC7i3BNH User Guide Install a 2.5” SSD or Hard Drive For a list of tested 2.5” hard drives, go to the Tested Peripherals page on the Support site. Follow these instructions to install a 2.5” Solid State Drive (SSD) or Hard Disk Drive (HDD): 1.
-
Page 7: Close The Chassis
Intel NUC Kit NUC7i7BNH, NUC7i5BNH & NUC7i3BNH User Guide Close the Chassis After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by hand with a screwdriver to avoid over-tightening and possibly damaging the screws. -
Page 8: Connect Power
Intel NUC Kit NUC7i7BNH, NUC7i5BNH & NUC7i3BNH User Guide 2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC. 3. Slide the Intel NUC onto the VESA mount bracket. Connect Power Country-specific power plug attachments are included in the Intel NUC Kit box. - Page 9 Intel NUC Kit NUC7i7BNH, NUC7i5BNH & NUC7i3BNH User Guide NUC7i7BNHL NUC7i5BNHL NUC7i3BNHL ARG - Argentina CHN - China BRA - Brazil IND - India KOR – South Korea 2. Slide the attachment (B) onto the power plug, locking it into place (A).
-
Page 10: Install An Operating System
Refer to Supported Operating Systems for a list of Intel-validated Windows* operating systems, as well as versions of Linux that have been reported as compatible by Intel NUC owners. Refer to Operating System Installation for system requirements and installation steps.
