Factory Five Racing Mk4 Roadster Assembly Manual page 265

There are two nylon spacers included. They provide preload on the spring so there is more force
holding the ratchet tooth to the fixed gear and making the release button harder to push. Try
using the 1" long spacer first. After the handle is assembled, try the handle and if desired the
other ½" spacer can be added.

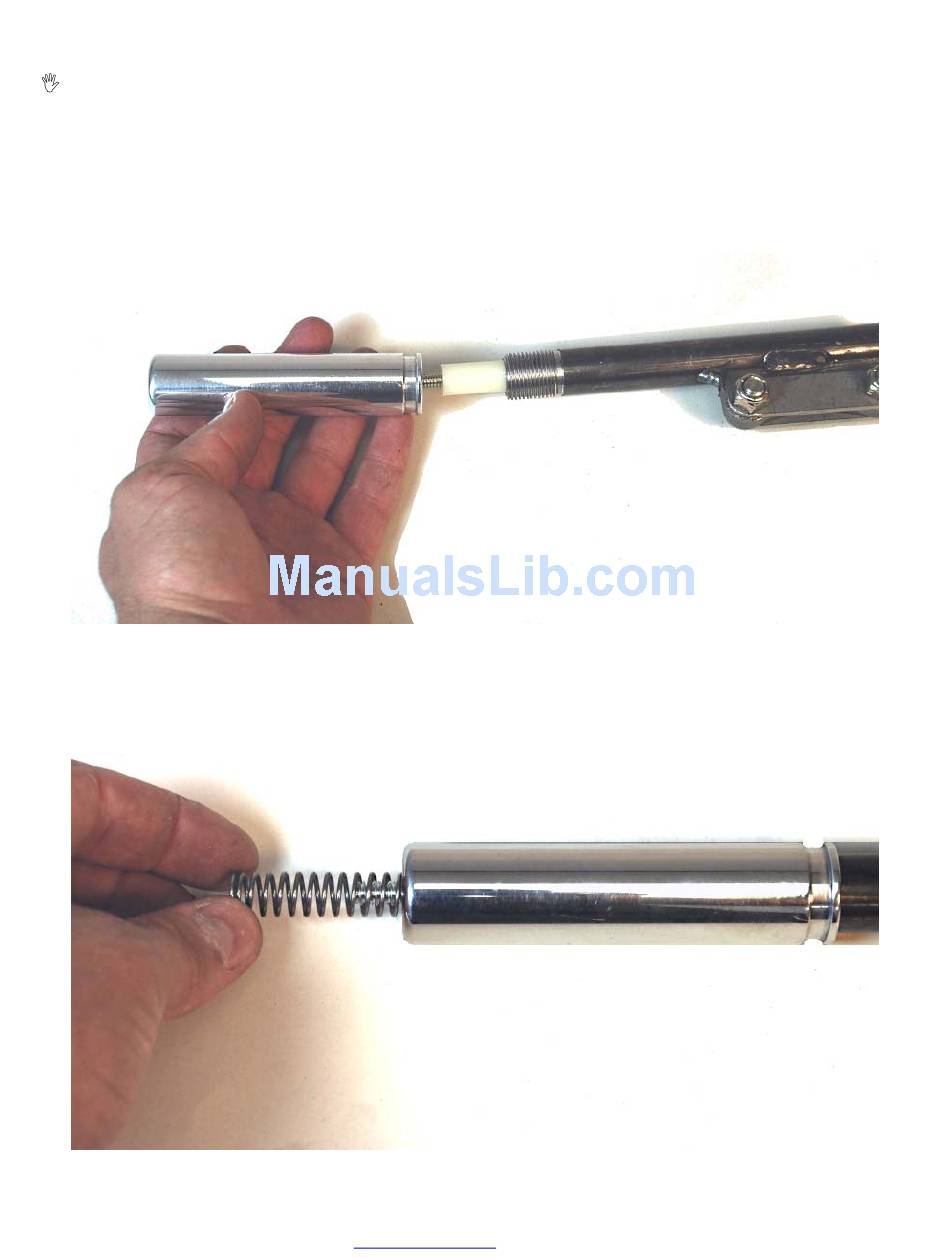

Spray a little WD-40 on the lower handle threads and screw the upper handle onto the lower handle.
Insert the spring into the upper handle over the anchor bolt.
Screw the button onto the end of the anchor bolt.
