Management Port

Port 1 can be used to connect the BitStorm 2600 to a network management
system using a 10BaseT or 100BaseT LAN. A straight-through cable can be used
regardless of the destination interface, since the port automatically distinguishes
between an MDI and an MDIX.
Procedure
To use Port 1 as the out-of-band management port:
2600-A2-GN20-50

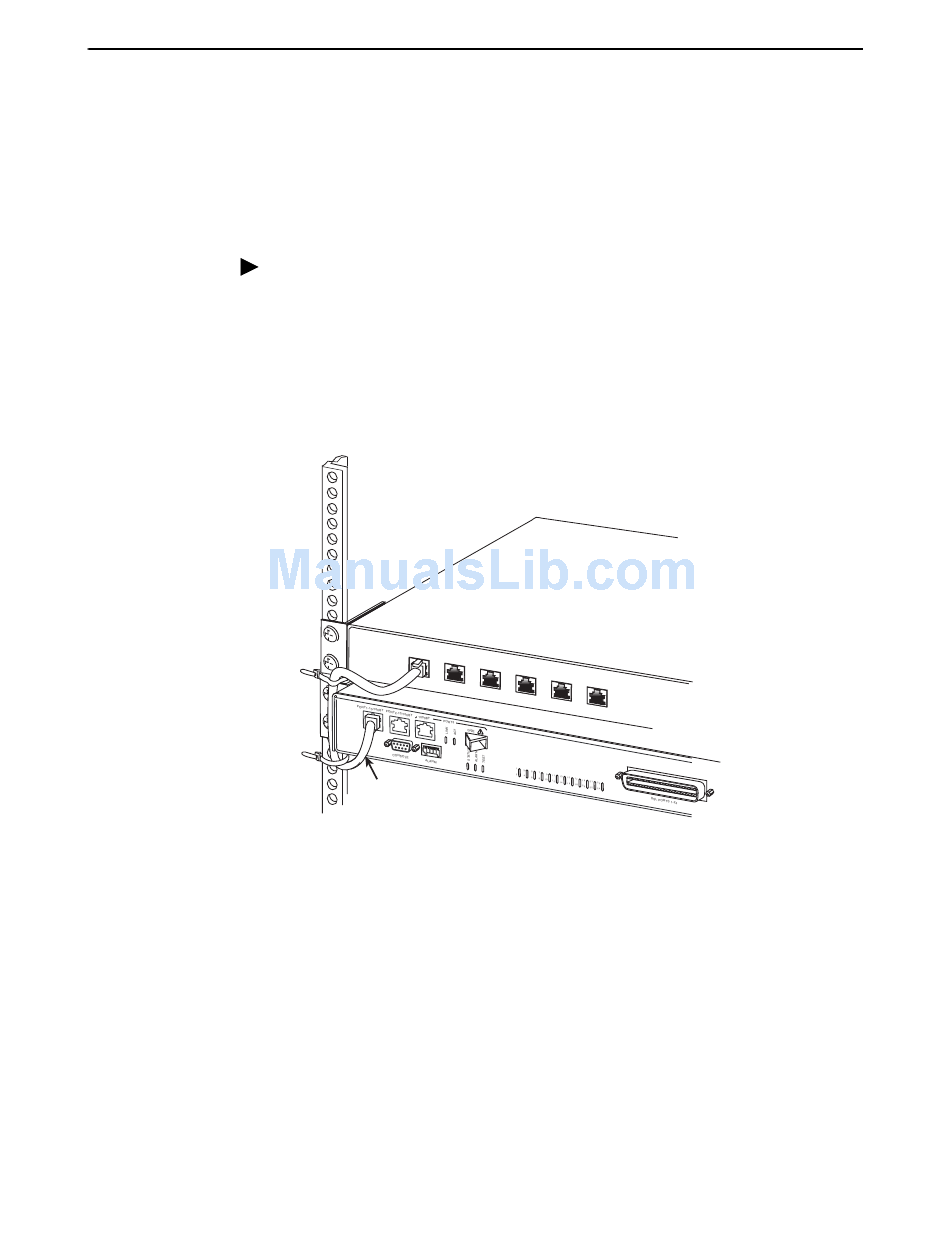

1. Connect an 8-position modular cable to Port 1.
2. If the BitStorm 2600 is in a rack, fasten the cable to a rail with a cable tie.
3. Connect the other end of the cable to your Ethernet switch or a network
interface card in a PC.
Port 1
April 2005
Ethernet Switch
2. Cabling
04-17521
2-7
