1. Installation

Installing the BitStorm 2600 Into a Rack

Two types of mounting screws are provided. Use:
Procedure
To install the BitStorm 2600 into a rack:
1-8
#10-32 mounting screws for rails with threaded screw holes
#12-24 mounting screws and self-retaining nuts for rails with unthreaded
screw holes

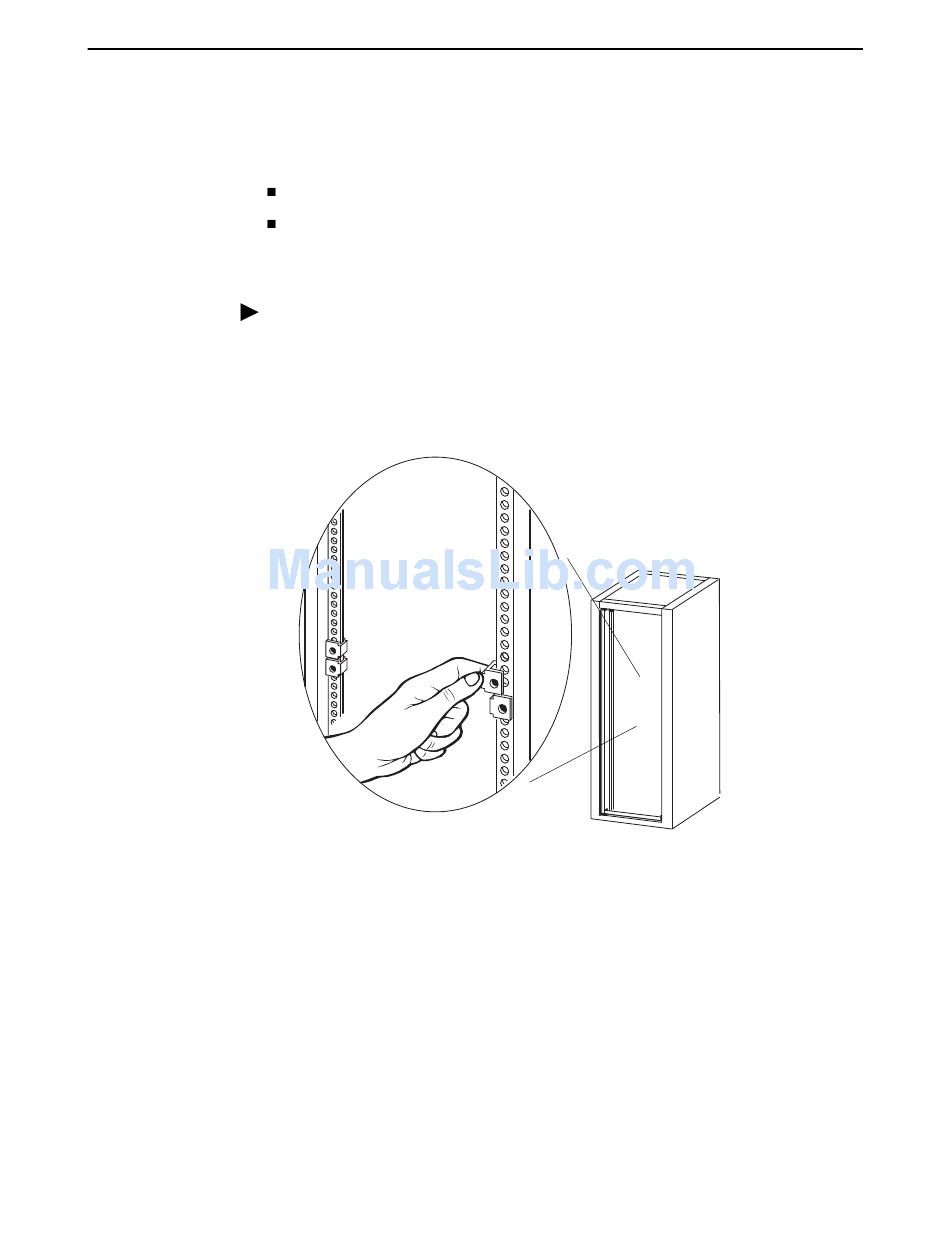

1. Determine where in the rack you will mount the BitStorm 2600. If your rack
does not have threaded screw holes, slip self-retaining nuts onto the rails
where the BitStorm 2600 will be fastened.
2. Place the unit so that the brackets rest against the front of the rails. Insert
screws in the bottom screw positions and hand-tighten them.
April 2005
02-17070
2600-A2-GN20-50
