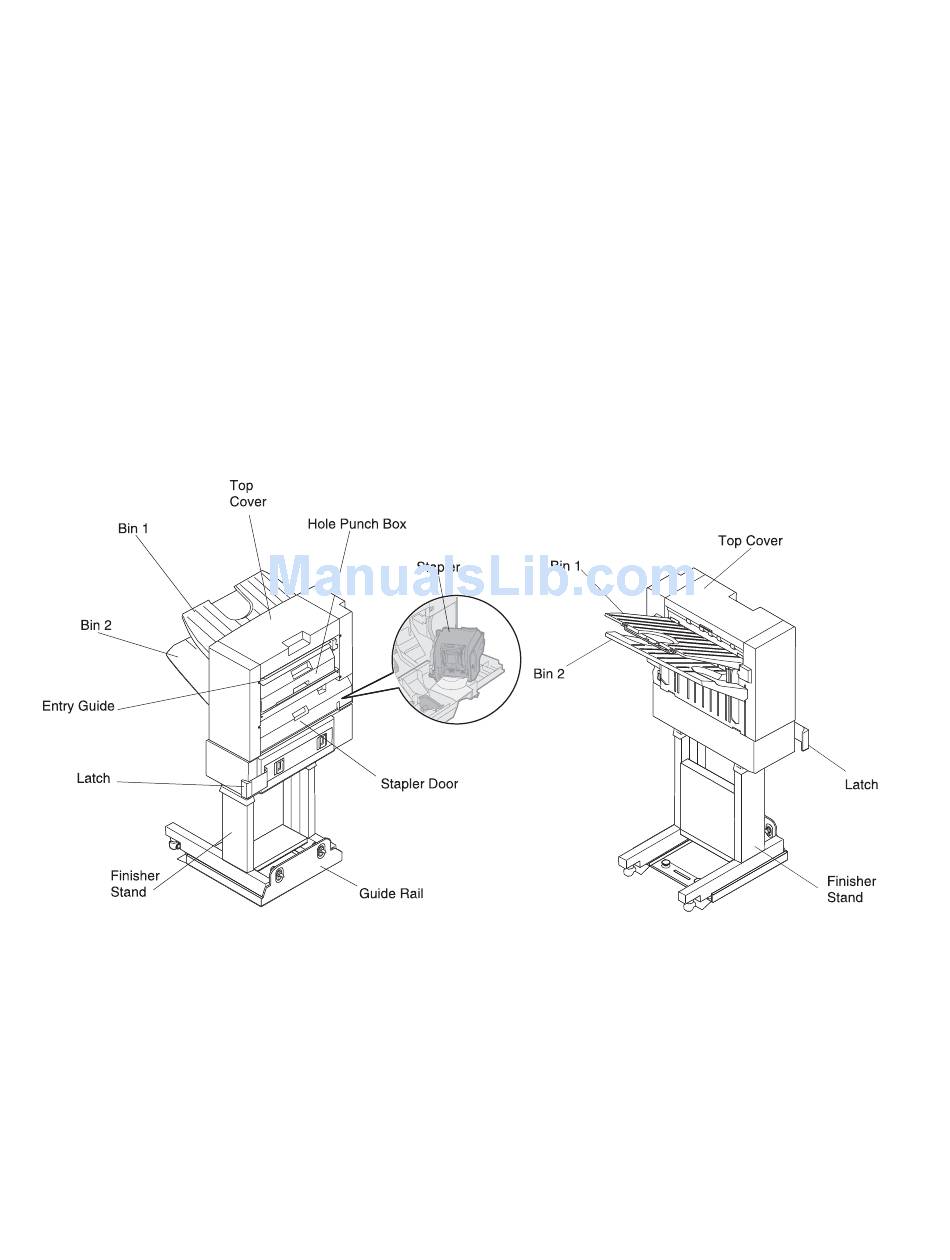

Finisher

The finisher communicates with the host engine through serial interface signals and performs the following
operating modes:
•
Straight–exits paper to the upper tray.
•
Punch and straight–stops paper at the leading edge, punches it, and exits it to the upper tray.
•
Invert–sends paper to the accumulator, and exits it to the lower tray.
•
Punch and invert–stops paper at the leading edge, punches it, and sends it to the accumulator where it
exits to the lower tray.
•
Invert and staple–jogs each sheet of paper in the accumulator. When the accumulated number of sheets
reaches a designated number, it staples a batch of sheets, and then exits the stapled set to the lower tray.
•
Punch, invert and staple–stops paper at the leading edge, punches it, sends it to the accumulator and
jogs each sheet. When the accumulated number of sheets reaches a designated number, the batch is
stapled, and exited to the lower tray.
•
Invert and offset–jogs each sheet in the accumulator, shifts it by the offset, then exits it to the lower tray.
•
Punch, invert and offset–stops paper at the leading edge, punches it, sends it to accumulator and jogs
each page, offsets it, and then exits it to the lower tray.
Note: Capacity is up to 100 sheets of 20 lb paper in tray 1 (top tray), and up to 1000 sheets of 20 lb paper in
tray 2 (lower tray).
