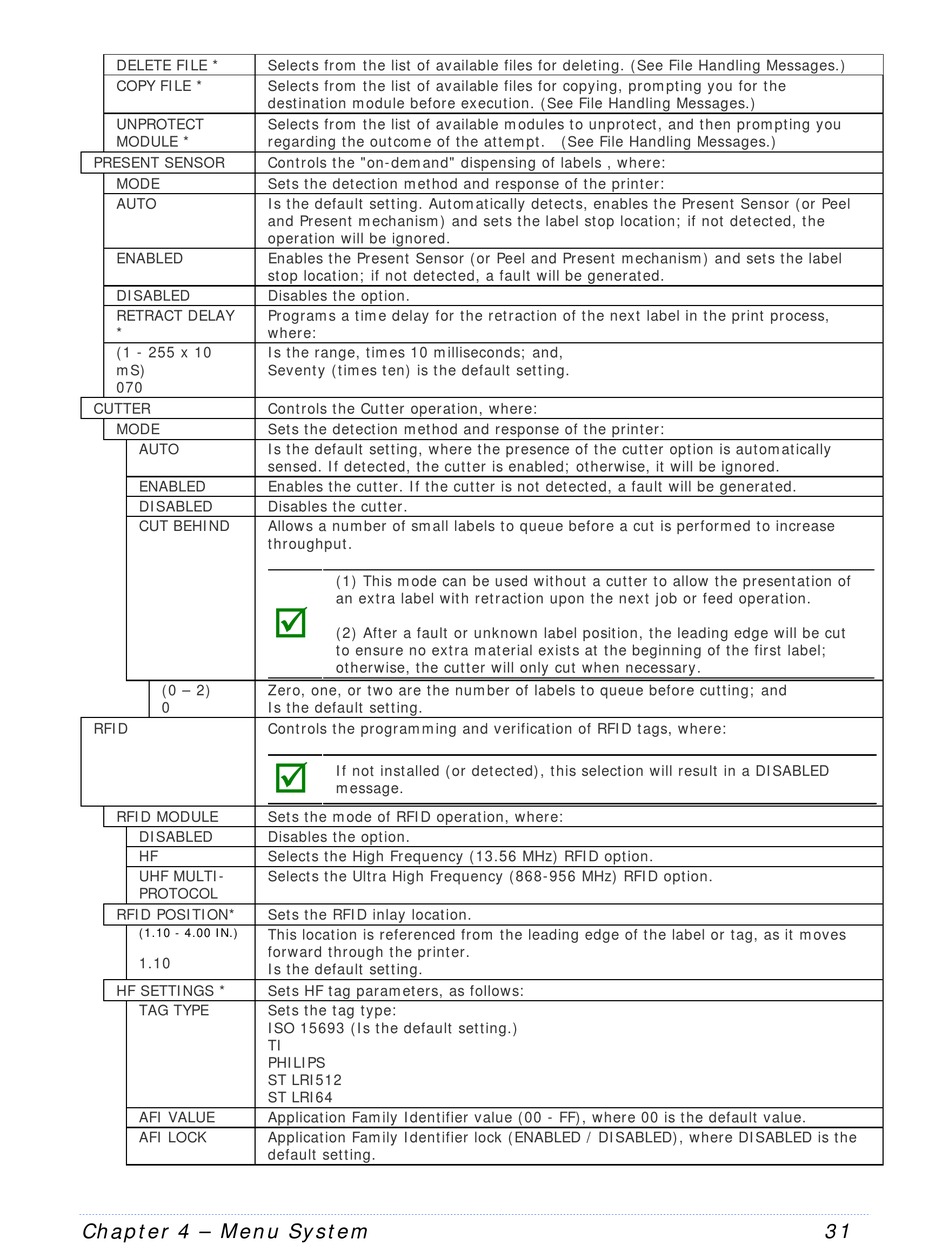

Datamax M-class Mark II Operator's Manual page 37

DELETE FILE *
COPY FILE *
UNPROTECT
MODULE *
PRESENT SENSOR
MODE
AUTO
ENABLED
DISABLED
RETRACT DELAY
*
(1 - 255 x 10
mS)
070
CUTTER
MODE
AUTO
ENABLED
DISABLED
CUT BEHIND
(0 – 2)
0
RFID
RFID MODULE
DISABLED
HF
UHF MULTI-
PROTOCOL
RFID POSITION*
(1.10 - 4.00 IN.)
1.10
HF SETTINGS *
TAG TYPE
AFI VALUE
AFI LOCK
Chapter 4 – Menu System
Selects from the list of available files for deleting. (See File Handling Messages.)
Selects from the list of available files for copying, prompting you for the
destination module before execution. (See File Handling Messages.)
Selects from the list of available modules to unprotect, and then prompting you
regarding the outcome of the attempt.
Controls the "on-demand" dispensing of labels , where:
Sets the detection method and response of the printer:
Is the default setting. Automatically detects, enables the Present Sensor (or Peel
and Present mechanism) and sets the label stop location; if not detected, the
operation will be ignored.
Enables the Present Sensor (or Peel and Present mechanism) and sets the label
stop location; if not detected, a fault will be generated.
Disables the option.
Programs a time delay for the retraction of the next label in the print process,
where:
Is the range, times 10 milliseconds; and,
Seventy (times ten) is the default setting.
Controls the Cutter operation, where:
Sets the detection method and response of the printer:
Is the default setting, where the presence of the cutter option is automatically
sensed. If detected, the cutter is enabled; otherwise, it will be ignored.
Enables the cutter. If the cutter is not detected, a fault will be generated.
Disables the cutter.
Allows a number of small labels to queue before a cut is performed to increase
throughput.
(1) This mode can be used without a cutter to allow the presentation of
an extra label with retraction upon the next job or feed operation.
(2) After a fault or unknown label position, the leading edge will be cut
to ensure no extra material exists at the beginning of the first label;
otherwise, the cutter will only cut when necessary.
Zero, one, or two are the number of labels to queue before cutting; and
Is the default setting.
Controls the programming and verification of RFID tags, where:
If not installed (or detected), this selection will result in a DISABLED
message.
Sets the mode of RFID operation, where:
Disables the option.
Selects the High Frequency (13.56 MHz) RFID option.
Selects the Ultra High Frequency (868-956 MHz) RFID option.
Sets the RFID inlay location.
This location is referenced from the leading edge of the label or tag, as it moves
forward through the printer.
Is the default setting.
Sets HF tag parameters, as follows:
Sets the tag type:
ISO 15693 (Is the default setting.)
TI
PHILIPS
ST LRI512
ST LRI64
Application Family Identifier value (00 - FF), where 00 is the default value.
Application Family Identifier lock (ENABLED / DISABLED), where DISABLED is the
default setting.
(See File Handling Messages.)
