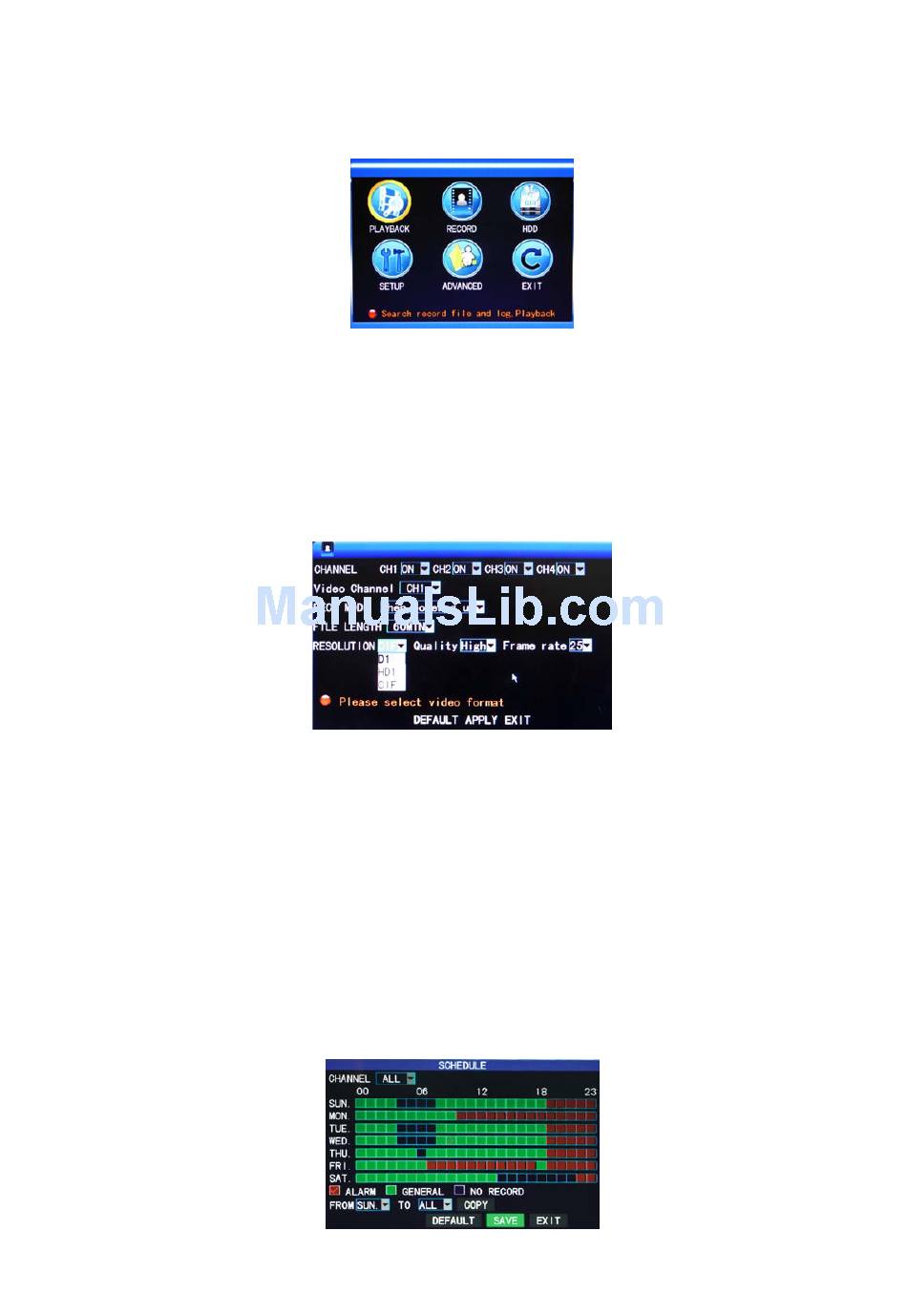

Chapter 3 Advanced settings
3.1 Main menu
The main menu has the "PLAYBACK", "RECORD", "HDD", "BASIC", "ADVANCED" and "Exit" options, as shown below:
Note: The setup of all the submenus below will not be effective until "Enter" is pressed. The setup of this menu will be invalid if you
exit directly. A significant characteristic of this product is when you move the cursor to any option, the prompting message of this
3.2 Recording mode
Enter the Recording Mode screen from "Main Menu"—"Recor", as shown below:
Channel: used to select if the video recording function is enabled for the corresponding recording channel.
RESOLUTION: available in the 3 levels of D1（704*576）, HD1（704*288）and CIF（352*288）(Note: This option is available
for 4-channel DVR only, and the resolution of 8-channel DVR is CIF by default .)
QUALITY: available in the 3 levels of high, normal and low, corresponding to the 3 data stream standards of high, normal and low
bit rates.
REC.MODE: available in the two modes of startup recording and timing recording.
When powered up: starting recording when this unit is energized (It works only if the corresponding channel is enabled in the
"Channel" option.)
BY TIME: performing recording as scheduled. When "timing recording" is selected, the "Record Time Configuration" button will
appear on the right. Move the cursor here and press "Enter" to enter the Record Time Configuration screen, as shown below:
Channel: You may choose either "All" or a single channel.
option will be displayed automatically in the lower part of the screen.
10
