For more detailed mobile phone installation and user manual, please refer to the Mobile Phone User Manual in the CD
3.7.5 System maintenance

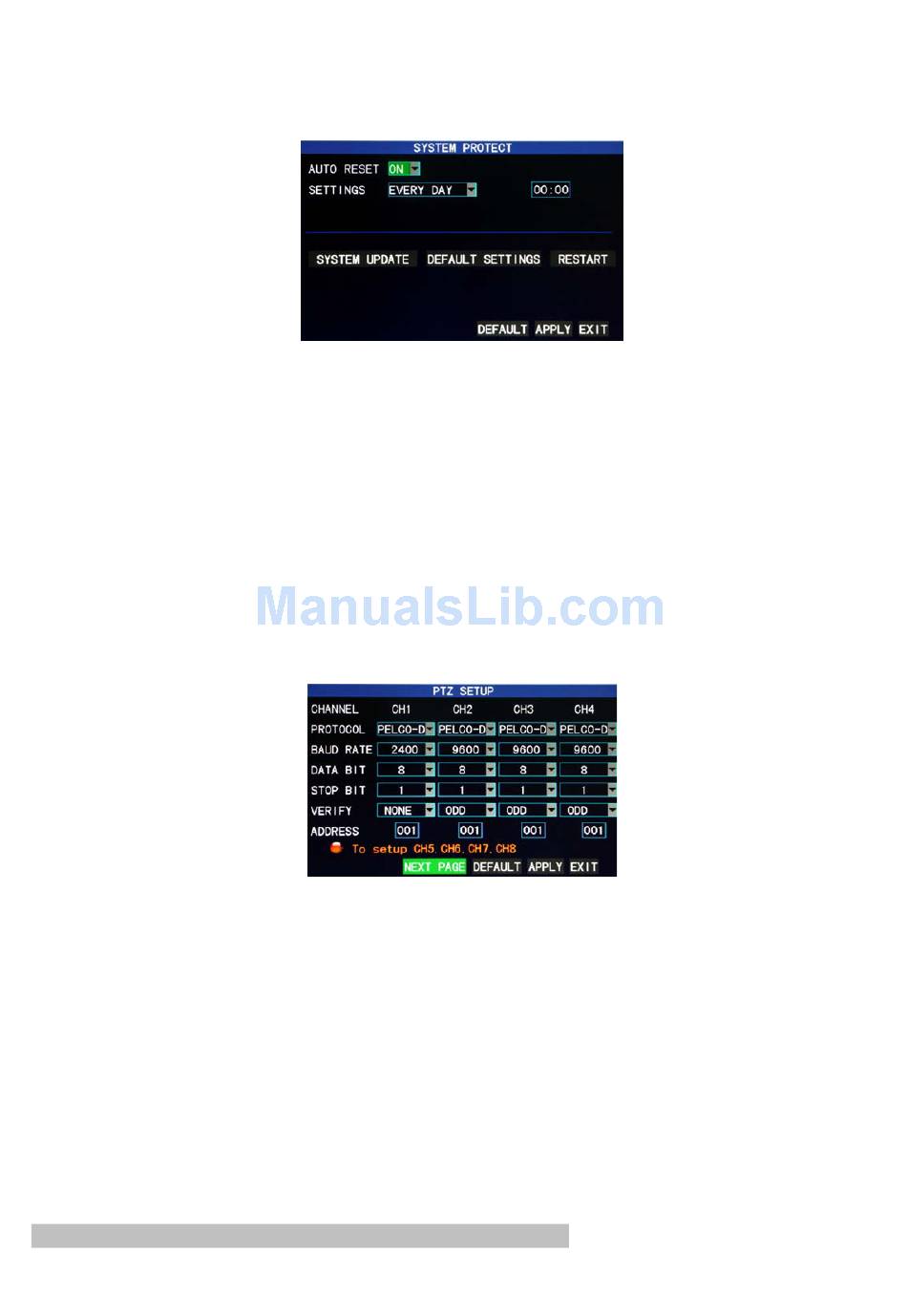

Enter the "System Maintenance" screen from "Main Menu" →"Advanced Functions", as shown below:
AUTO RESET: When this option is set to "On", the user can set the restart frequency and time of this device himself/herself.
System update: Copy the update file to the root directory of the U-disk, then insert the U-disk into the USB slot of this unit, and
"Enter" this button for system updating. The screen will display the progress box of system updating until updating is completed.
The power system should not be interrupted during updating.
DEFAULT SETTING: Restore the system parameters to the default settings.
RESTART : Restart this DVR.
3.7.6 PTZ
Enter the "PTZ" screen from "Main Menu" →"Advanced", as shown below:
Channel: selecting the channel to which the dome camera is connected (to select any of the latter 4 channels, click "Next Page")
Protocol: selecting the dome protocol of the corresponding brand and model, with two options, Pelco-D by default
Baud rate: selecting the baud rate used by the dome, with the 4 options of 1200, 2400, 4800 and 9600
Data bit: with the options of 5, 6, 7 and 8, 8 by default
Stop bit: with the options of 1 and 2, 1 by default
VERIFY: with the 5 options of None/Odd/Even/Mark/Space, None by default
Address : Complete the PTZ code of the corresponding channel.
Just set "protocol", "baud rate" and "address code" in order to set the PTZ.
See "Shortcut Menu" →"PTZ Control" for PTZ control.
19
