Trunk Support - Invacare XLT Dynamic Manual

1a.
Tool: 4 mm Allen key
b.
Tool: 4 mm Allen key
2.
Tool: Screw driver
3.
INVACARE ® XLT

TRUNK SUPPORT

A
B
C
D
E
Tool: 5 mm Allen key
13 mm fixed spanner

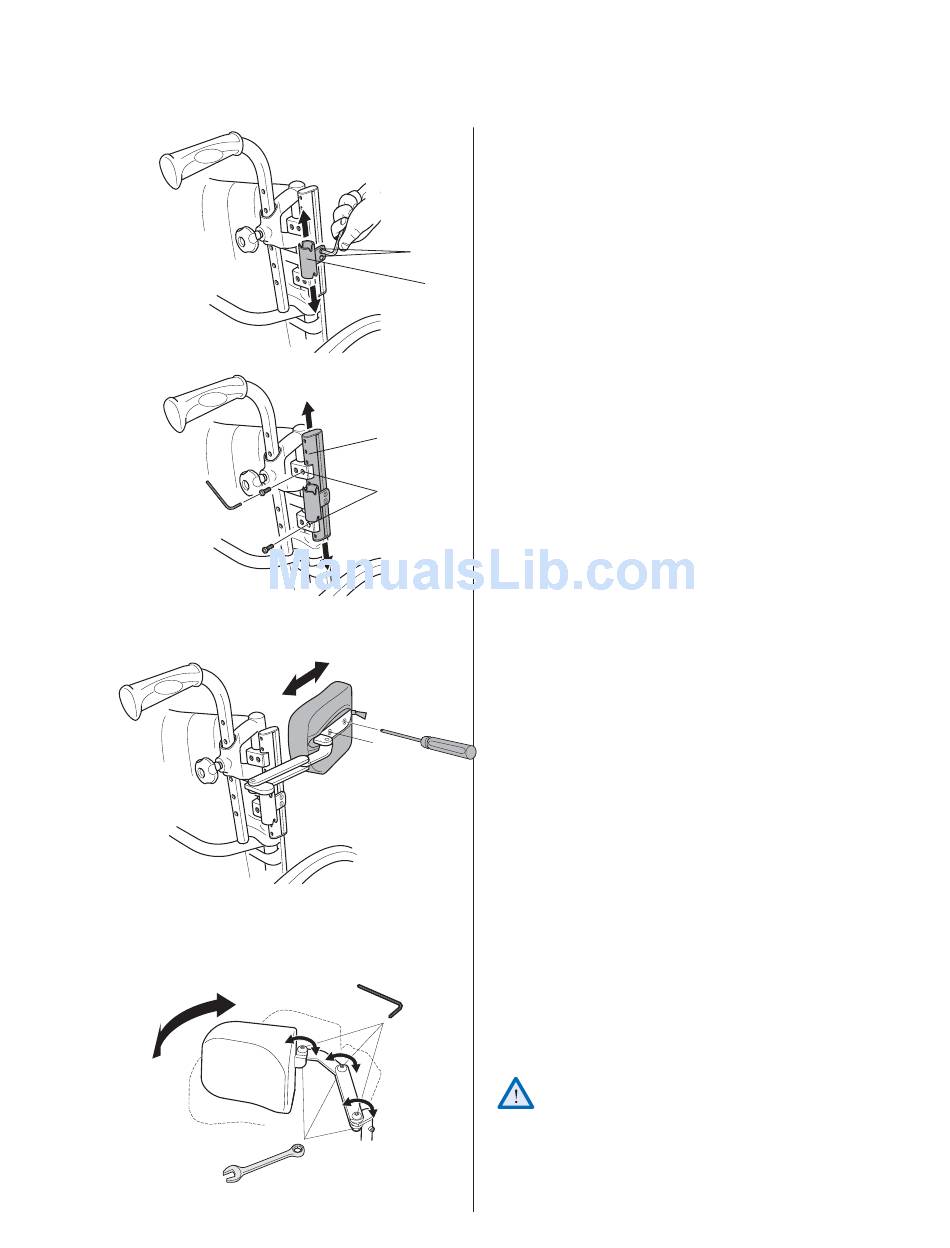

The trunk support can be swung away or lifted out of
its holder. The height, depth and sideways positions
are easy to adjust.
Height adjustment
1a. Adjust the height by first slackening the screws (A)
with an Allen key and then sliding the holder (B)
up or down to the required position. Re-tighten
screws.
b.The bracket (C) can also be adjusted up or down by
first removing the screws (D) on the attachments
with an Allen key. Move the bracket up or down
to the required position. Re-tighten screws.
2. Depth adjustment
Open the zip on the cover to reach screws (E)
and slacken with a screw driver. Adjust the trunk
support to the desired position. Re-tighten screws
and close the zip.
3. Angle adjustment
Remove the cover on the arm of the trunk
support to reach the screws and nuts and slacken
them. Remember to secure tightly when the
desired position has been achieved.
Be careful not to catch your thumb between
the trunk support and the wheel when propell-
ing the chair.
35
