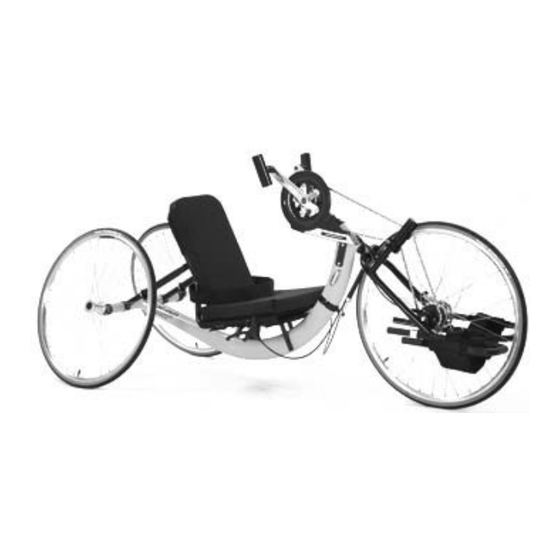

Invacare® Top End®
Recreation Handcycles
XLT
XLT Jr.
XLT PRO
Excelerator™
Li'l Excelerator
EN
User Manual
DEALER: This manual MUST be given to the user of the product.
USER: BEFORE using this product, read this manual and save for future reference.
For more information regarding Invacare products, parts and services; pl e ase visit www.invacare.com
