Seat - Invacare XLT Dynamic Manual

1.
Tools: 5 mm Allen Key
2.
1.
2.
INVACARE ® XLT
A

SEAT

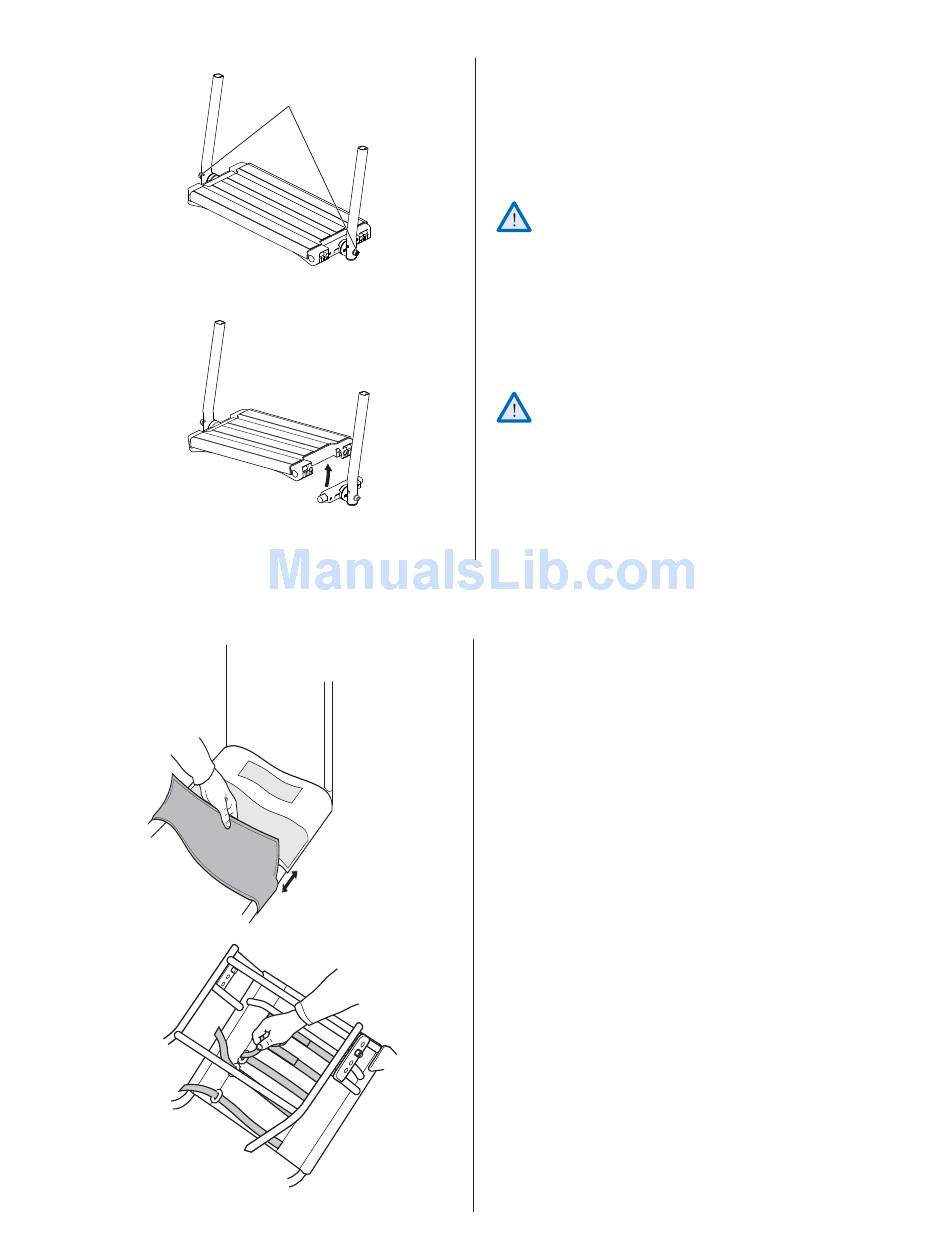

1. Footrest, one piece (XLT Swing)
Adjust the angle and the depth by loosening the
two screws (A) on the footplate attachment with
a 5 mm Allen key. Adjust the footplate to the cor-
rect position and retighten the screws.
Do not place anything on the footplate when
the screws have been loosened.
2. The footrest can be flipped up. Lift the left side of
the footrest upwards.
Be careful not to trap your fingers between
the footrest and the receiver when you fold
down the footrest.
1. Adjusting the seat depth
Lift up the front part, slide into required depth.
2. Adjusting the shape
(tension adjustable seat)
Use the straps underneath the seat to adjust the
shape of the seat. Always have a cushion on the
seat when testing its adjusted shape.
